Identificador: 247
Abierta
Descripción

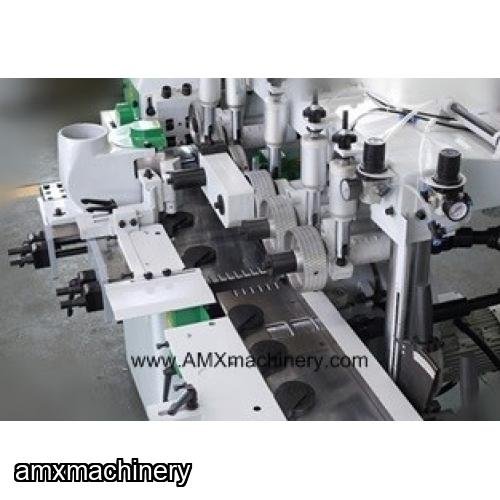

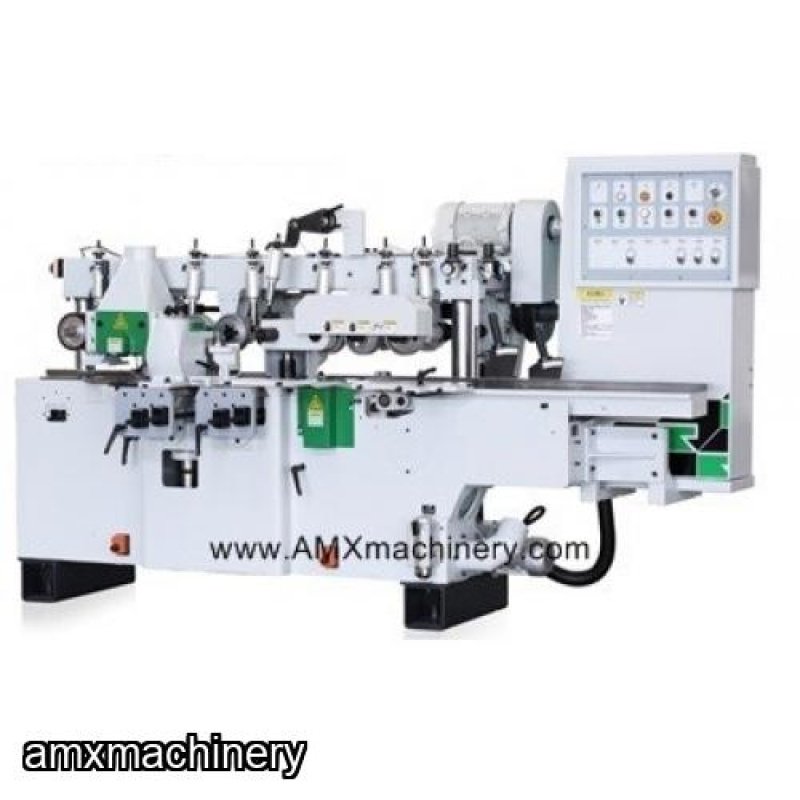

PARTE # 32RM-M413 – MOLDURADORA – 5” ANCHO – 4 CABEZALES
NUEVA CON GARANTIA
CARACTERISTICAS
220V/60HZ/3PH
1) 1st bottom spindle:3kW, Φ40mm, 6000 RPM – 4 HP
2) right spindle: 3kW, Φ40mm, 6000 RPM – 4 HP
3) left spindle: 4kW, Φ40mm, 6000 RPM – 5HP
4) top spindle: 4kW, Φ40mm, 6000 RPM – 5 HP
Feeding motor: 3Kw – 4 HP
Stepless variable feed speed 10-33m/min
Feed beam :0.75kW
Working width: 20-130mm
Working thickness: 8-100mm
Individual motor to each spindle to ensure maximum cutting(Standard)
Hard chrom treatment has been adopted for the durability of the work table surface(Standard)
Equip with short-piece gear box for the shortest length of 180mm
Lengthened-type side pressure roller at the infeed entrance for effectively prevent wood running deviation
Multi-section pneumatic adjustment is adopted to the conveying pressure system
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
TORNO DESENROLLADOR - ANCHO 100”
PARTE: 11721 - TORNO DESENROLLADOR - ANCHO 100”
2 - TORNO DE DESENROLLO DE 100 PULG (8 PIES) MARCA
WATARAY PARA DESENROLLO CHAPA 8 PIES DE LARGO Y DIAMETRO DE 10 A 40 PULGADAS
CON GROSOR DE DESENROLLO DE 1.0 MM A 4.5 MM CON CAPACIDAD DE PROCESO DE 15,000
PIES2 POR TURNO CON MOTOR DE 40 HP Y MOTOR PARA DIFERENTES MEDIDAS DE TROCERIA
Y POTENCIOMETRO CON CONTROL PARA OPERADOR CON 400 RPM MAXIMO.
AMXmachinery
TORNO GENINI - MINIAUTOMAT
PARTE # 10395 - TORNO GENINI - MINIAUTOMATUSADO - EN MUY BUENAS CONDICIONES DE OPERACIONTOTALMENTE AUTOMATICOTIENE 5 FUNCIONES DE CORTECAPACIDAD MAXIMA DE TRABAJO: HASTA 10 CMS DIAMETRO Y 15 CMS LARGOALIMENTADOR AUTOMATICOTIENE LUNETAS PARA DE 1 A 10 CM, 10 JUEGOS DE LUNETAS CON CAMPANA APROX.LA HERRAMIENTA INCLUIDA TINE UN VALOR SIMILAR AL DEL MISMO TORNOLA VELOCIDAD DE OPERACION PROMEDIO ES DE 4 A 5 PIEZAS/MINMOTOR 7.5 HP, 220V, 3 FASESTIENE MUCHA HERRAMIENTA PARA HACER 50 PIEZAS DIFERENTESMA...
AMXmachinery
PARTE: 12172 – TORNO COPIADOR - LOCATELLI BIG ARRIET
PARTE: 12172 – TORNO COPIADOR - LOCATELLI BIG ARRIET
USADO
– BUENAS CONDICIONESFully operationally
over
$9,000 in steady rests and tooling
max.
capacity 4" dia. x 6" length
Sequence
as follows;
roughing
knife
steady
rest
traveling
roughing knife
second
roughing pattern knife
finishing
pattern knife
parting
knife
Also
....if needed
end
boring bit or formed bit
second
end boring bit or formed knife with side sliding movementLocatelli Dime...
AMXmachinery
DESCORTEZADOR 27"
PARTE # 2SE-DR5-27 - DESCORTEZADORA - 27" CAPACIDADMaximum Log Diameter Barked 25”Minimum Log Length 9’Number of Debarking Tools 5Width of Debarking Tools 4”Maximum Ring Speed 133 rpmMinimum Horsepower to Operate Ring 60Maximum Log Feed Speed 221 fpmLog Feed with 15% Tool Overlap 188 fpmHydraulic Pumping Unit 10 hpAir Pressure Required 90 -100 psiMachine Weight 35,000 pounds
