Descripción

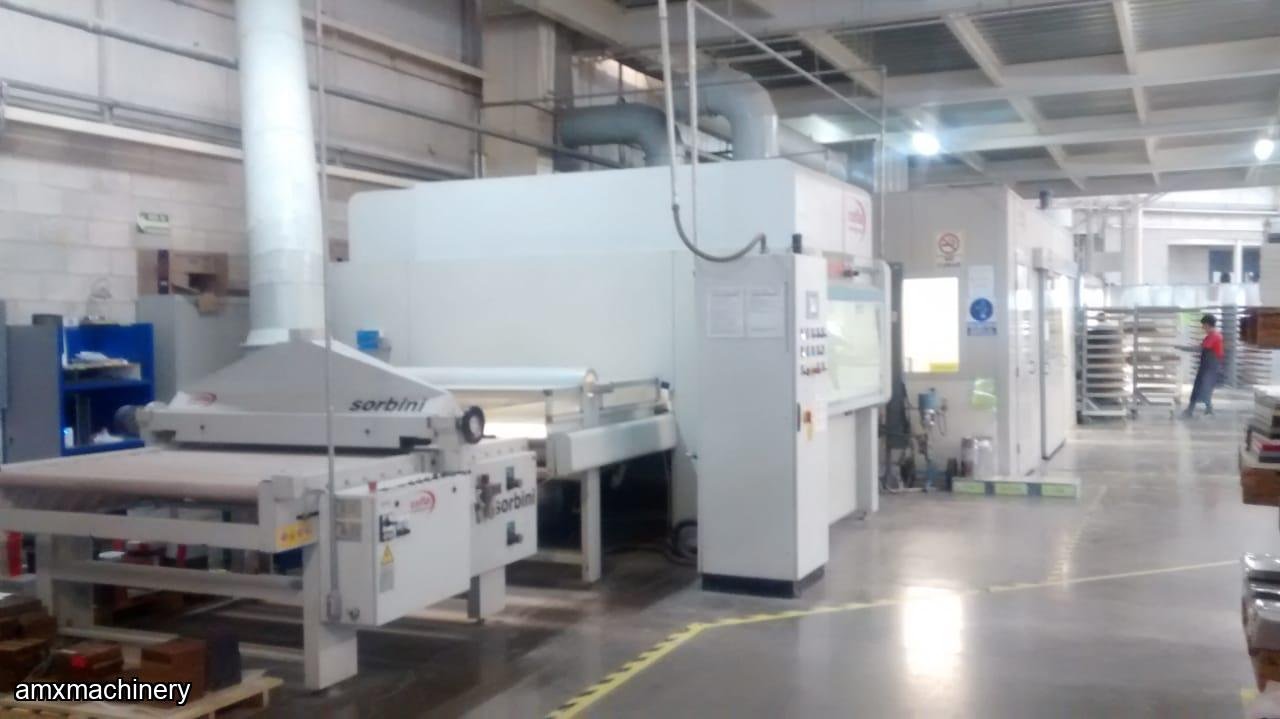

PARTE: 12000 - LINEA DE PINTURA - CEFLA
EN MUY BUENAS CONDICIONES
Para mas informacion contectenos
Components:

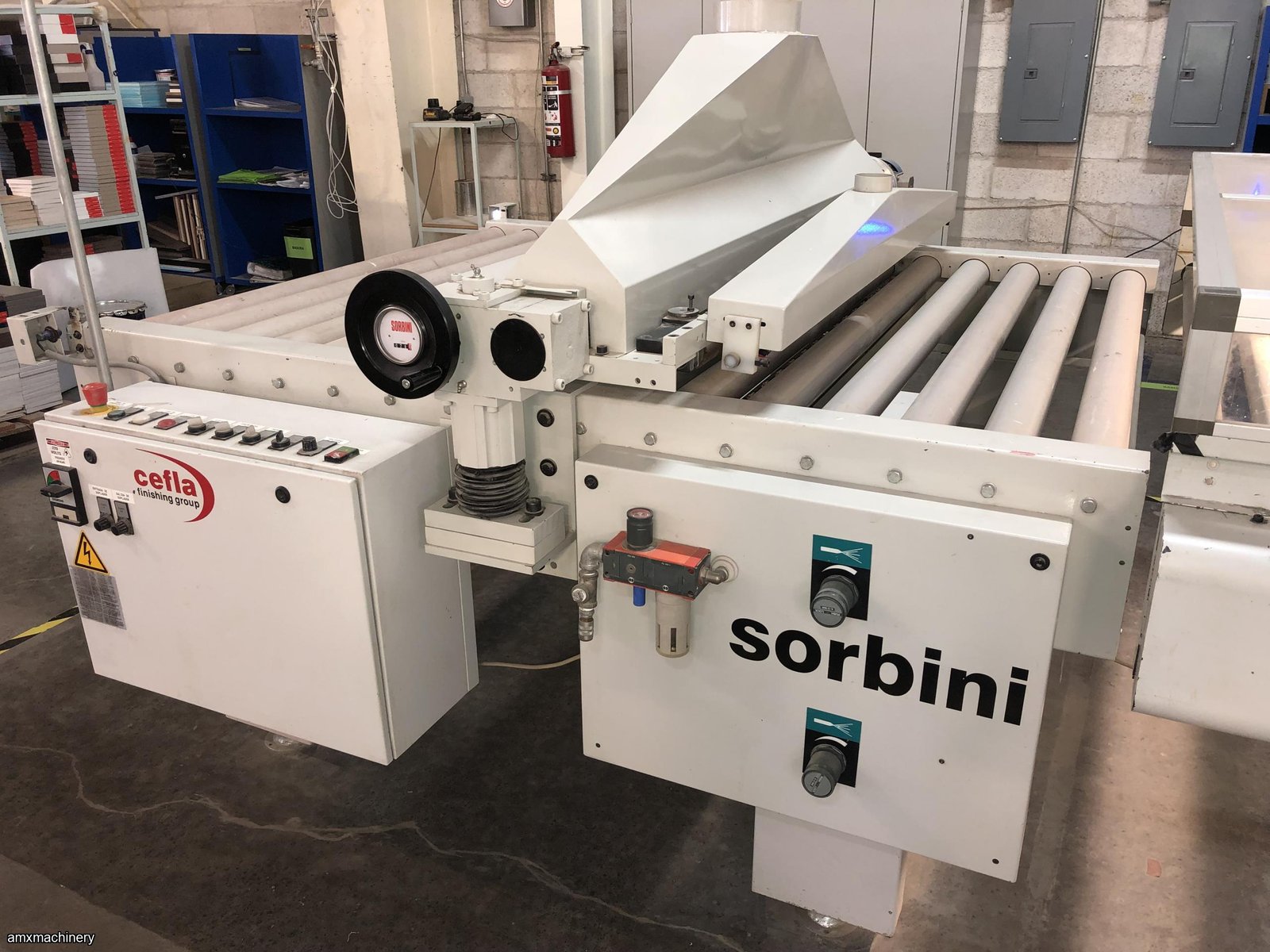

- Cefla Sorbini Infeed conveyor T/S-R-VS (2010) 220V 1.6KW

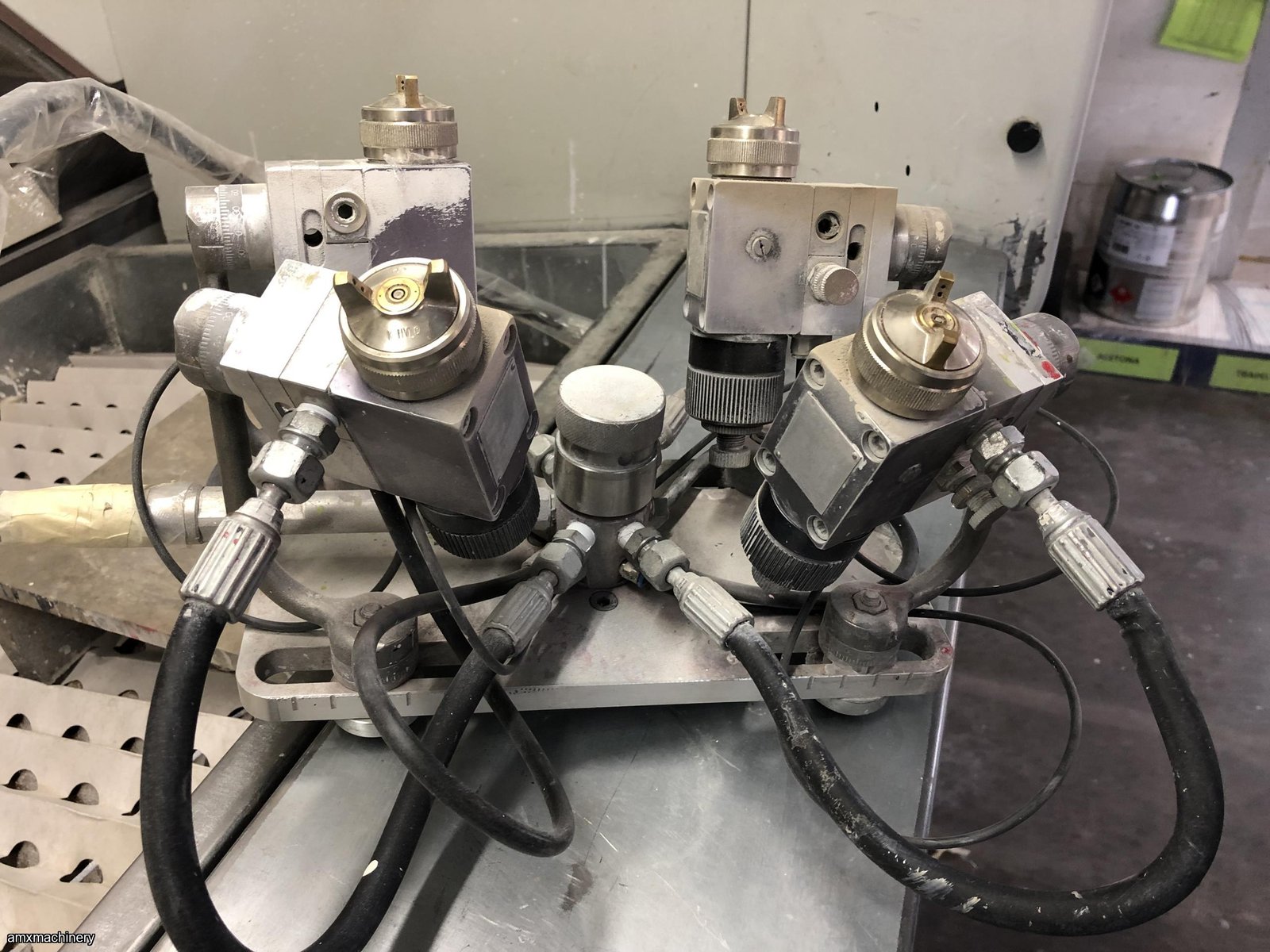

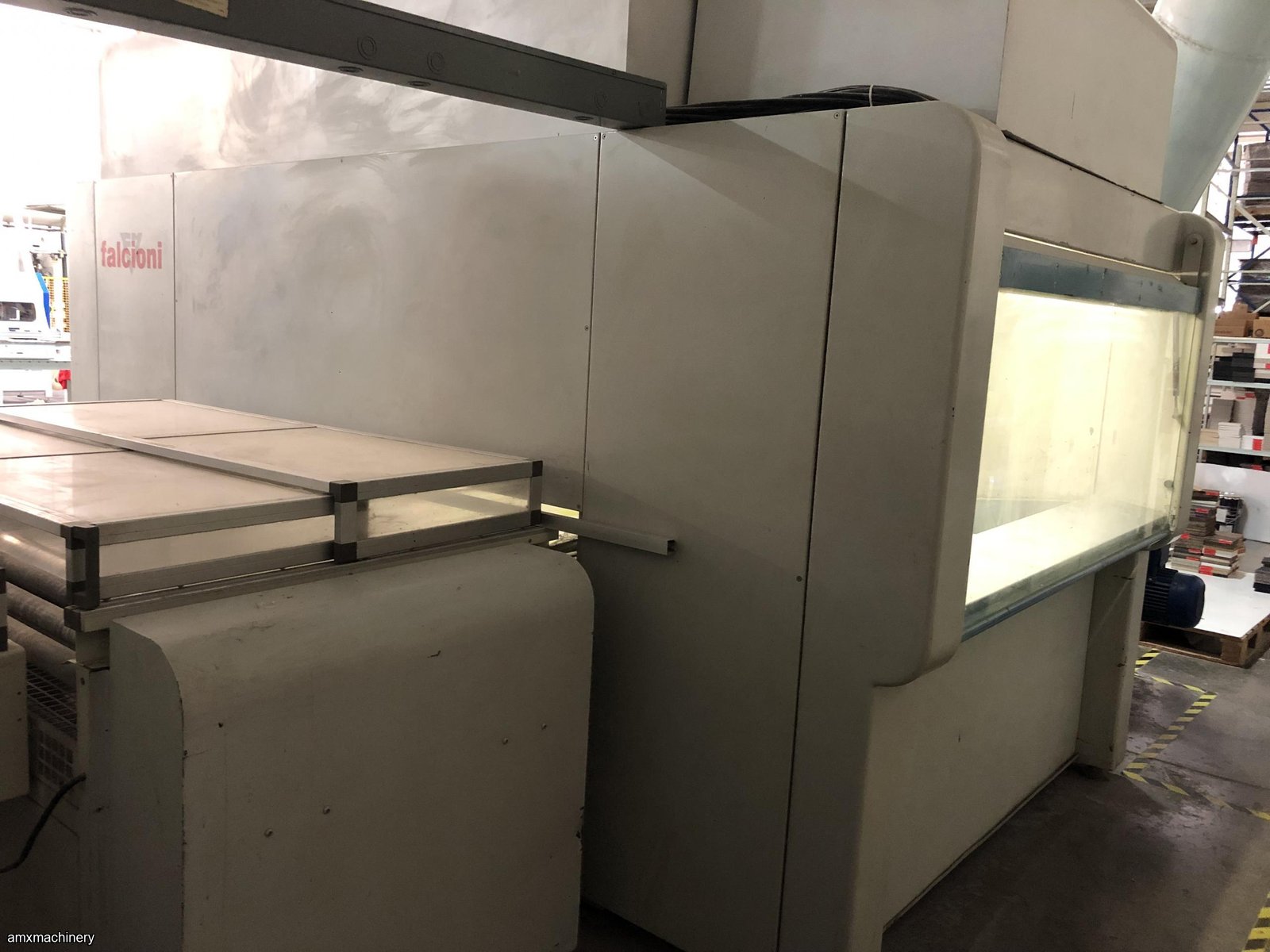

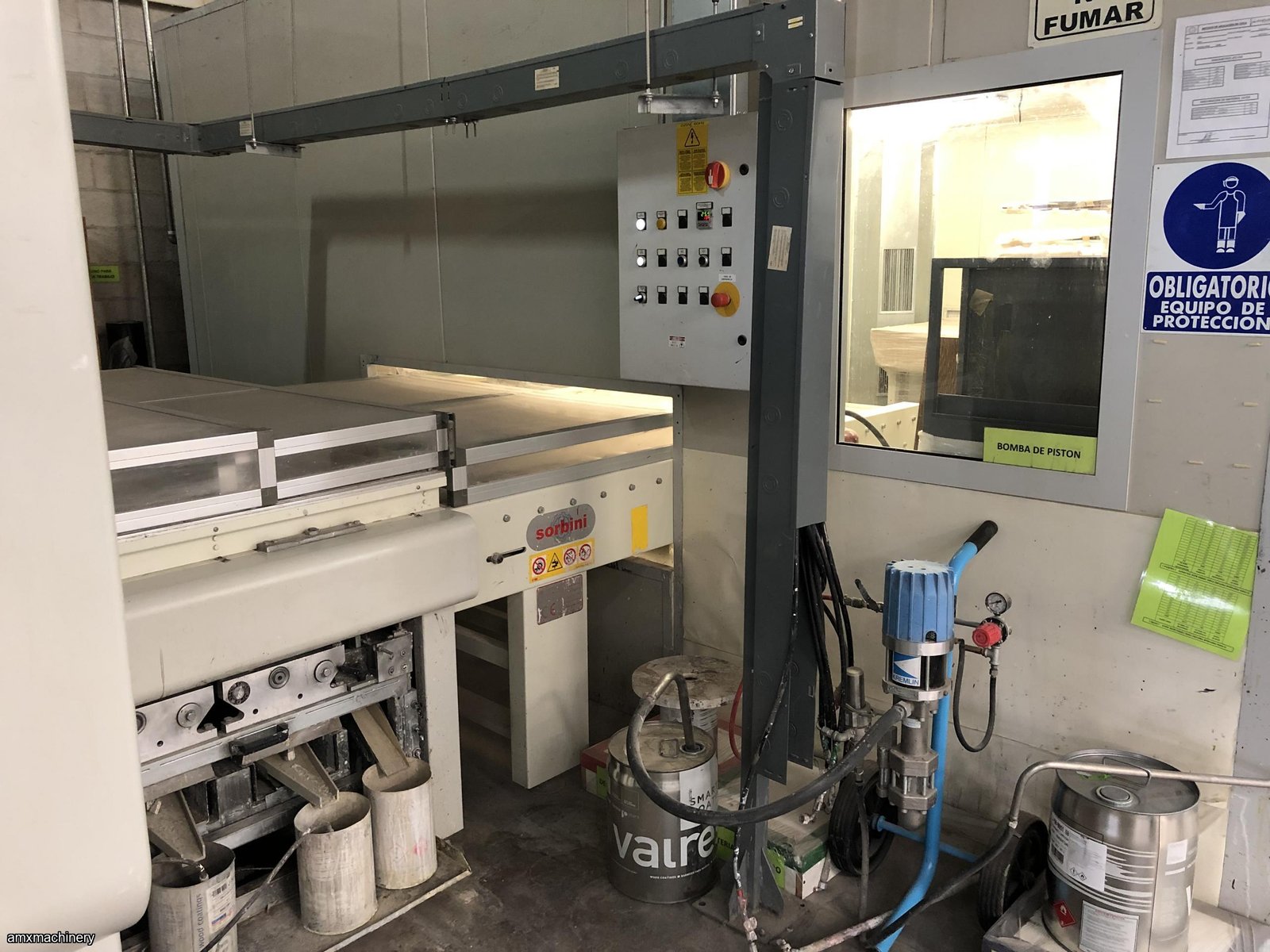

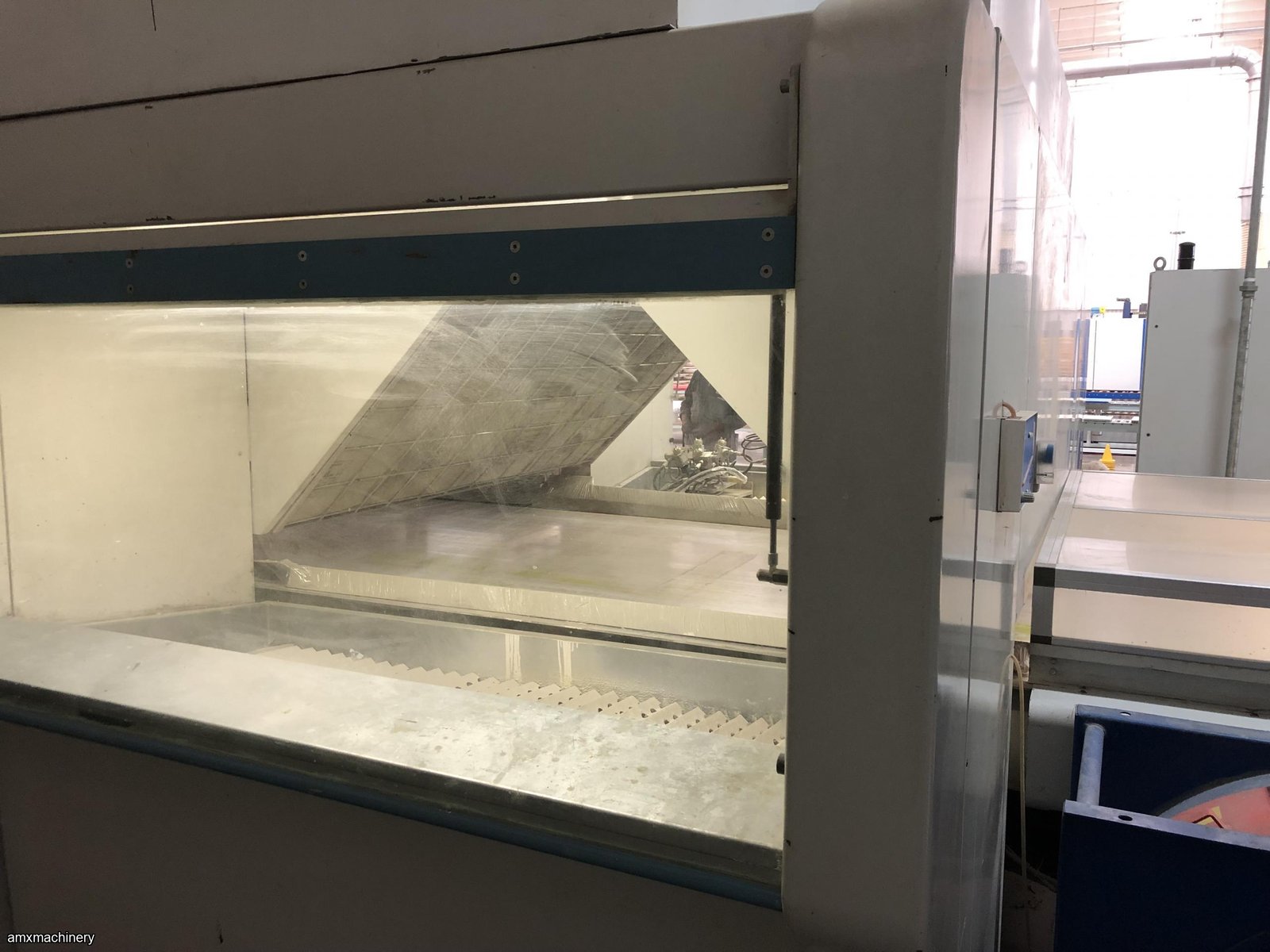

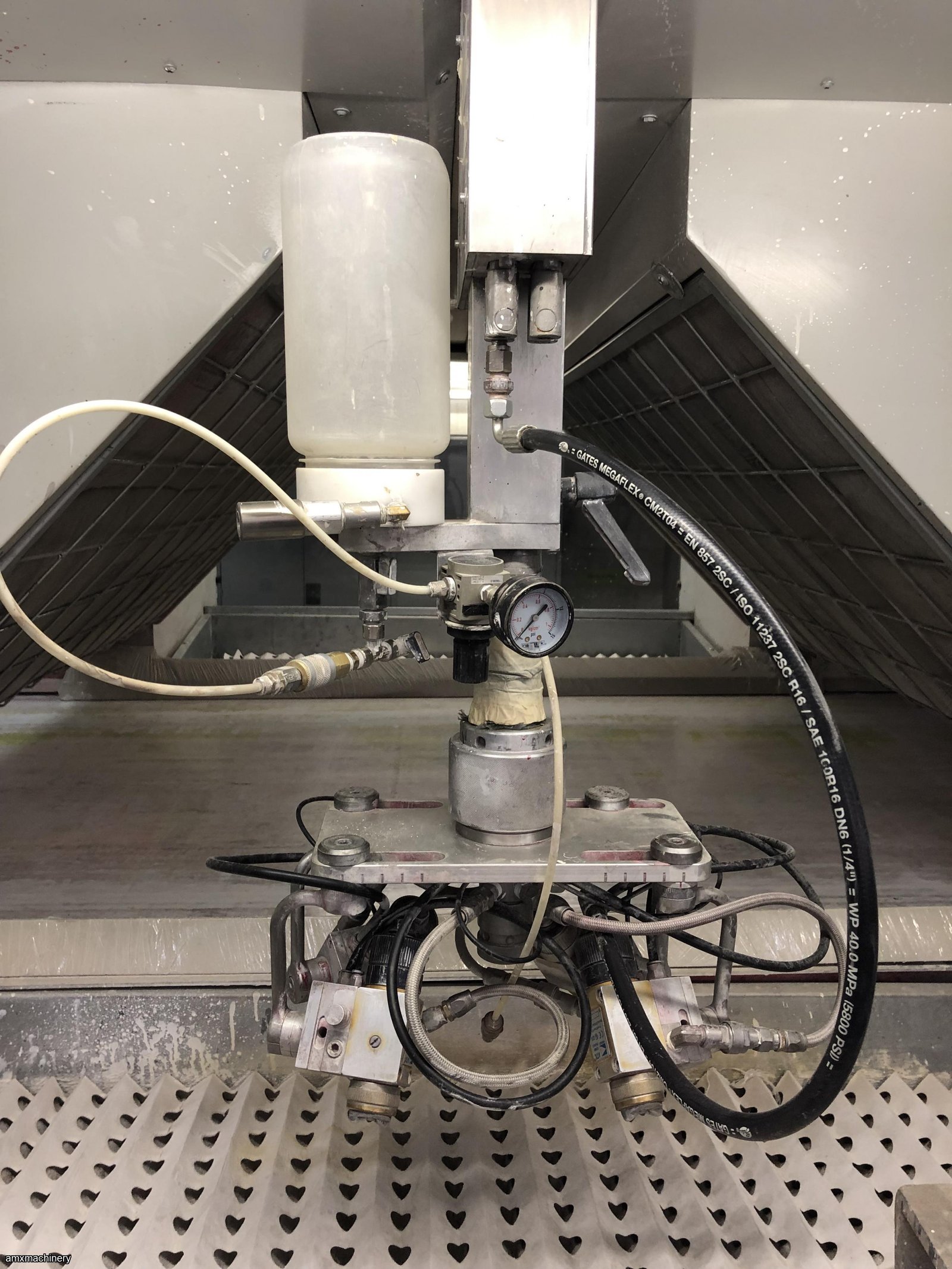

- Cefla Falcioni Unospray 1300 (2005) 220V 10.5KW
- Cefla Sorbini Outfeed conveyor (2005) 220V 0.4 KW 510Kg

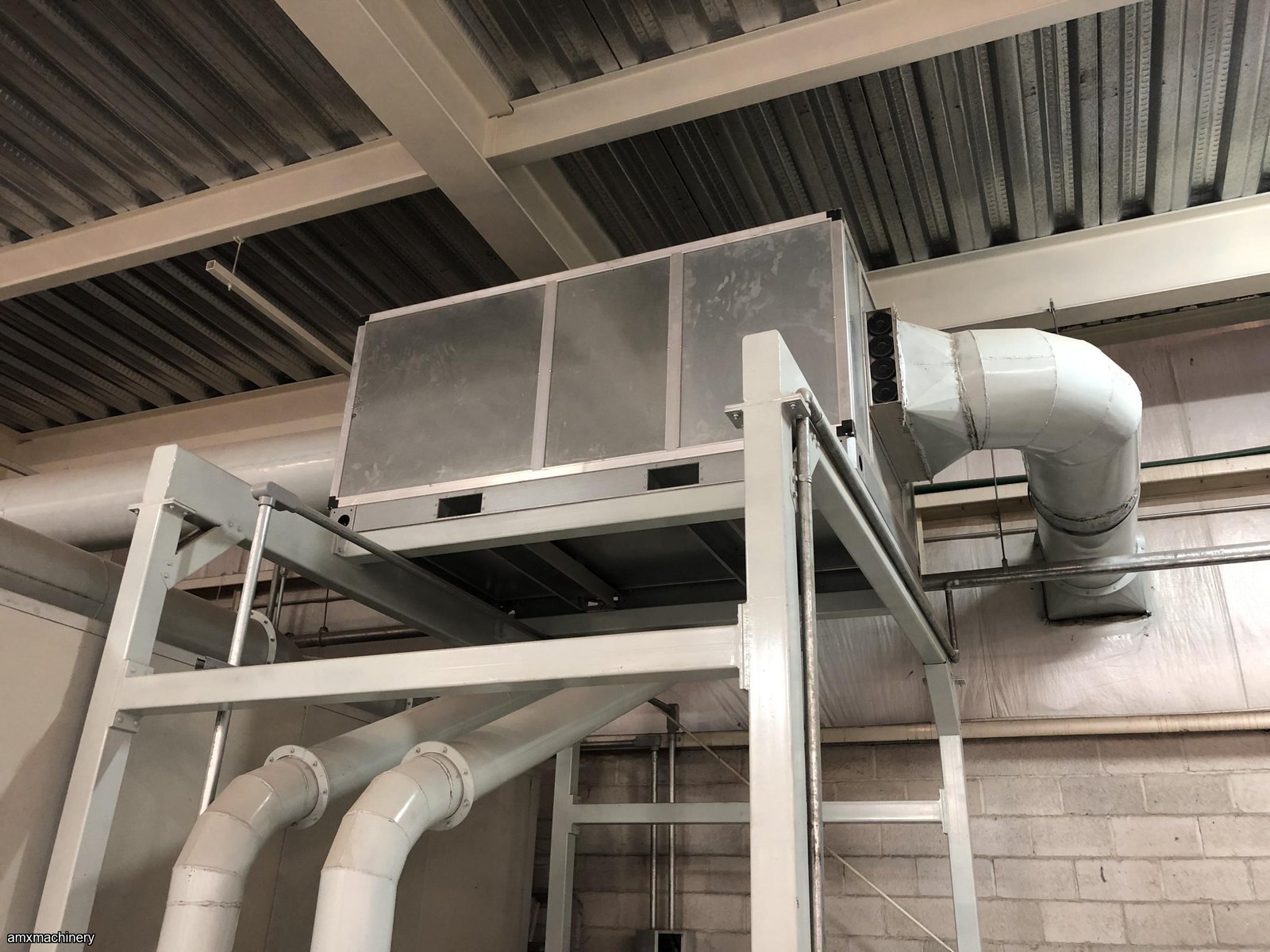

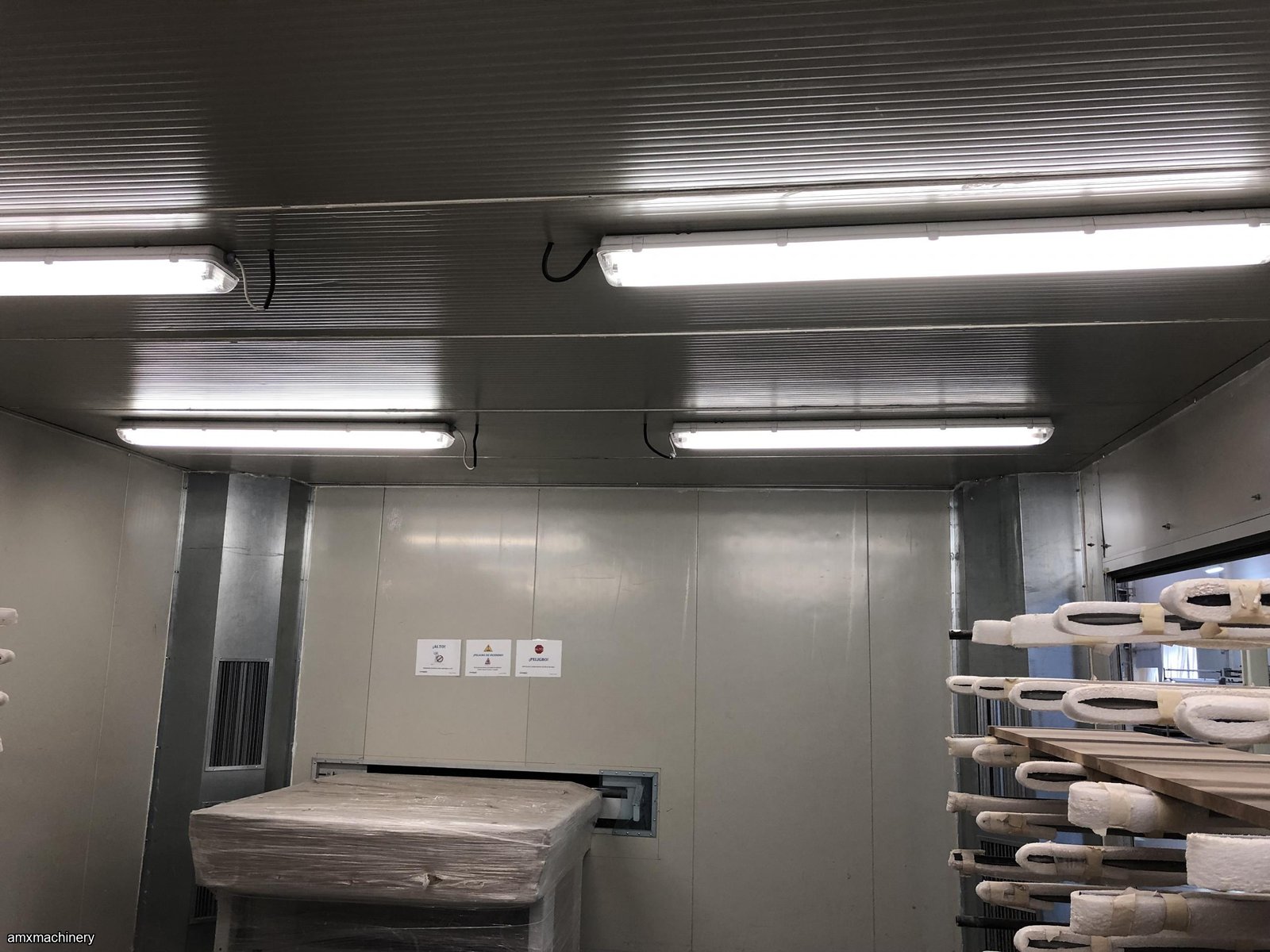

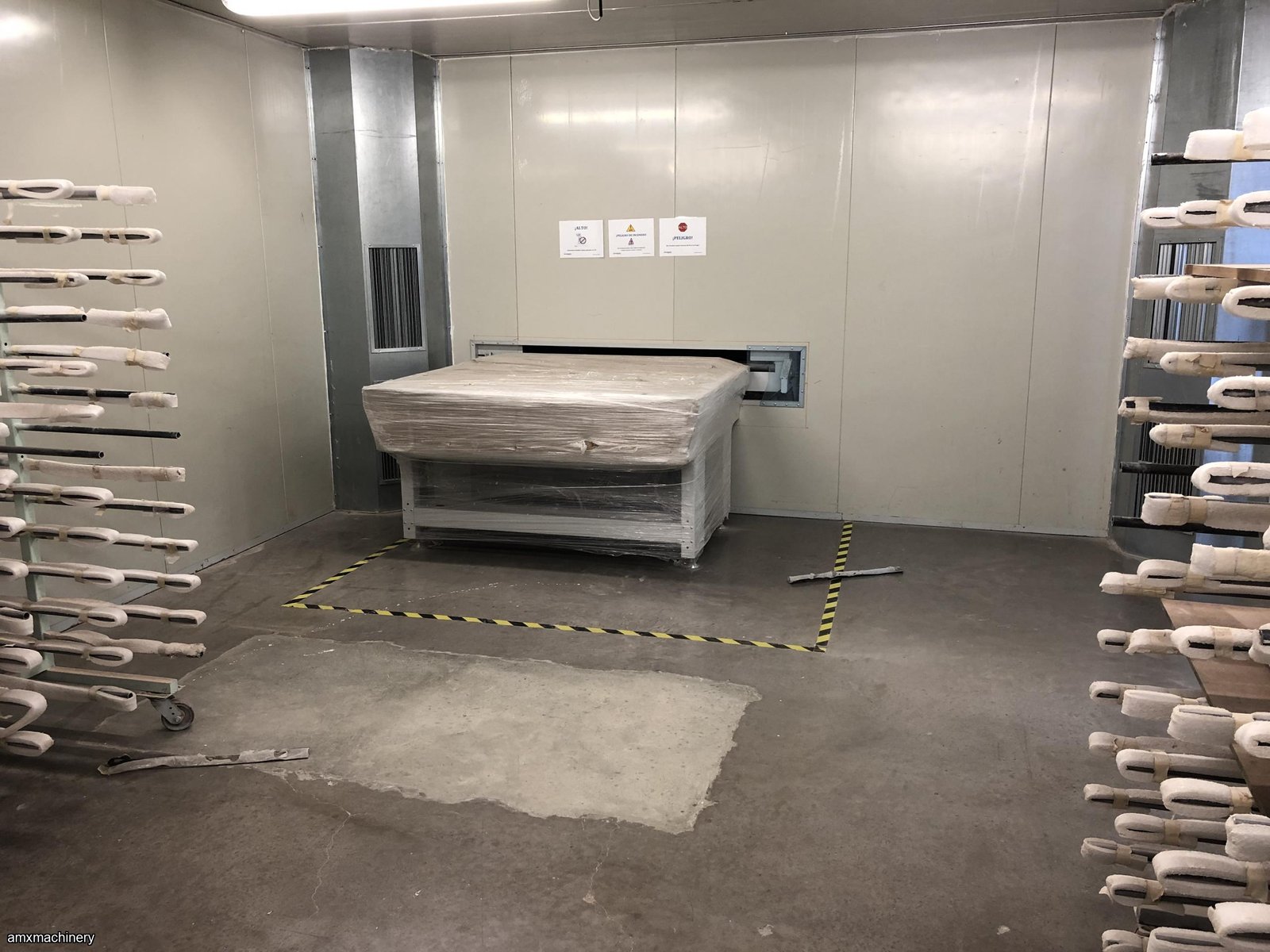

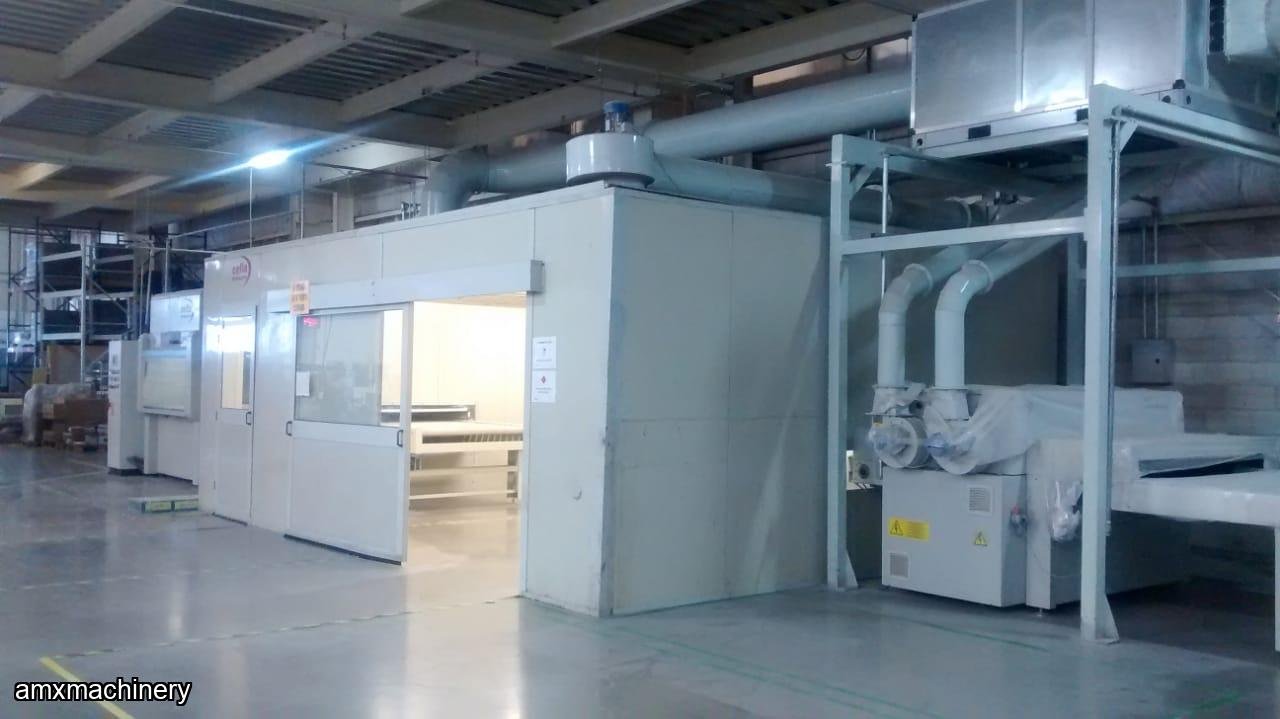

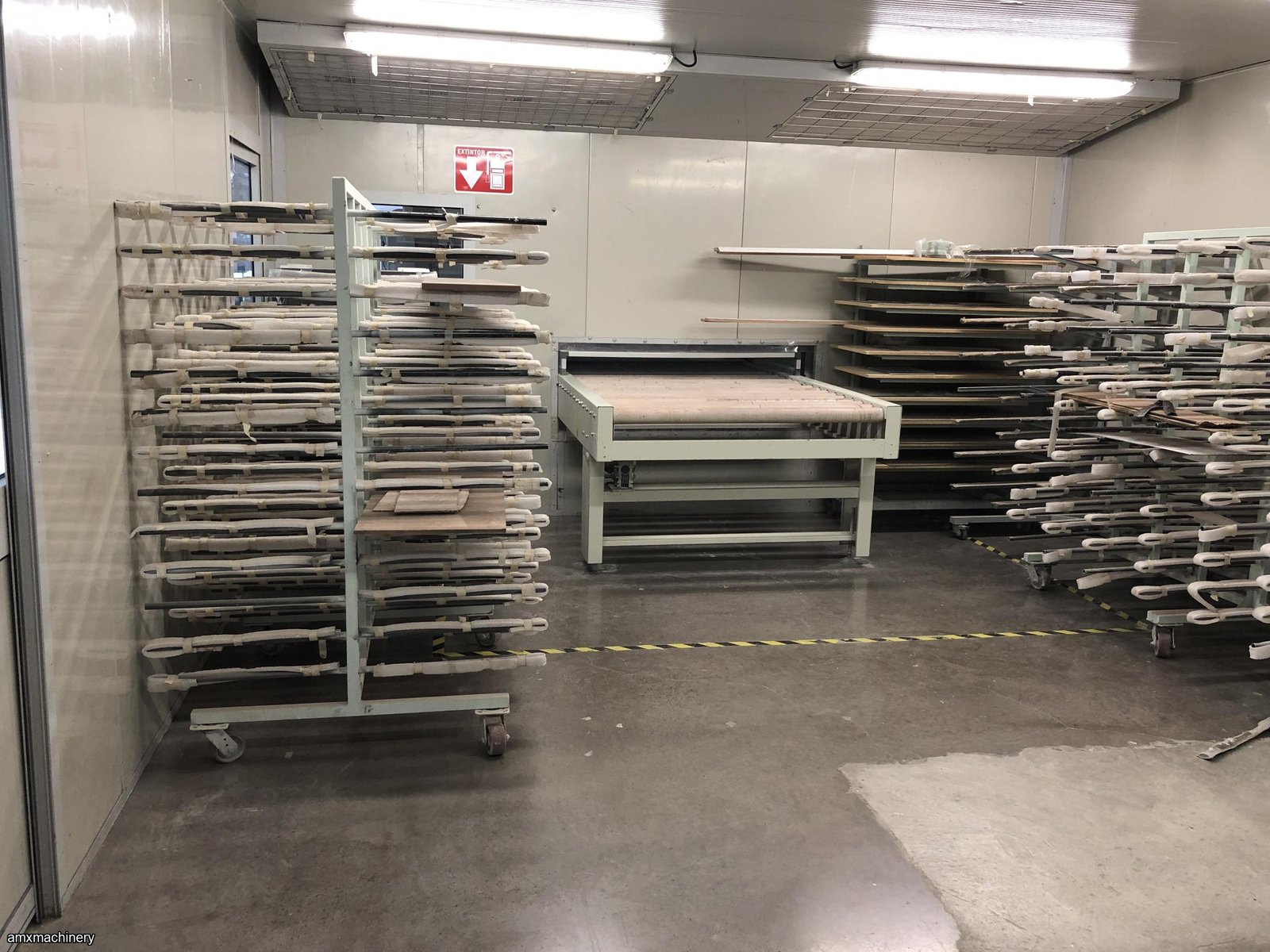

- Presurized Water Heated Spray Cabin LPS 50-70 (2010) 220V 6.2KW 5m x 7m

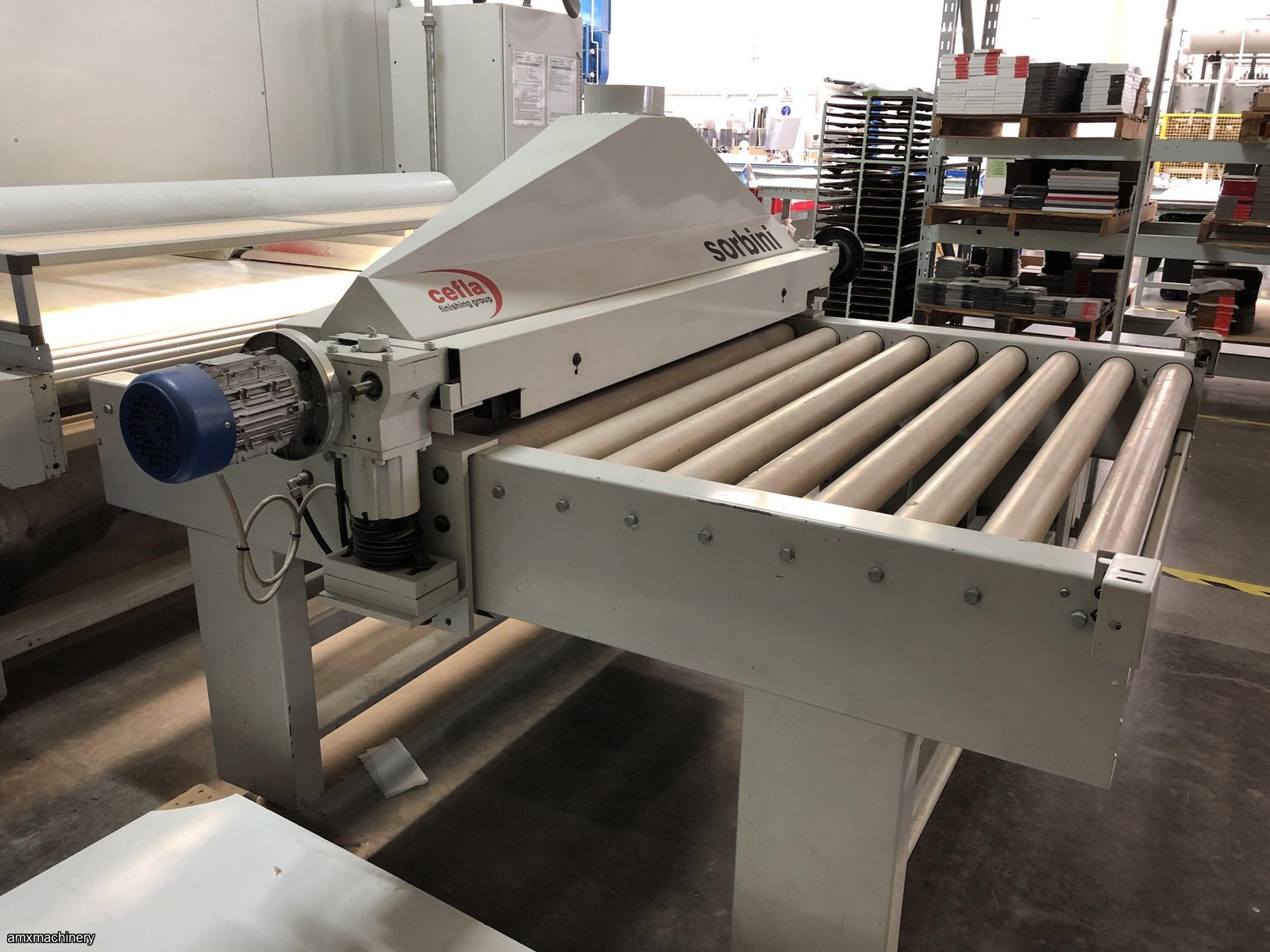

- Cefla Sorbini Infeed conveyor TB 1500 (2014) 460V 0.8KW

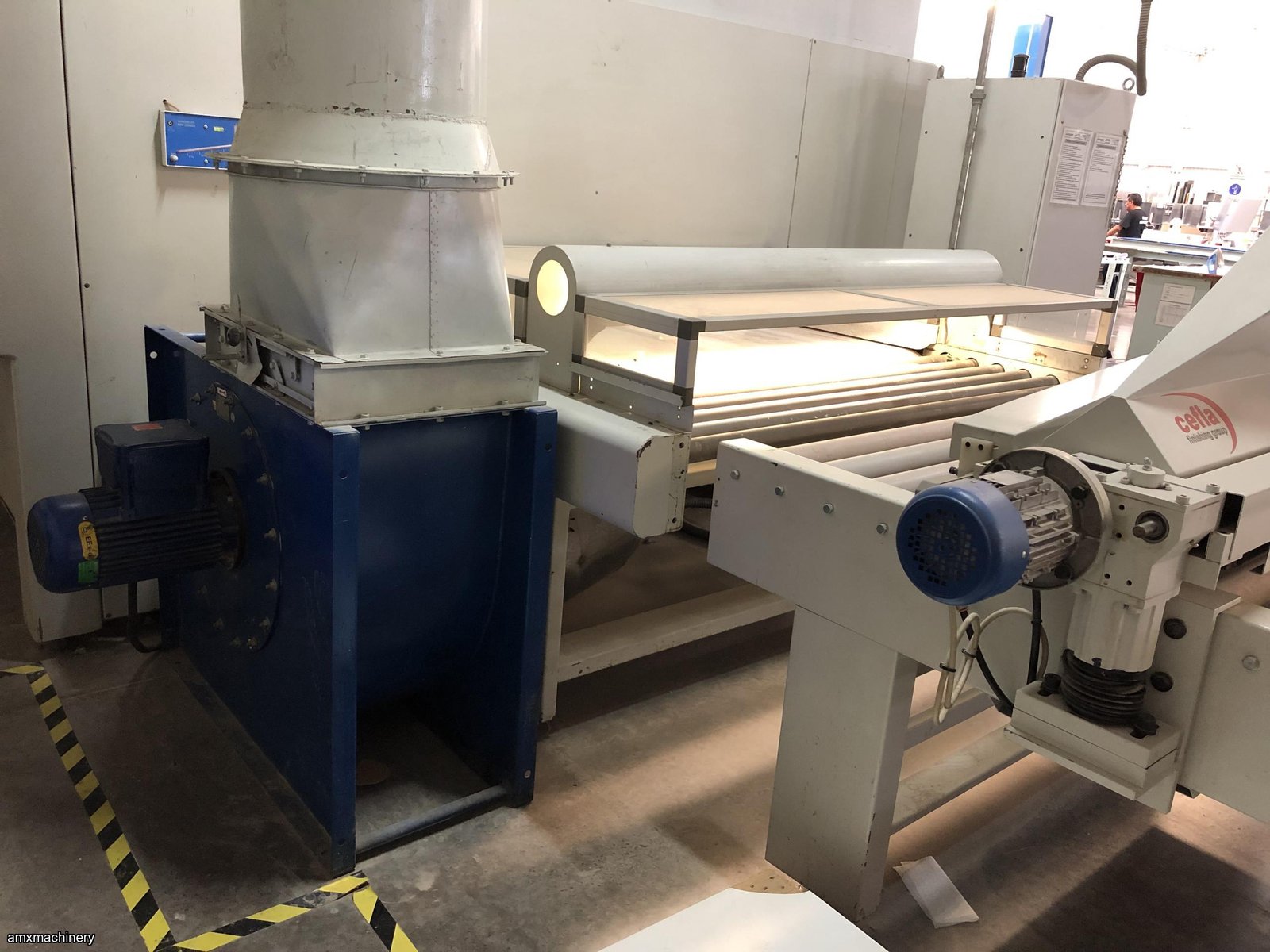

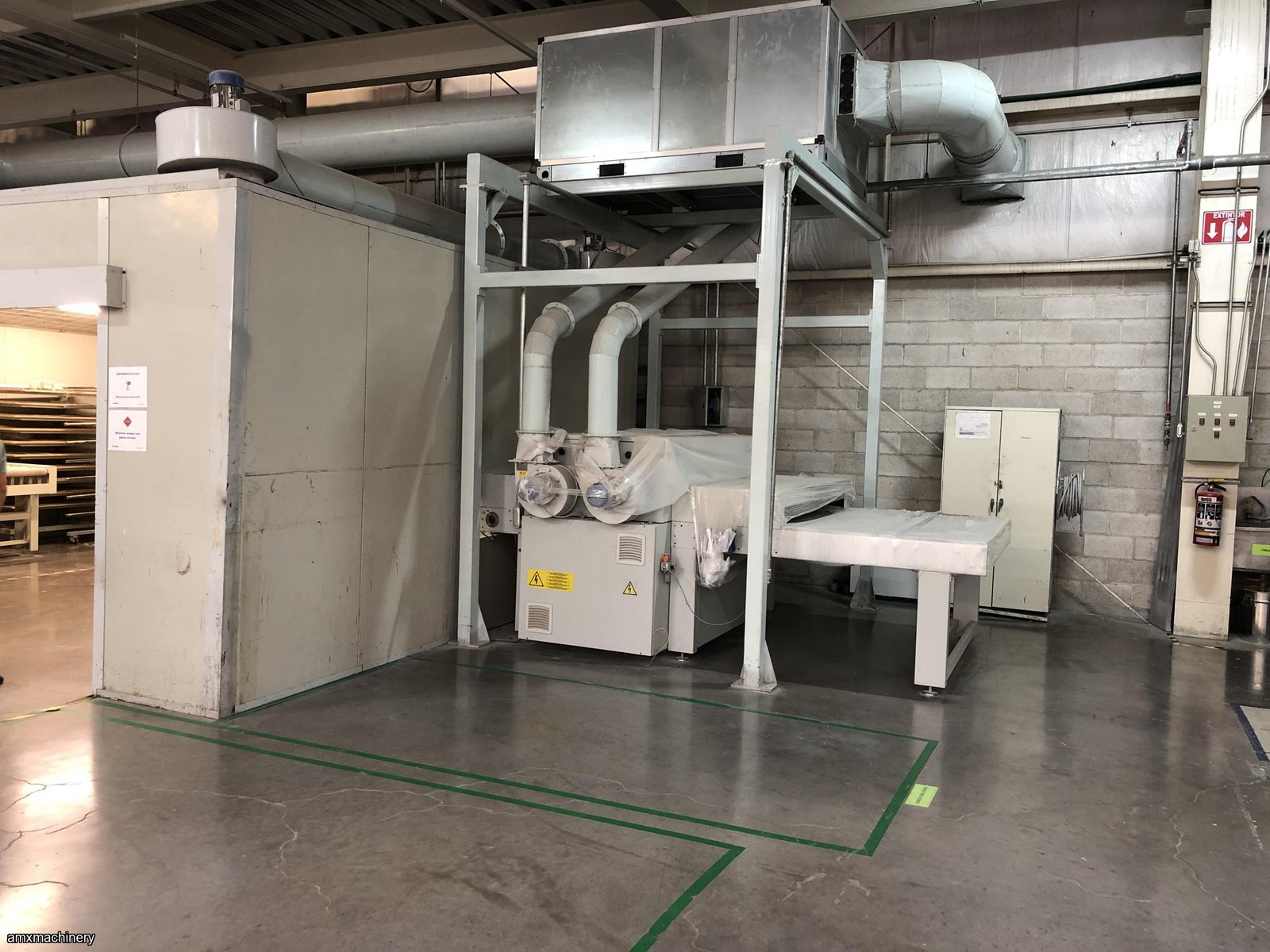

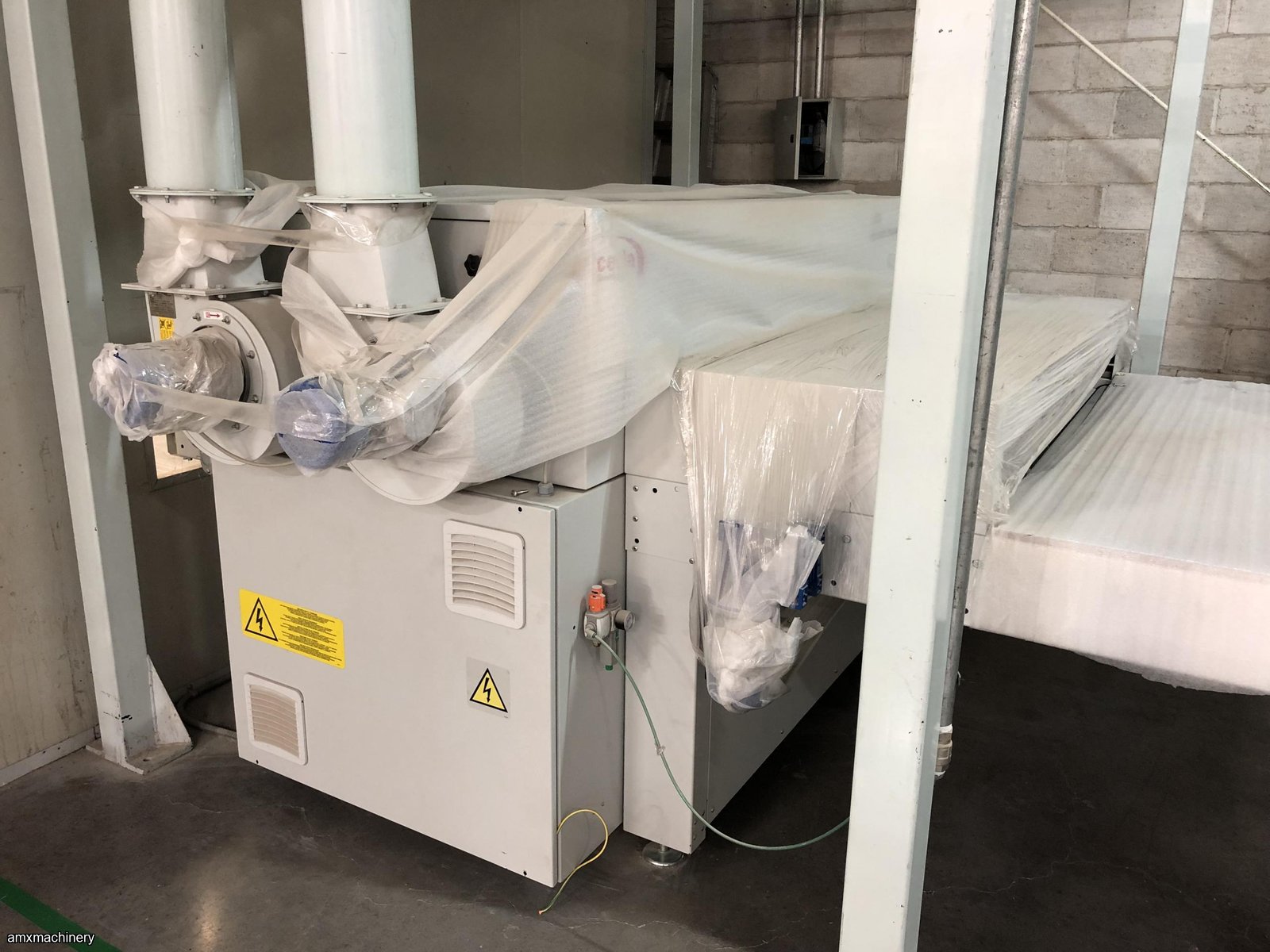

- Cefla UV –R Oven (2014) 460V 45.0KW
We would supply a 75KVA 220V/440V transformer so that the whole line be used with only one voltage.
Country of Origin: Italy
Main line bought refurbished: 2010
UV conveyor and oven bought new: 2014
Min / Max width of parts: 120mm (4.72”) / 1220mm (48”)
Min / Max length of parts: 320mm (12.6”) / 3000mm (118.1”)
Min / Max thickness of parts: 5mm (0.2”) / 70mm (2.75”)
Machine can be used to spray multiple size parts with different types of paint / lacquer material.
Product can dry in Spray Cabin and/or dry using UV product and UV oven.
