Identificador: 232
Abierta
Descripción

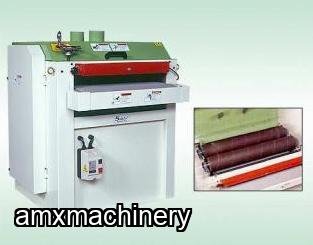

PARTE # 2BF-SK-LS25DS - LIJADORA DE TAMBOR - 2 RODILLOS - 25" ANCHO
Product Features :
2 sanding drums with 25 inches sanding width and 4 inches sanding thickness
Equipped with high e!ciency dust system.
Thickness control switch ensures operation safety.
Industrial grade conveyor belt provides smooth running and slip-free performance.
This versatile drum sander is designed for sanding a wide variety of parts such as metal, non-metal, wood, pc board, etc.
Opciones:
Variable feeding speed (optional)
Product Specifications:
Drum Sander
Model/Item No: SK-LS25DS : 25" dual Drum Sander
Max. Sanding width: 635mm (25”)
Max. Sanding thickness: 100mm (4”)
Table dimension: 635(25”) x 870mm(34.25”)mm
Sanding wheel diameter: 150mm (6”)
Speed of Sanding wheel: 1720 RPM
Feeding speed: 3.7 M/min (12 FPM)
Sanding motor: 5HP
Feeding motor: 1/4HP
Overall dimension: 37”D x 42”W x 43”H
Packing dimension: 41”D x 45”W x 45”H
Net weight: 838 lbs (380KGS)
Gross weight: 948 lbs (430KGS)
