Identificador: 224
Abierta
Descripción

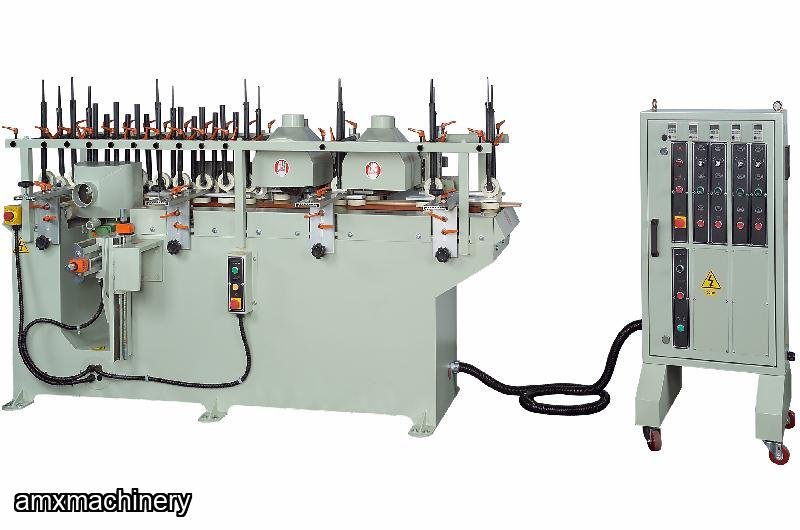

PARTE # 2TA-SD-602T - LIJADORA DE MOLDURAS – 2 ARRIBA
PARTE # 2TA-SD-603TU - LIJADORA DE MOLDURAS – 2 ARRIBA – 1 LADO
PARTE # 2TA-SD-603TU - LIJADORA DE MOLDURAS – 2 ARRIBA – 2 LADOS
Nueva con garantia
Designed for high production moulding sanding of straight stick of solid wood, veneered panel and finish between coats with profile, angular, or straight edge.
Workpiece is through feed with power spring-load pressure rolls at top, without sliding for irregual surface.
The brush, flap wheel, pneumatic drum or profile sanding head to cover all the profile sanding.

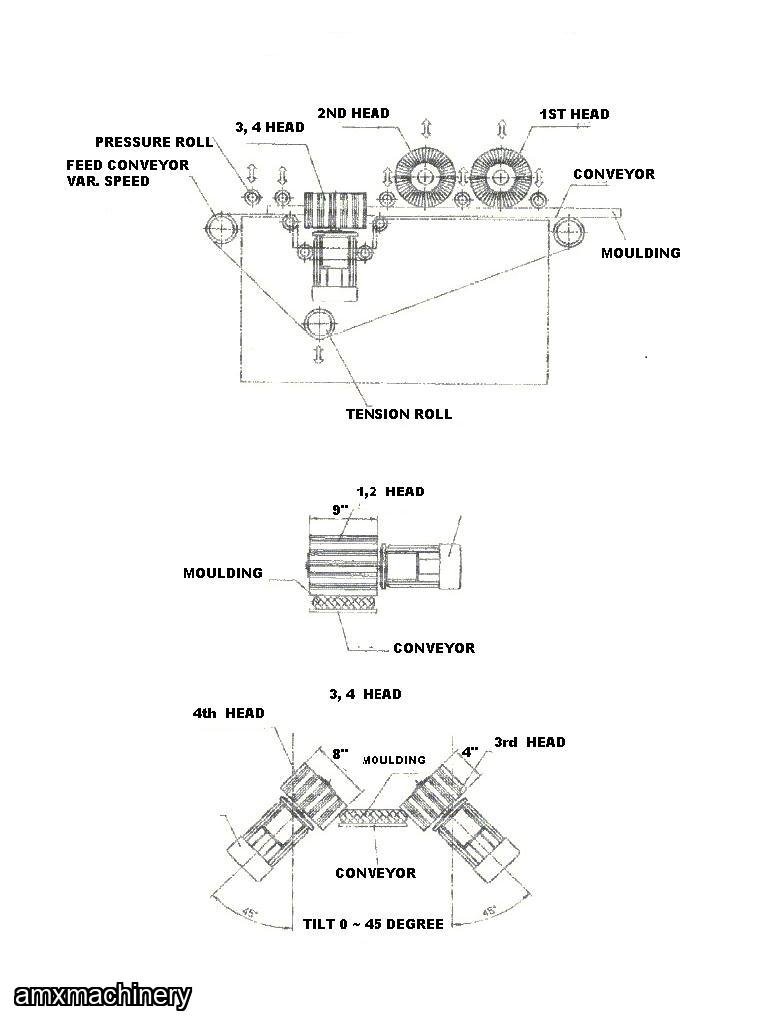

Top sanding head can be adjusted in & out, up & down.
Side sanding head can be adjusted tilt, forward & backward and up & down.
Variable feeding 20" to 80" to get different setup easily.

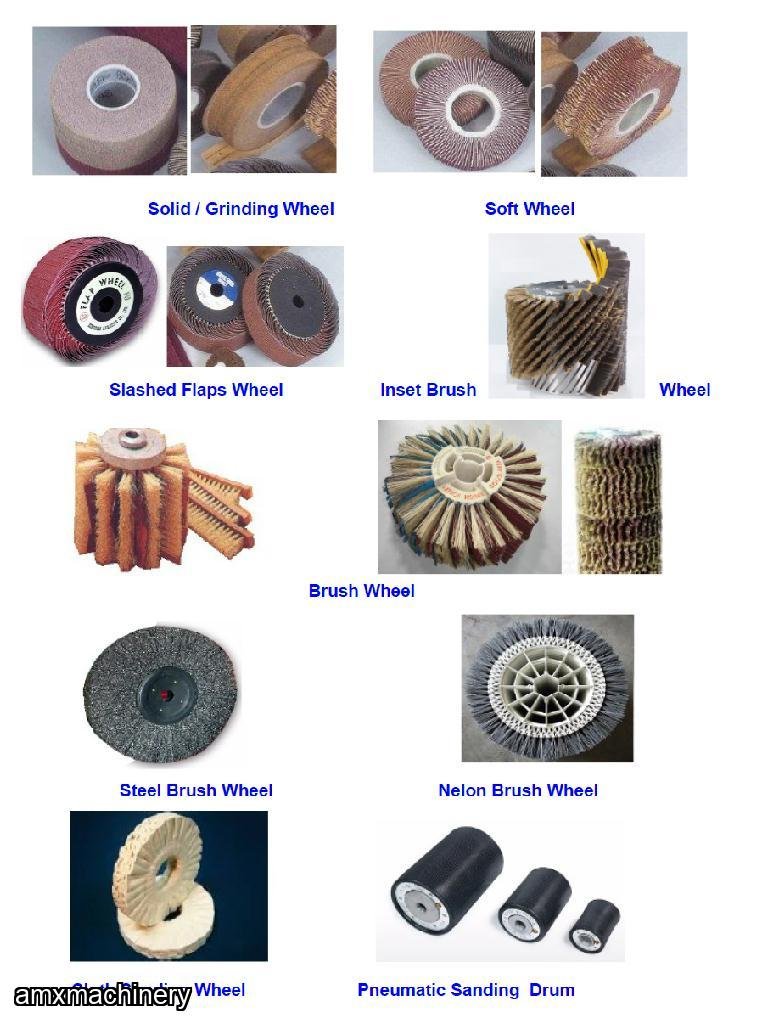

Every sanding head can use profile disc, brush wheel or sand belt with sponge drum for fine, detail finish.
SPECIFICATIONS |
|
Max. Sanding Width | 6" |
Max. Sanding Height | 4" |
Min. Sanding Length | 13" |
Wheel Head |
|
Brush Wheel Drive Motor | 2 HP |
Brush Tilts (universal Heads Only) | 90° ~ 180° |
Max. Sanding Wheel Dia. (Top & Bottom) | 12" |
Max. Sanding Wheel Dia. (Side) | 8" |
Sanding Spindle Dia (top & Bottom) | 1-1/4" |
Sanding Spindle Dia. (Side Head) | 1" |
Spindle Speed | 0 ~ 3600 RPM |
Profile Platen Belt Head |
|
Range of Workpiece Width | 2" ~ 70" |
Minimum Length of Workpiece | 4" |
Range of Workpiece Thickness | 1/6" ~ 4" |
Simple Belt Head |
|
Sanding Belt Size | 6" x 20" |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery

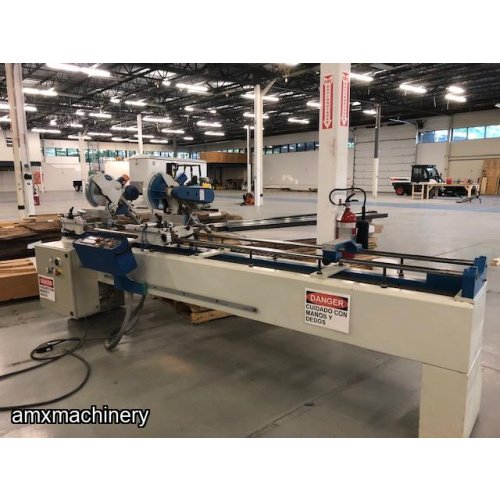

2 SIERRAS INGLETERAS DOBLES - OMGA
PARTE: 12144 – 2 SIERRAS INGLETERAS
DOBLES - OMGA
USADAS – MUY BUENAS CONDICIONES - COMO NUEVAS
YEAR 2005
AMXmachinery
SISTEMA FINGER JOINT - AUTOMATICO - CAP 4” X 141”
PARTE: 2TA-SFJ-4-141-AUTO
- SISTEMA FINGER JOINT - AUTOMATICO - CAP 4” X 141”
Nueva con garantía
Incluye: Mesa Entrada Motorizada, Trompo Derecho, Trompo
Izquierdo y PrensaFeatures:
The fully automatic production
line complete with the right hand shaper, left hand shaper, and assembler
to produce the mass finger joint stocks.
The right hand shaper performs
end trimming and shaping functions on right end of sticks.
The left hand shaper performs
end t...
AMXmachinery
PARTE: 12640 - LINEA DE PINTURA - MOLDURAS - PARA APLICACION - PRIMER
PARTE: 12640 - LINEA DE
PINTURA - MOLDURAS - PARA APLICACION - PRIMER
Usada -
Buenas condiciones3 motores de 1 HP a 2 HP,
220V, 3 fases
-500x500.jpg)
AMXmachinery

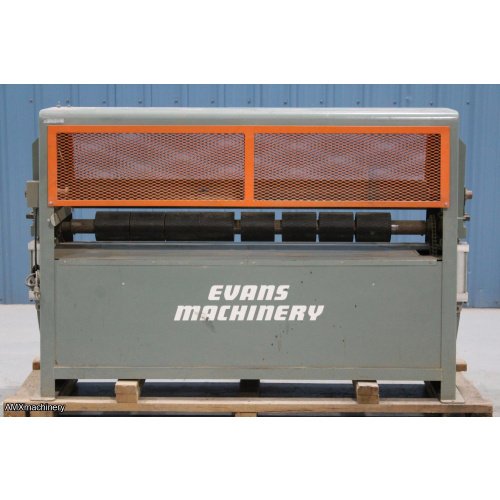

PARTE: 12540 - PINCH ROLLER - CAPACIDAD 62” - EVANS
PARTE: 12540 - PINCH ROLLER - CAPACIDAD 62”
- EVANS
USADA - BUENAS CONDICIONESCapacity with Solid Top and SegmentedBottom RollerMax.Width: 62"Feed rate 50 Feet Per MinuteSafety Gates on in-feed and out-feed
sidesWorks with Contact Adhesive or PVA's
white glueHeavy Duty Construction1/2 Hp, 8 Amps 110V MotorWorking Height: 30.5"Max. Thickness: 2"Air Requirement: 100 PSI
Foot Print:
74" x 28"
