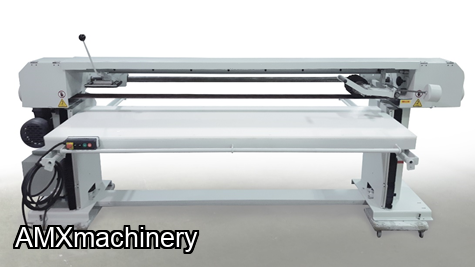

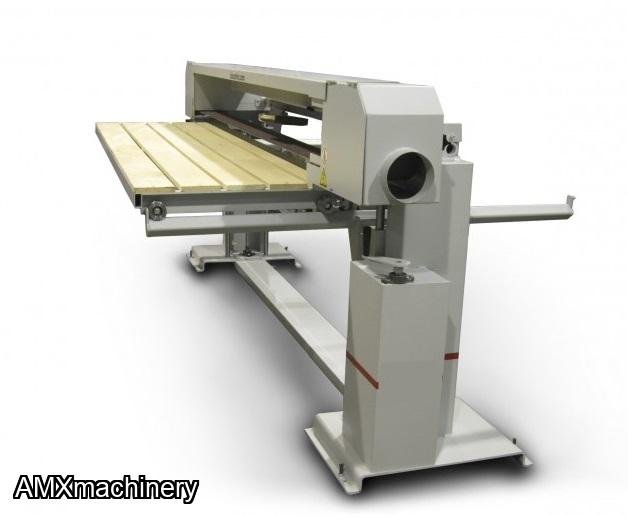

LIJADORA DE BANDA - MESA MOVIBLE – 2 BANDAS – MOTOR 5 HP - MESA 30”X 96” - USO RUDO

PARTE: 2DO-PMC-HD2 – LIJADORA DE BANDA - MESA MOVIBLE – 2 BANDAS – MOTOR 5 HP - MESA 30”X 96”

USO RUDO

Nueva con garantía

Heavy duty welded structure. They feature dust hoods on both sides, a table with steel rollers and virtually wear free balanced and quiet running aluminum pulleys. All models are equipped with a magnetic starter (overload protection) and belt guards. 

Maximum Part Length:

Pressure Pad Traveling Bar: 96"

Pressure Pad Traveling Bar Contact Wheel Assembly: 80"

Table size: 30" wide X 96" long

Steel table is covered with Russian Cherry wood plywood surface

Motorized vertical table with 28" vertical adjustment

Table weight capacity: 1000 lb

Two Abrasive Belt: 6" X 264", 4750 F.P.M.

Pulleys: 10" dia. X 6.25" face

Pressure Pad Traveling Bar

Hand Held Pressure Device

Magnetic starter with overload protection

Belt guards

Pneumatic tensioner

Sanding belt breaking detector

Dust collector outlet: 6" diameter @ 1200 cfm

Compressed air requirement: 90 psi

5 HP T.E.F.C. motor, 1750 rpm

Voltage: 220 or 440 / 3 / 60, 17 amps

OPTIONS

Single Phase 5 HP motor, 220 volts

Enlarge the table to 48"

Vulcanized Rubber Grooved Contact Wheel Assembly

   - (for hairlining & fine graining)

Contact Wheel Assembly with Corrugated Stacked Disks

   - (for weld seam removal & rough graining)

Variable speed for a 5 HP Motor:

    - Allow belt speed between 3300 to 6300 ft./min.

Six (6) Vacuum cups with individual activation switch, to hold parts
