PARTE: 2CK-PS43DA

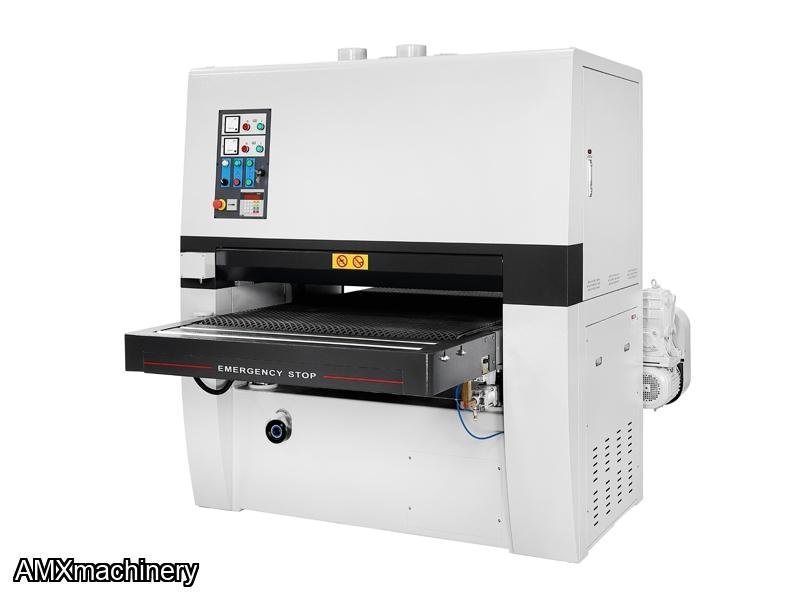

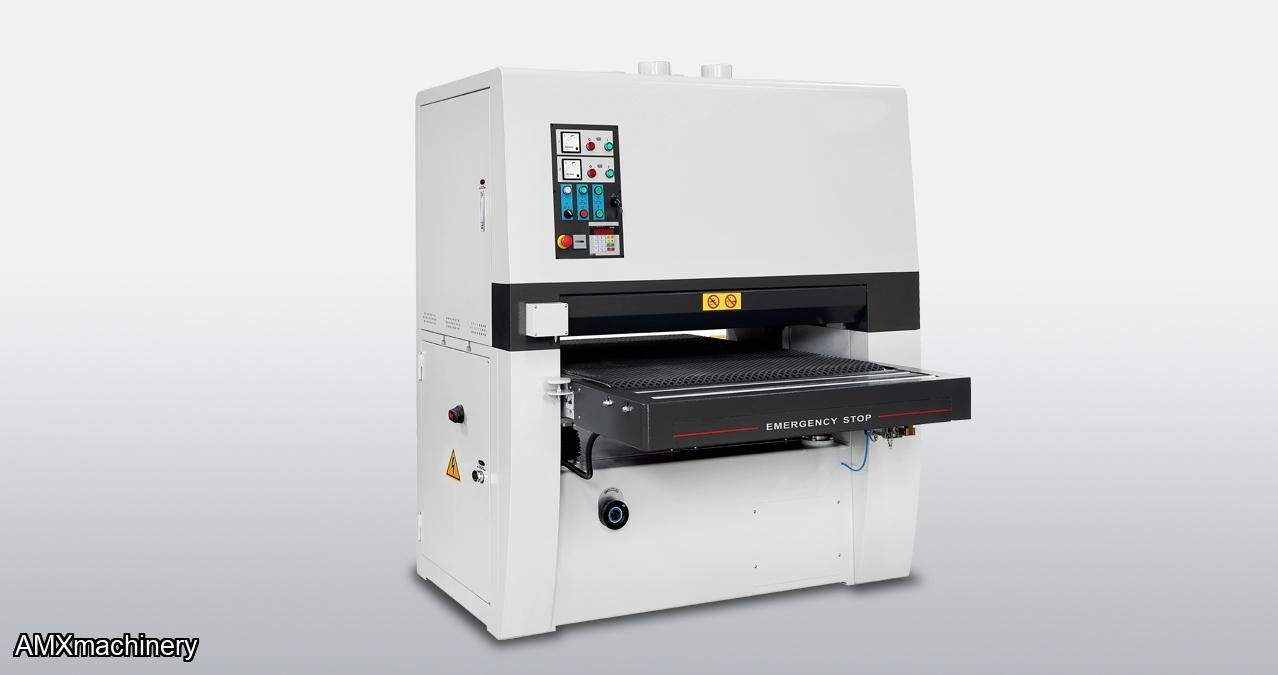

Heavy duty construction with upgraded horsepower for production use
- Dual sanding heads for increased productivity

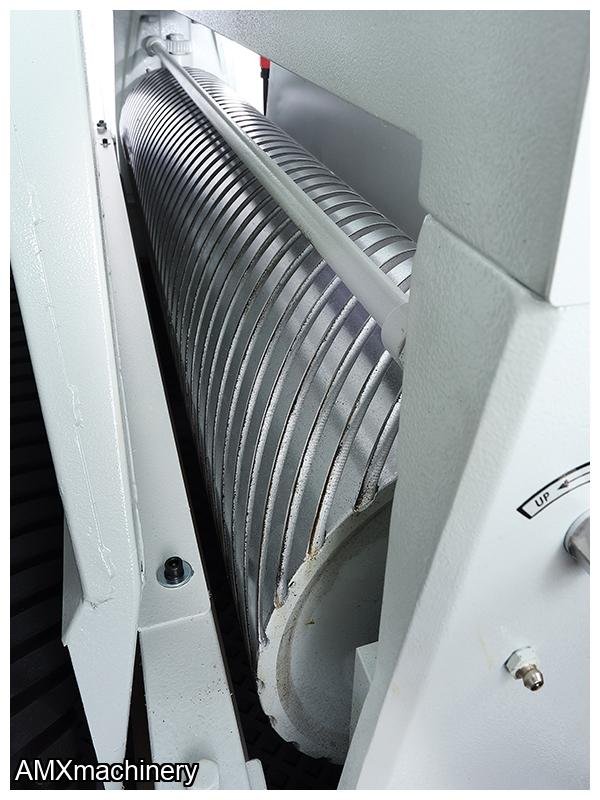

- First sanding head is steel with superior calibration results while the second head is a combination unit with adjustable platen for calibration and finish sanding capabilities
- Accurate digital thickness control to 0.001” (0.026mm) resolution

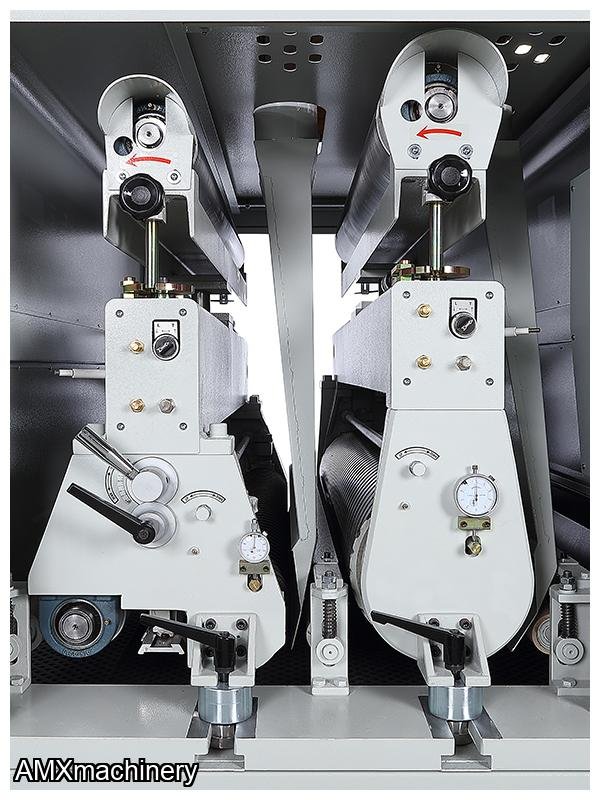

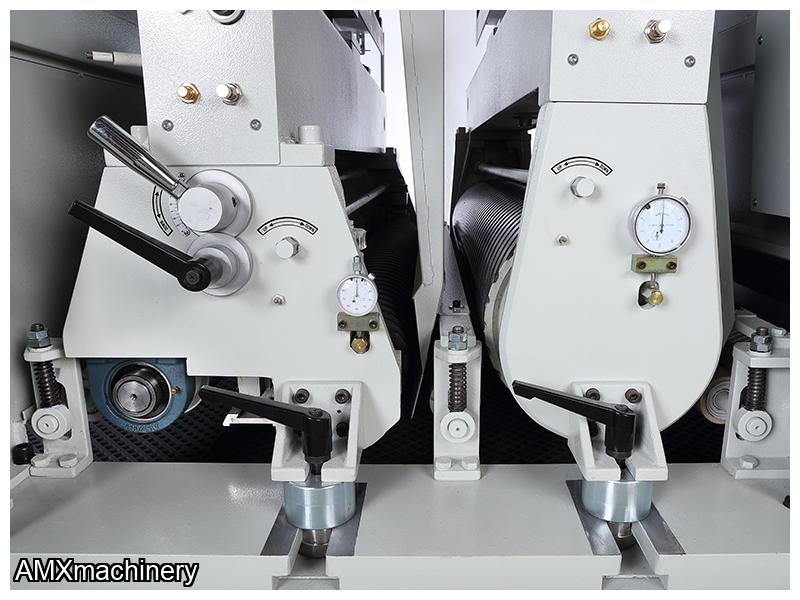

- Micro sanding drum height adjustments with dial indicators
- Caliper thickness setting unit for fast setup to your workpiece
KEY ADVANTAGES
- Heavy duty welded steel frame with cast iron sanding head assemblies for vibration free sanding.
- Dual rubber covered pressure rollers on infeed and outfeed for consistent material hold down.

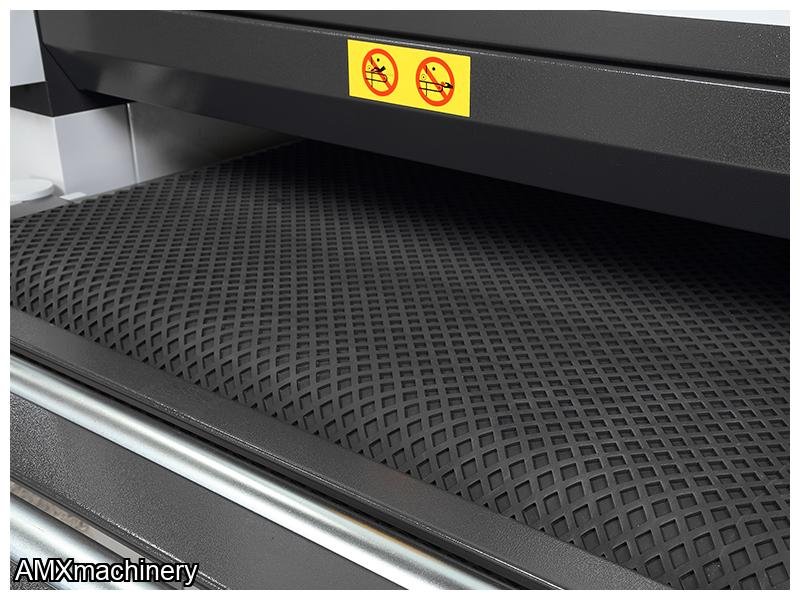

- High quality rubber conveyor with automatic pneumatic belt tracking

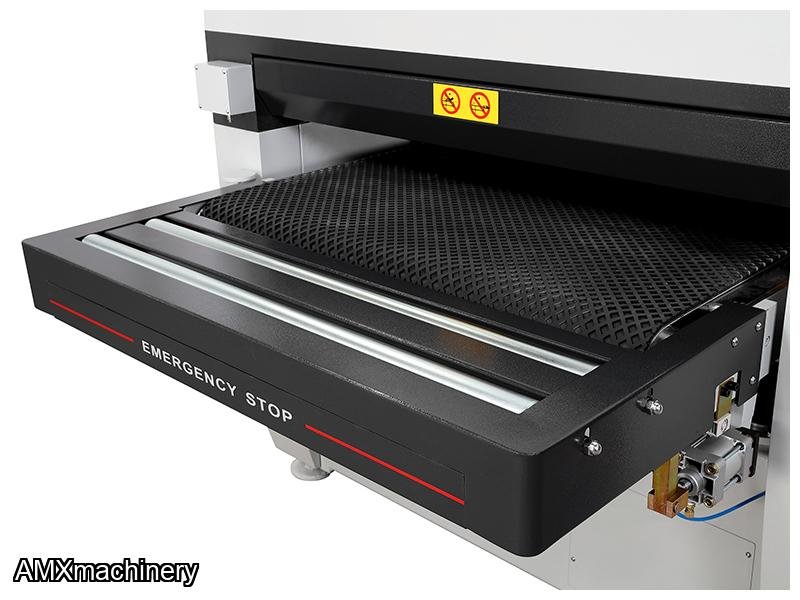

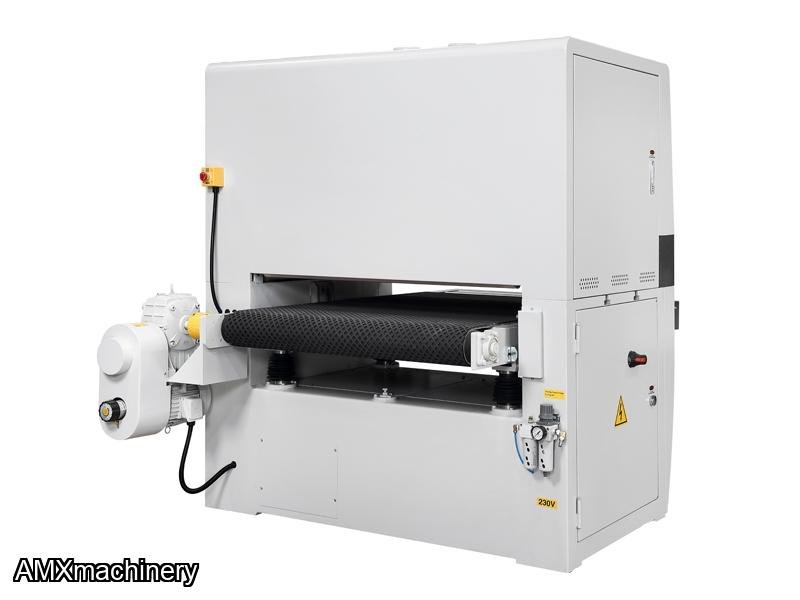

- Extended infeed bed with two table rollers

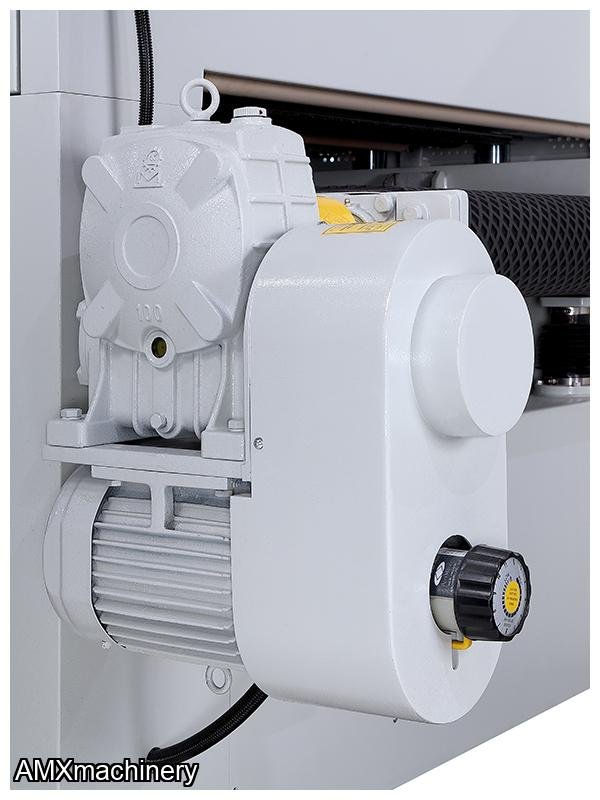

- Table is adjusted using four heavy duty jack screws driven by robust chain system.
- Automatic caliper thickness setting

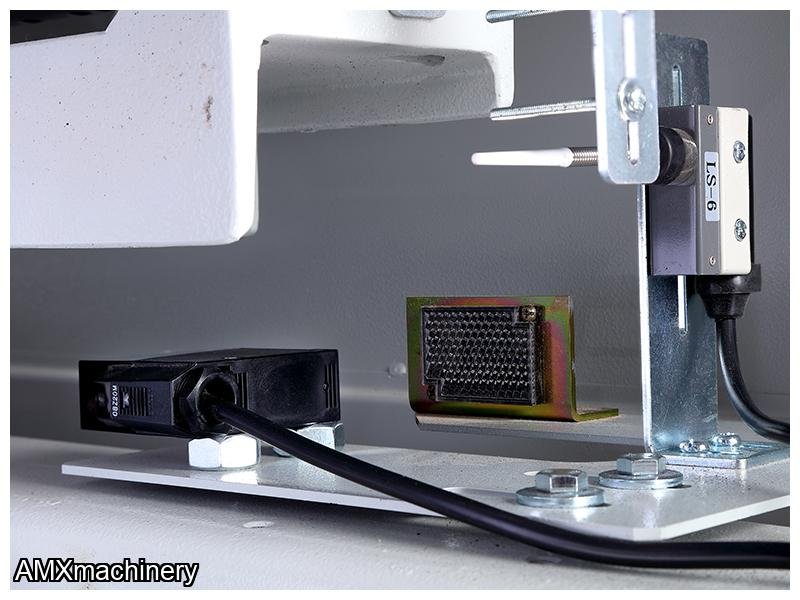

- Electronic sanding belt tracking
- Pneumatic belt tensioning & quick release outboard support for fast belt changes

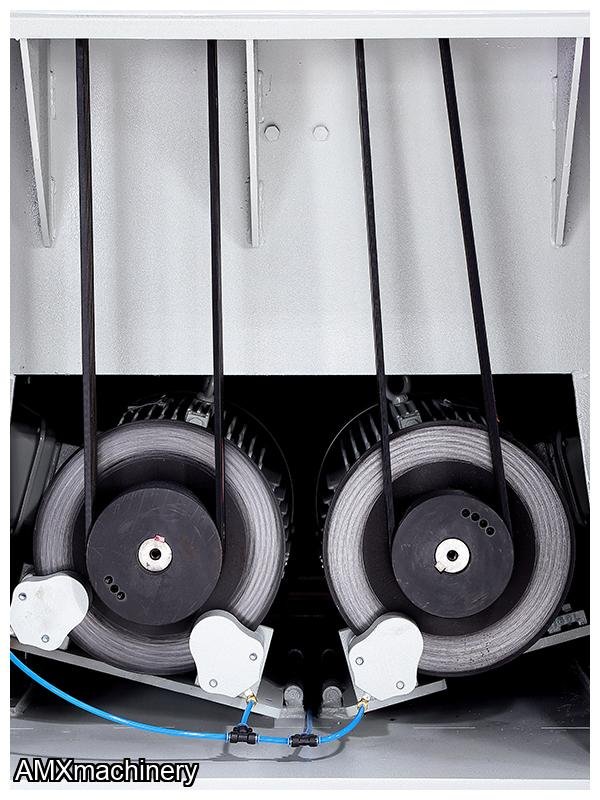

- Automatic disc brakes for the sanding heads allows for fast belt changeover

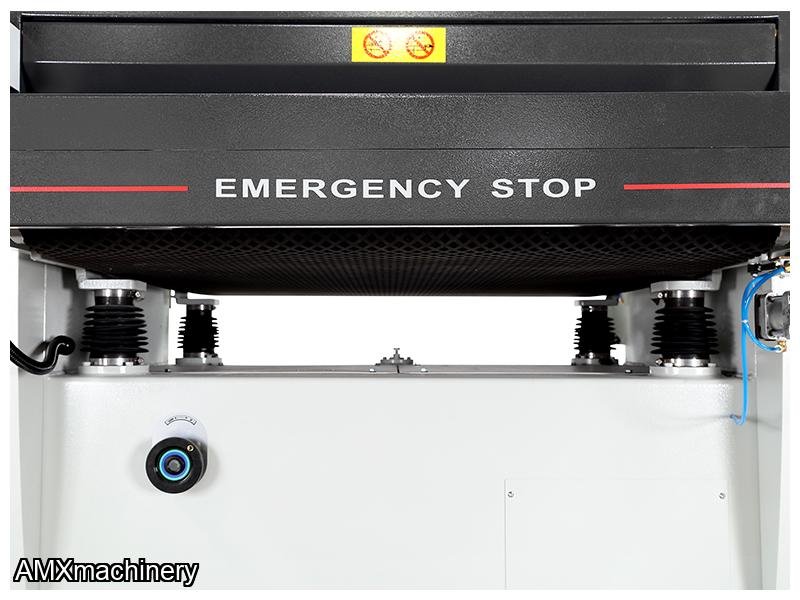

- Safety switches on all access doors.

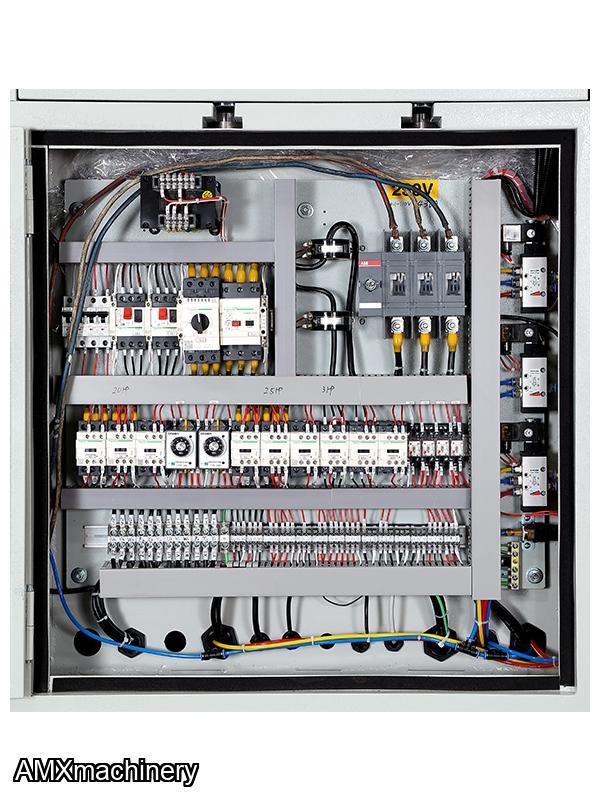

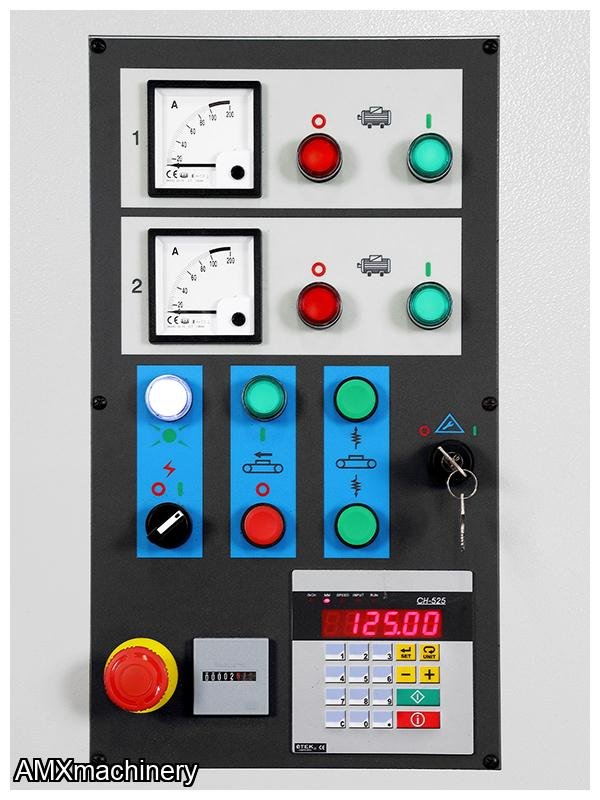

- High quality Schneider electrical controls and Comozzi pneumatic valves
|
|
Inch |
Metric |
|
Abrasive belt size |
43” x 75” |
1092 x 1900 mm |
|
Main motor first head |
25 HP |
|
|
Main motor second head |
20 HP |
|
|
Feed motor |
3HP |
|
|
Table rise/fall motor |
½ HP |
|
|
Maximum sanding width |
42” |
1066 mm |
|
Minimum part length |
17.5” |
440 mm |
|
Minimum material thickness |
1/8” |
3 mm |
|
Maximum material thickness |
5.9” |
150 mm |
|
Feed speed: variable |
12 to 46 FPM |
3.6 to 14 m/min |
