Description
PARTE: 2CK-C251

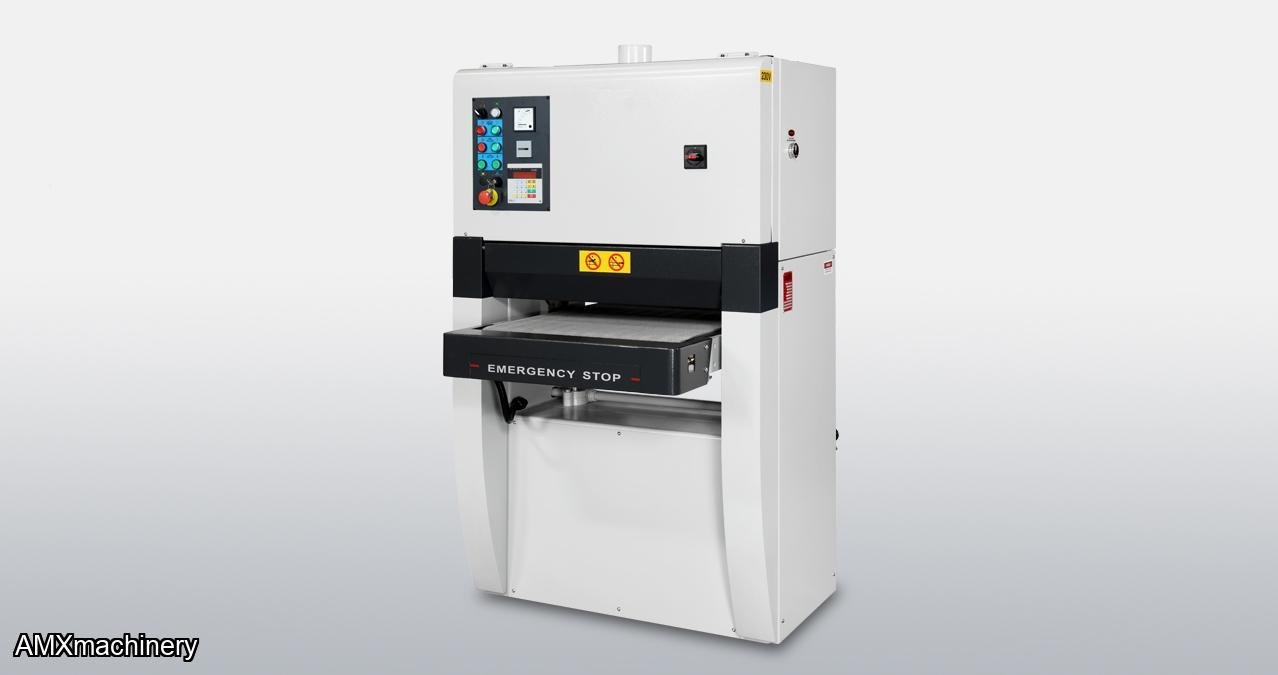

Is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

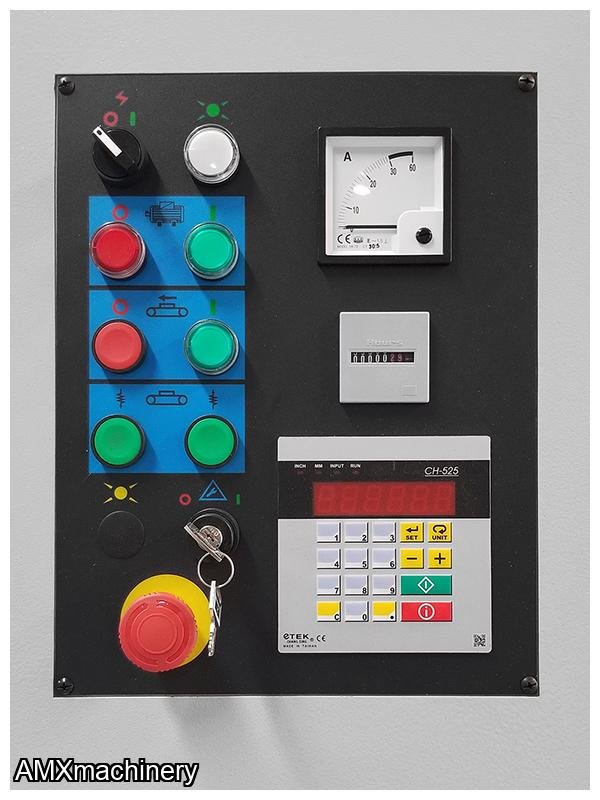

- Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
- Small footprint

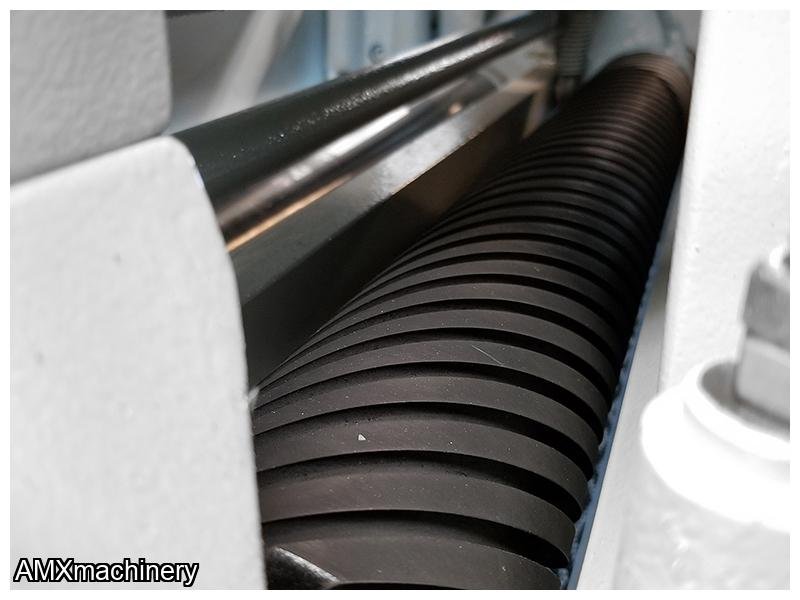

- Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications.
KEY ADVANTAGES
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.
- Disc brake on main motor allows for faster belt changes

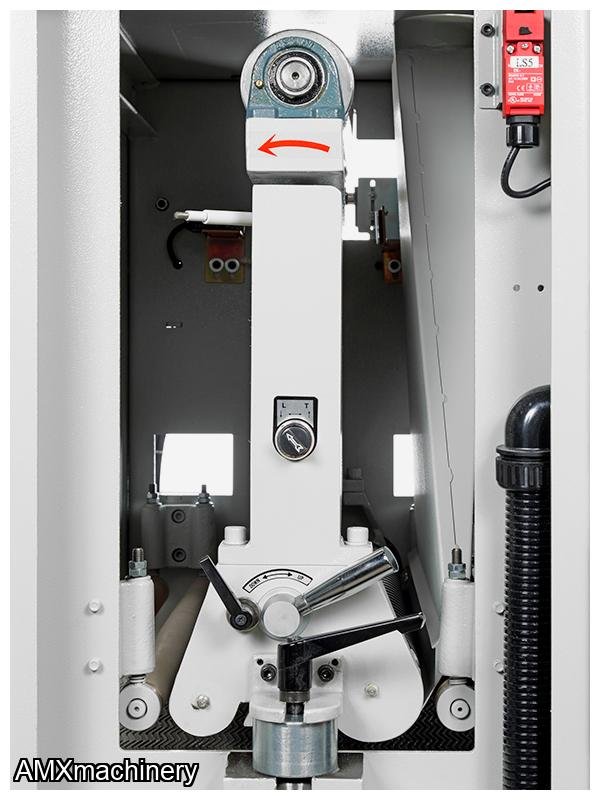

- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors.
|
|
INCH |
METRIC |
|
Abrasive belt size |
25” x 60” |
635 X 1524 mm |
|
Main motor |
10 HP |
|
|
Feed motor |
1 HP |
|
|
Table rise/fall motor |
½ HP |
|
|
Maximum width stock |
24” |
609 mm |
|
Minimum part length |
13” |
330 mm |
|
Maximum thickness opening |
4” |
100 mm |
|
Feed speed: variable |
13 to 52 FPM |
4 to 16 m/min |
|
Passline height |
33” – 38” |
838 – 965 mm |
|
Infeed table |
11-1/2” |
292 mm |
|
Dust outlet |
1 @ 4” |
1 @ 101 mm |
|
Compressed air usage |
2 CFM @ 90 PSI |
2 CFM @ 90 PSI |
|
Net weight |
1452 lbs |
660 kgs |
|
Machine dimensions |
53” x 50” x 63” |
1346 x 1270 x 1600 mm |
|
Shipping weight |
1584 lbs |
720 lbs |
