Identificador: 146
Abierta
Descripción

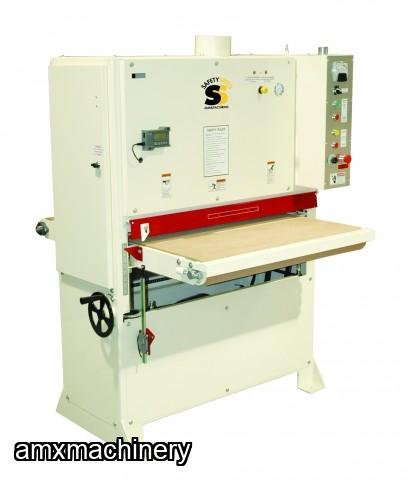

PARTE # 2SS-3760-10 - LIJADORA - 36" ANCHO - 1 LIJA - 10 HP 1 FASE
PARTE # 2SS-3760-15 - LIJADORA - 36" ANCHO - 1 LIJA - 15 HP 3 FASES
Lijadora - Calibradora
Cabezales: 1 cabezas
Capacidad: 36" ancho
Standard Equipment
Photo electric belt tracking.
2 1/2″ removable platen.
2 height adjustment indicators.
5 emergency stops.
2 rubber-covered pinch rollers 1 1/2″ OD.
Rubber-covered contact roller 4 1/4″ OD with 13/8″ drive bearing.
2 machined idler rollers 2 3/16″ OD with 3/4″ bearings.
Conveyor table set on four 3/4″ acme-threaded jackscrews
Pneumatic belt tensioning.
3 year warranty.
6″ internal dust chute.
3/4 Hp conveyor motor
Max. Working Length: Unlimited
Min. Working Length: 12"/305mm
Main Motor Options: 10 Hp, 1~ 220V, 15 Hp, 3~ 208V
Max. Working Width: 36"/915mm
Max. Working Thickness: 7 1/4"/184mm
Min. Working Thickness: 1/8"/3mm
Vacuum Requirement: 1000 CFM
Conveyor Speed: 0-18 FPM
Durometer Of Contact Roller: 60
Sanding Belt Size: 37" x 60"
Product shipping information
Weight: 1789 lbs
Dimensions: 60 x 60 x 71 in
OPCIONALES:
Lector digital de altura de la mesa
Contador de horas
Posicionador de la mesa electrica
Lijas abrasivas
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PEGADORA DE SABANAS - FISHER RÜCKLE CROSSMASTER
PARTE
# 12160 – PEGADORA DE SABANAS - FISHER RÜCKLE CROSSMASTER
USADA – MUY BUENAS CONDICIONES
Year of manufacture 2008
Opening width mm 2.800
Veneer thickness min mm 0,3
Veneer thickness max mm 1,5
Strip width min mm 50
Strip width max mm 600
Feed rate max m/min 36
Cross splicing machine Yes
Edge gluing Yes
Trimming unit Yes
Rip cut Veneer clipper
Joint Only edge gluing
Controls and software:
SIEMENS SIMATIC PANEL
CE marking Yes
Total c...
AMXmachinery
GRABADORA DE MOLDURAS - MAKOR
PARTE: 12419 - PRENSA - GRABADORA DE MOLDURAS
- MAKOR
USADA – MUY BUENAS CONDICIONES
This
machine has been designed to hot-press directly on wood or using wood paste.
It
is particularly suitable for coffins and funeral fittings, furniture and
accessories, picture frames, pelmets, etc.
Press
length 17.71" to R/L
Material
max width; 7.68")
Engraving
depth 3mm
Dual
propane torch heaters
Includes:
Large inventory of wheels as shown
230 Voltage 60 Cycle 3 Phase
...
AMXmachinery
PARTE: 12614 - REASERRADORA HORIZONTAL - 1 BANDA – 12” ANCHO X 12” ALTO
PARTE: 12614 - REASERRADORA HORIZONTAL - 1 BANDA – 12” ANCHO X 12” ALTOUsada - Buenas condicionesBAKERBBR-0 / ABXFeatures the frame and headrig of our "BX" model, but use an "AX" model conveyor belt. This means that the head-rig can be adjusted up or down and the conveyor stays at a fixed height.Because the conveyor belt stays at a fixed height, it is easier to interchange and integrate with other material handling systems in your facility. This versatile band resaw is perfect for those wh...
AMXmachinery
PRENSA DE MEMBRANA – 1 MESA – 4 X 8 PIES
PARTE:
2LB-PT-MEB482 – PRENSA DE MEMBRANA – 2 MESAS – 4 X 8 PIES
Nueva con garantíaFeatures:Special design to use heating,
vacuum and hydraulic pressure to add or forming the film skin to a shaped,
curved or uneven surface material. Also, it can perform as print heat transfer.Suitable for wood veneers or
PVC sheets.Two operation models: With
silicon membrane for heat transfer normal function or using heating template
for high shining PVC.Automatic 4 function process
model contro...
