Identificador: 141
Abierta
Descripción

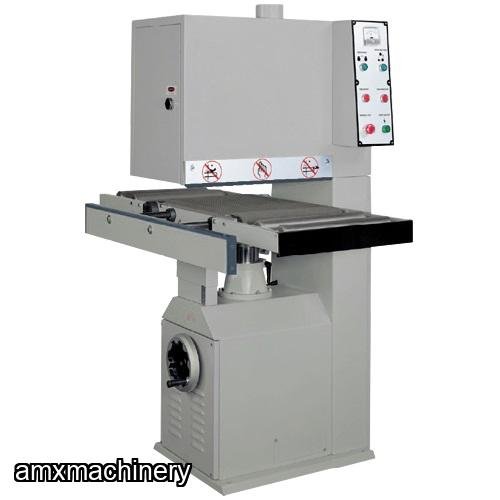

PARTE # 2TA-CA-1554 - LIJADORA - CALIBRADORA - 15" ANCHO
- Combination head configuration drum and platen produces a finer finishing result.
- Pneumatic controlled OSCILLATING BELT SYSTEM and easy adjustable pressure for sanding different wood materials such as veneer, hard wood and soft wood.
- Conveyor table roller extension, ideal for big panel sanding such as doors, window frames, etc.
- Specially designed for one side open body sanding up to 30 panels with two passer.
- The emergency stop device ensures instant shot shown of machine running.
- This unit is ideal for the fine finishing requirements of general cabinet parts.
- All rollers and pulley have balancing adjustments ensuring maximum stability.
- High quality conveyor belt gives an outstanding gripping performance.
- Spiral shaped and grooved contact roller is ideal for calibration sanding.
- Infeed and outfeed are spring-loaded to ensure positive roller feeding.
- An electric sensor for excellent operation controls the belt oscillation.
- Designed for efficient small panel sanding at jaw body.
- Heavy-duty construction with precision working parts.
- Air cylinder control tension belt.
- Opcional: Extension rail
SPECIFICATIONS | CA-1554 |
Sanding Width | 15" |
Sanding Belt Size | 15" x 54" |
Conveyer Size | 15" x 64" |
Min. Working Length | 12" |
Max. Working Thickness | 6" |
Feeding Speed | 20 FPM |
Sanding Motor | 7½ HP |
Feeding Motor | ½ HP |
Air Requirement | 6 CFM |
N.W. | 840 LBS |
G.W. | 960 LBS |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
CANTEADORA 8"
PARTE # SIL-DC-WJ8 - CANTEADORA DE 8" - 2 HP NUEVA CON GARANTIAMOTOR: 2 HP, 110/220V, 60 Hz, MONOFASICOANCHO MAXIMO DE DESBASTE: 8"MAX. PROFUNDIDAD DE CORTE: 8" X 1/8"; 4" X 1/4" Y 2" X 1/2"INCLINACION DE LA GUIA: 45 Y 90 GRADOSDIMENSIONES DE LA MESA ENTRADA: 23-1/4" X 9-1/4"DIMENSIONES DE LA MESA SALIDA: 27-3/8" X 9-1/2"DIMENSIONES DE LA GUIA: 34" X 4"ALTURA DE LA MESA: 32"CANTIDAD DE CUCHILLAS: 3 PIEZASPESO: 138 KGSTIPO DE EMPAQUE: 1 CAJA
AMXmachinery
MOULDER CUTTER HEADS - LENGHTS 2.25”, 3”, 4”, 5”, 6” - BORE 1-13/16” - BORE 2-1/8"
PART: 12305-E - MOULDER CUTTER HEADS - LENGHTS 2.25”, 3”, 4”, 5”,
6” - BORE 1-13/16” - BORE 2-1/8"WITHOUT BUSHING - BORE 2-1/8"
USED - VERY GOOD CONDITIONS
North American
Gladu hydro-lock
6 wing
20 degrees
Interior diameter (bore): 1-13/16”
External diameter: 6” (150 mm)
Lenght 2-1/4” (57 mm)
Lenght 3” (75 mm)
Lenght 4” (102 mm)
Lenght 5” (130 mm)
Lenght 6” (152 mm)
AMXmachinery
PRENSA DE TORNILLO 1/2 TON
PARTE: 2AR-3551 - PRENSA DE TORNILLO - 1/2 TONSe monta en la mesa de trabajo para montar y desmontar rodamientos, etc.Capacidades:1/2 tonAltura maxima 4-1/2"Diametro maximo 6-1/2"Radio de apalancamiento 20:1Arbor maximo: 1"Ram square: 3/4"Dimensiones de la maquina: 4" ancho x 9-1/2" largo x 10" alto
AMXmachinery
PARTE: 12173 - DOBLADORA DE TUBOS – HIDRAULICA - CAPACIDAD DIAMETRO 4-1/2”
PARTE: 12173 - DOBLADORA
DE TUBOS – HIDRAULICA - CAPACIDAD DIAMETRO 4-1/2”
Usada – Buenas
condiciones, Revisada y Checada
Capacities:
Non-ferrous tubing:
4.5" x .17" - Y.P. to 25,000 PSI
Mild steel tubing:
4.5" x .11" - Y.P. to 35,000 PSI
Stainless steel tubing:
4.5" x .065" - Y.P. to 60,000 PSI
Steel pipe: 3.5" x .24"
schedule 80
Maximum radius:
18"
Tube length over mandrel...
