ID: 1304
Open
Description

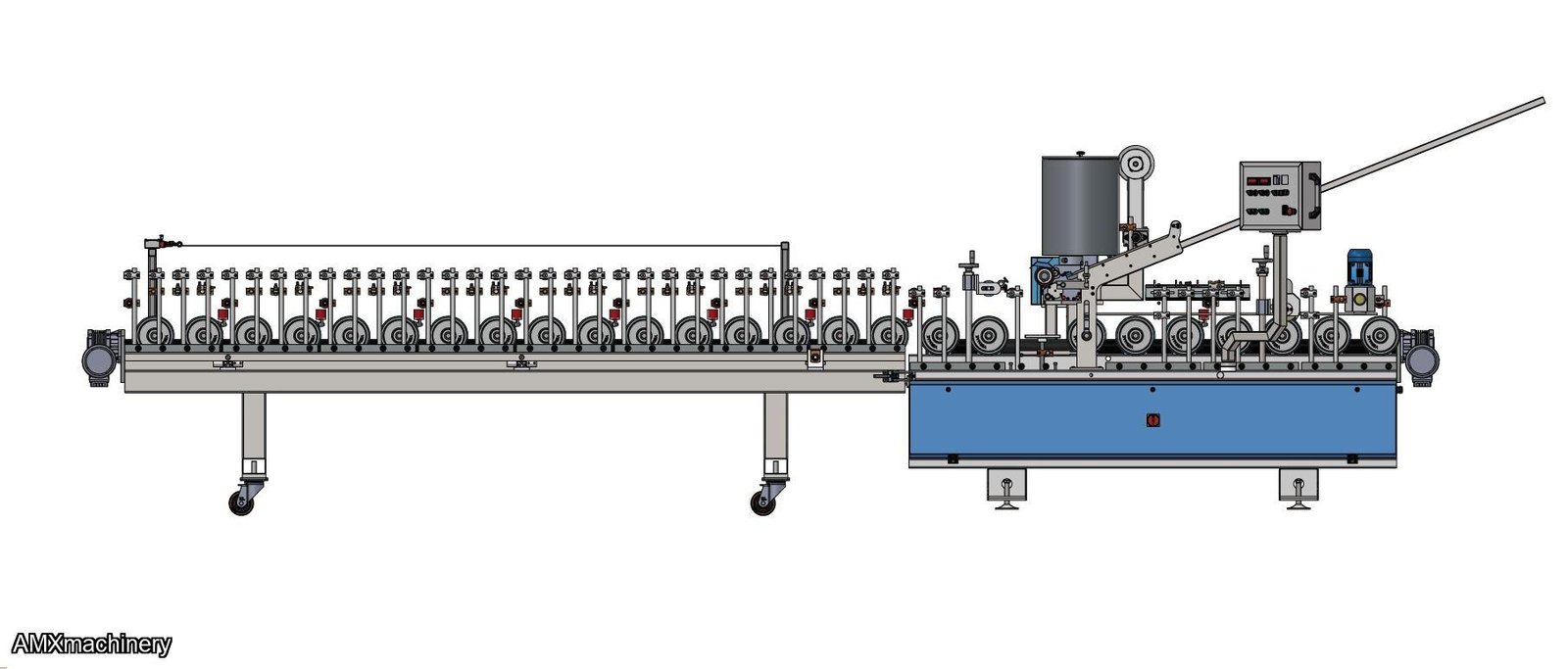

PARTE: 4VE-VEP350-KL6.5-WMP-1 - LAMINADORA DE MOLDURAS - CON ENGOMADORA
PUR-PO-EVA
Nueva con garantía
GLUE PUR-PO-EVA WİTH CASSETTE SYSTEM 2,5 4 M (with 1 pc Glue tank)
NO STANDARD SPECIFICATIONS QTY
1 2,5m main body 4m cassette 1
2 25 set of rubber coated conveyor rollers 1
3 Air blowing system to remove dust from MDF, PVC profile surfaces 1
4 Ø80x350mm silicone coated top pressure roller 1
5 2000 W infrared profile heaters 2
6 Folio feeding system with single rolling and brake system; pneumatic 3 inch or 6 inch (optionally) 1
7 Stainless steel ramp unit for natural sheets coating (veneer in sheets) 1
8 350 mm steel glue roller (applicator) 1
9 Ø320 Teflon coated, double-tap-controlled glue tank PUR (PUR) (2 x 3000 W heating power) 1
10 3400 W self-powered hot air guns (Made in Turkey) 4
11 22x430 mm chrome coated vertical holder 100
12 22x250 mm chrome coated horizontal holder 110
13 Galvanized double hole unit 110
14 Single hole unit 15
15 Pressure rollers with different hardness and sizes which is suitable for all models of profile 110
16 Pressure rollers with different radius and sizes 10
17 Electrical and mechanical equipment compliant with CE and UL Standards 1
TECHNICAL DATA
TYPE OF FOİL : PVC, PP, Finish Foil, Paper, Veneer (in roll and plate also), Laminate 0,20

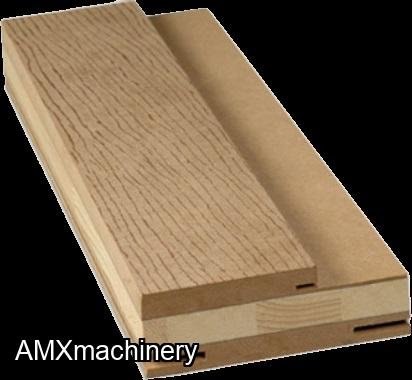

PROFİLE TYPE : MDF and all kind of wooden profiles
MİN-MAX FOİL WİDTH : 20 mm-350 mm
PROFILE WIDTH and HEIGHT : 15–350 mm , 75 mm
COATİNG SPEED : 10–40 m/dk
GLUE : EVA and POLYURETHANE HOT GLUE (PUR)
TOTAL POWER : 30 kW
VOLTAGE,FREQUENCY,AİR PRESSURE : 380 V , 50 Hz , 6 Bar
WİDTH X LENGTH X HEİGHT X WEİGHT : 1000 x 7000 x 2000 mm , 1950 kg
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
Post Message
Sign in to ask the seller a question.
AMXmachinery
PARTE: 12545 - LINEA DE PINTURA UV - SUPERFICI MINI PLUS
PARTE: 12545 - LINEA DE
PINTURA UV - SUPERFICI MINI PLUS
USADA -
MUY BUIENAS CONDICIONESPassline Height: 900 mm
Operating side: RH, as viewed from inlet of line, LH available as a special order.
Workpiece Dimensions (Approx.):
Min. - max. length: 300 mm - 4880 mm (12" - 16')
Min. - max. width: 25 mm - 1300 mm (1" - 51”)
Min. - max. thickness: 3 mm - 90 mm (1/8" - 3-1/2")
Max. weight: 3# per sq. ft
Speeds:
Mechanical speed: 1-3 m/min
Avg. production speed: 2 m/min
Connections:
...
AMXmachinery
ARMADORA DE TARIMAS Y APLIADOR - PALLET CHIEF
PARTE: 12357 – ARMADORA DE TARIMAS Y APLIADOR - PALLET
CHIEF
USADA – MUY BUENAS CONDICIONES
AMXmachinery
CEPILLO DE 3 HP, CON CUCHILLAS DE 40 CMS
PARTE: 12405-2 - CEPILLO DE 3 HP,
CON CUCHILLAS DE 40 CMS
USADA - BUENAS CONDICIONES
220V, 3 FASES
AMXmachinery
REASERRADORA HORIZONTAL – 4 SIERRA BANDAS – CON REGRESADOR
PARTE:
3HP-HP-400-4 - REASERRADORA HORIZONTAL – 4 SIERRA BANDAS – CON REGRESADOR
Nueva con garantíaPara mas informacion, solicite una cotizacion detallada,1.With
Digital Readout2.Max.
Workpiece Size: 400mm(W) x 250mm(H)3.Conveyor
Belt Size: 385mm(W) x 14840mm(L)4.Saw
Wheel Dimension: Φ28" x 2"(Thickness)5.Saw
Blade Size: 208"(L) x 2"(W)6.Dust
Hood Diameter: 4" x 87.In-feed
Speed: 4-20M/min8.Cutting
Size: 4-250mm(T)9.Saw
Blade Tensioning by Hydraulic Compensation System10.Main
...
