Identificador: 79
Abierta
Descripción

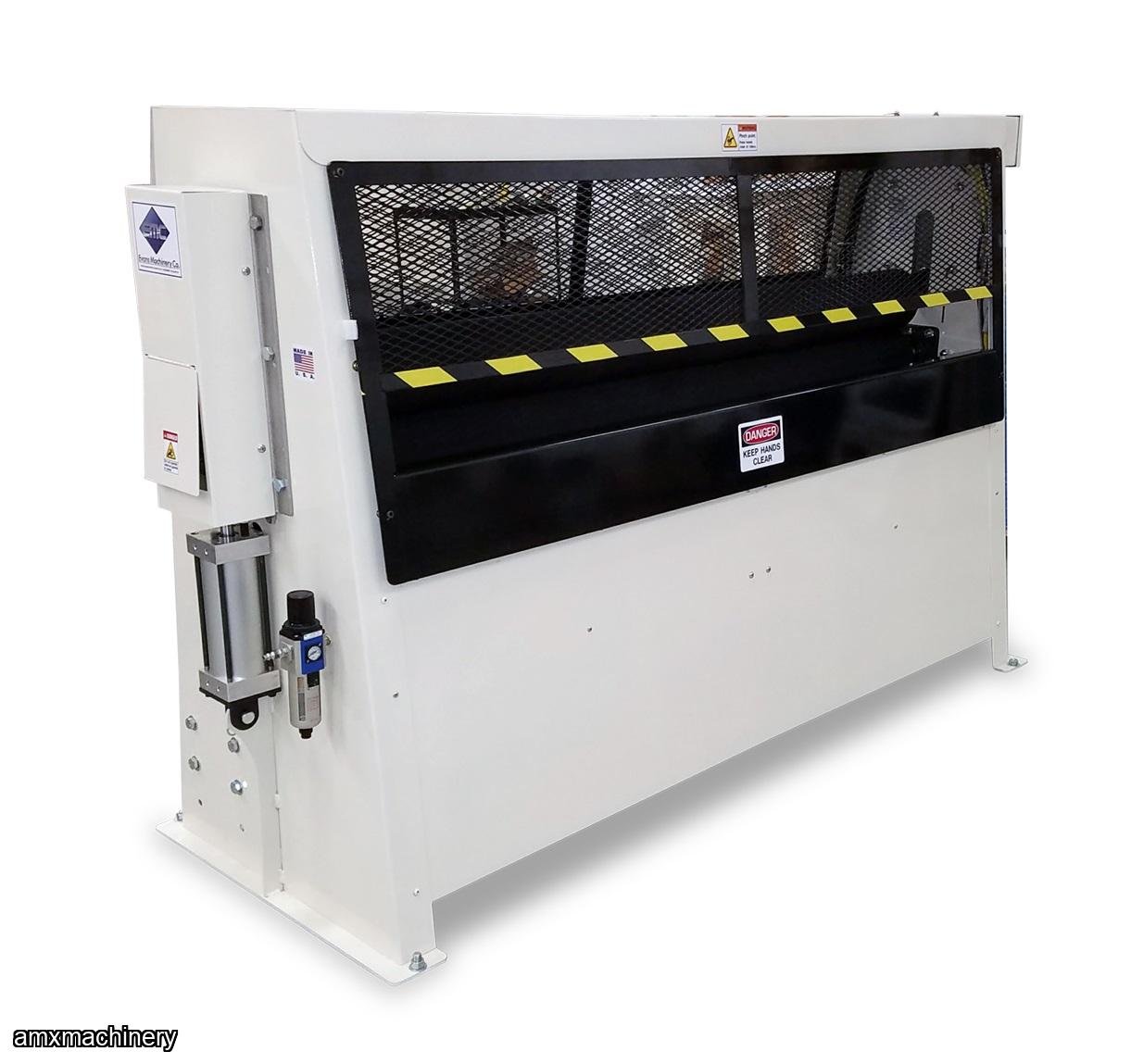

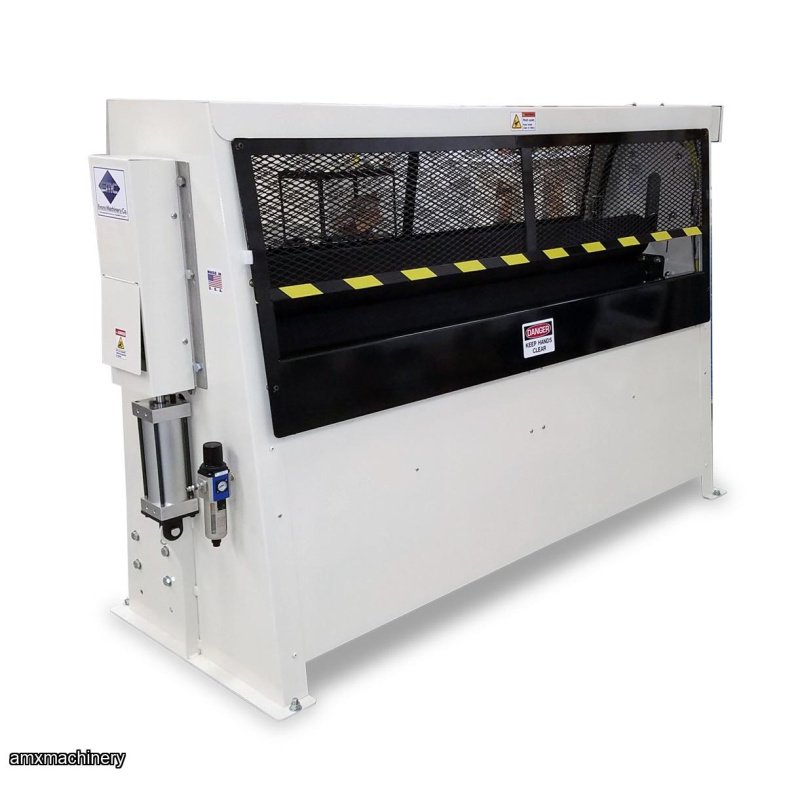

PARTE # EV-0257 – PICH ROLLER 62” - RODILLOS PLANOS - EVANS 0257
Pinch Roller 62" capacity
Solid top and bottom rollers for flat panel laminating
Safety Gates on In-Feed and Out-Feed
Solid Top and Bottom Rollers
Feed Rate: 50’ FPM
Maximum Width: 62”
Maximum Thickness: 2”
Work Height: 30-1/2”
(Optional Riser Available)
Drive Motor: ½ HP
Electrical: 120 V, 1 PH, 60 Hz (Options Available)
Air Requirement: 100 PSI
Crated weight 790 LBS. Shipping dimensions 85” long X 33” wide X 57” high
Options:
Variable speed control 0-50, ½ HP DC motor #01667
Custom Riser Base
220 volt 1 phase 50hz
Up to 4” roll opening
