Descripción

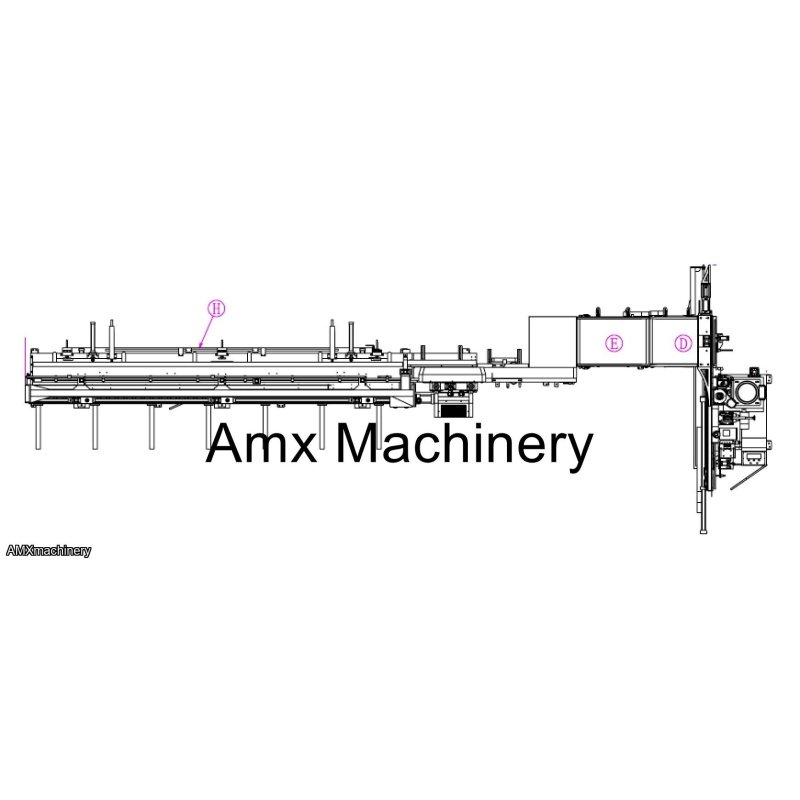

PARTE # 32M-FJS-005 – SISTEMA FINGER JOINT – SEMIAUTOMATICO
Escalable a Automatico
Incluye:
Trompo
- Motor Finger 20 HP
- Motor Escuadra 5 HP
- Motor Mesa 2 HP
- Motor Bomba Hidraulica 1/2 HP
- Velocidad 3-4 veces/min
Ensambladora
- Area de trabajo 5000mm largo x 150mm ancho x 75mm alto
- Motor Cortador 5 HP
- Motor Alimentador 1/2 HP
- Motor Bomba Hidraulica 5 HP
- Capacidad/min 3-4 piezas/min
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
LIJADORA DE BASTONES - 1 LIJA
PARTE: 2SW-FS-80B - LIJADORA DE BASTONES
- 1 LIJA
NUEVA CON GARANTIASpecificationsSanding
belt drive motor: 3HPDust
suction motor: 1/2HPSanding
belt size: 5" X 73”Applicable
rod diameter: Ø5-Ø80mmFeed
speed (Variable): 1-20m/mmSanding
Belt Linear speed: 900m/mmNet
weight: 250kgsGross
weight: 320kgsMachine
Dimensions (L*W*H): 750*100*1350mmPacking
Dimensions (L*W*H): 880*850*1520mm
Design
and specifications are subject to change witho...
AMXmachinery
ALIMENTADOR AUTOMATICO – 3 RODILLOS - 1 HP
PARTE: 2EX-XF-30 – ALIMENTADOR AUTOMATICO – 3 RODILLOS - 1
HP
Nuevo con garantía
1 HP – 230V 1 FASE
1 HP – 230V 3 FASES (OPCIONAL 460V)
3 RODILLOS
4 VELOCIDADES CAMBIANDO COMBINACION ENGRANES
VELOCIDAD 13, 26, 36, 72 PIES POR MINUTO
ADELANTE Y ATRAS
RUEDAS 4-3/4″ x 2-1/4″
SUSPENSION ¾”
PESO 65 KG
AMXmachinery
PEGADORA CANTO CHAPA - ESPESOR 0.5 - 5.0 MM
PARTE # 3NN-VENEERPLUSG2 - PEGADORA DE CANTO LONGITUDINAL PARA CHAPASistema de pegamento integrado Machine SpecificationVeneer Strip Thickness (depending on veneer condition)：approx. 0.5 ~ 5.0 mmVeneer Strip Length：min. 350 mmVeneer Strip Width：min. 45 mmProduction Speed：approx. 8 ~ 45 m/min. (depending on veneer strip thickness)Electric Power：approx. 10.8 kwCompressed Air：5 barHeating Temperature：100 ~ 220 °CHeating Zone：1500 mmDimensions (L x W x H)：2550 x 2100 x 1600 mmNe...
AMXmachinery
PARTE: 4BA-DPM-ED-2141 – SIERRA ESCUADRADORA VERTICAL – CAP. 2100 MM X 4100 MM X 60 MM
PARTE:
4BA-DPM-ED-2141 – SIERRA ESCUADRADORA VERTICAL – CAP. 2100 MM X 4100 MM X 60 MM
Nueva con garantía
Demo
model with about 30 hours on it
Specifications
-
Comes with digital readouts on the vertical and horizontal axis, readout in
decimal inches or mm
-
Processing sheets both horizontally and vertically
-
Cutting height is 2100mm
-
Cutting length is 4100mm (161") Actual overall length of machine is 16’.4”
-
Weight 2400 lbs
-
Thickness of cut i...
