Descripción

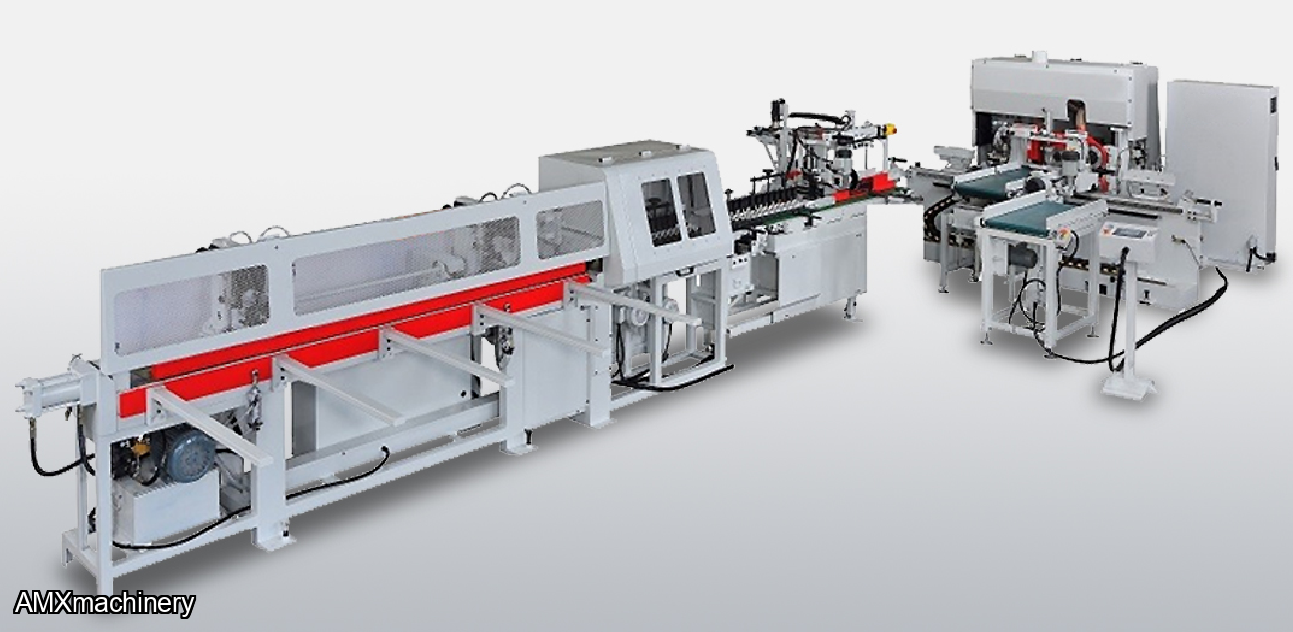

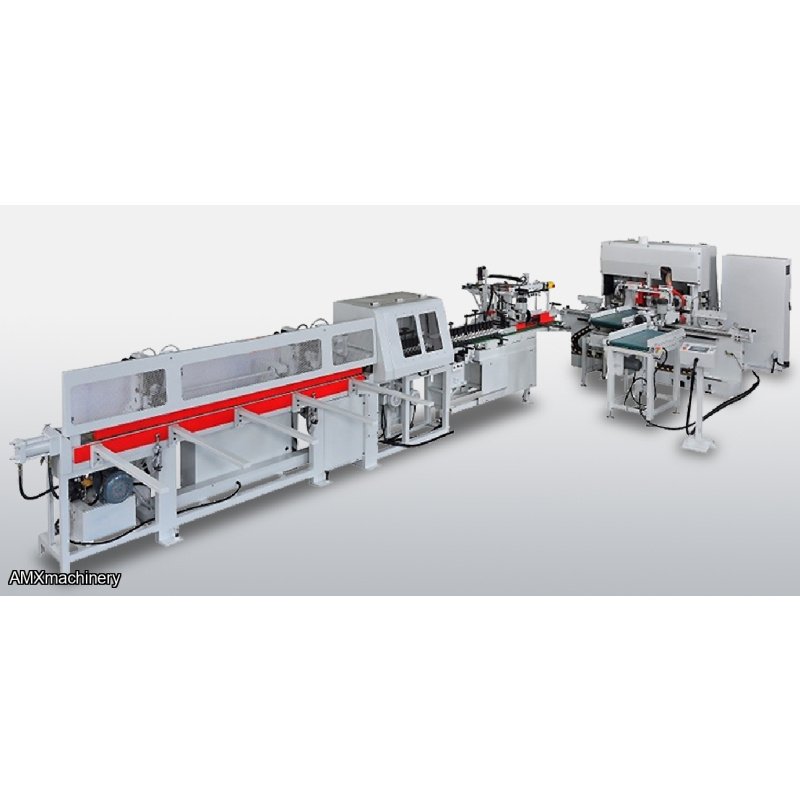

FINGER JOINT SEMI AUTOMATICA PARTE: 2CK-FL14
Represents a state-of-the-art finger jointing production line, meticulously crafted to transform extra short wood waste into valuable materials, all the while upholding an exceptional balance between performance and cost-effectiveness. Its compact design with multiple automatic features and options makes it an ideal solution for a small sized finger jointing operation. By utilizing a solitary shaper setup, this system delivers extraordinary value in performance and affordability, positioning it as an enduring revolutionary force within the woodworking sector.
- Semi-automatic finger jointer with a small footprint
- Excellent performance-to-cost ratio
- Right/left finger shaper scores, profiles, and glues both right and left joints in a single machine
- Workpieces automatically travel between profiling & gluing stations
- Production speed: 2~3 cycles/min
- Length of cut is calculated by an encoder and set on a touch screen for increased accuracy with a finished board tolerance of 0 to 0.08” (0 to 2mm)
- Manual rotary table design turns pieces to allow processing of both ends on a single shaper system – optional automatic rotary table available

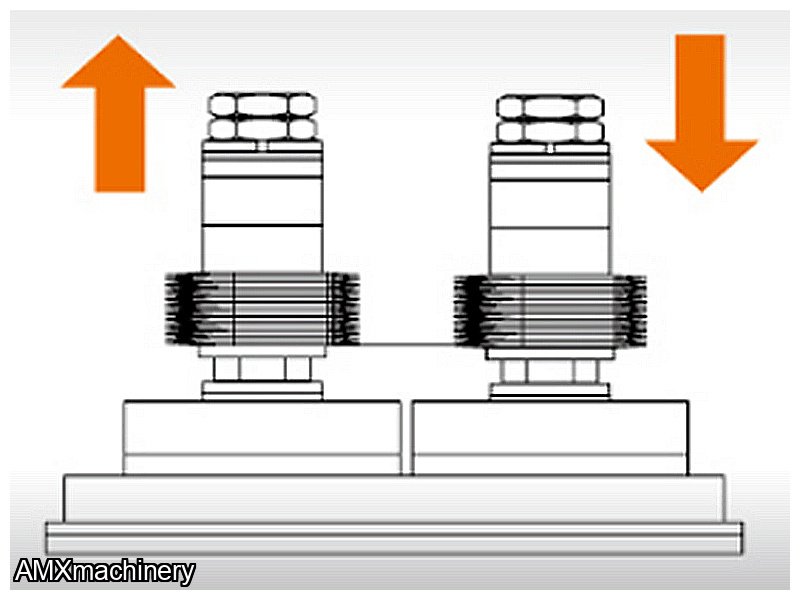

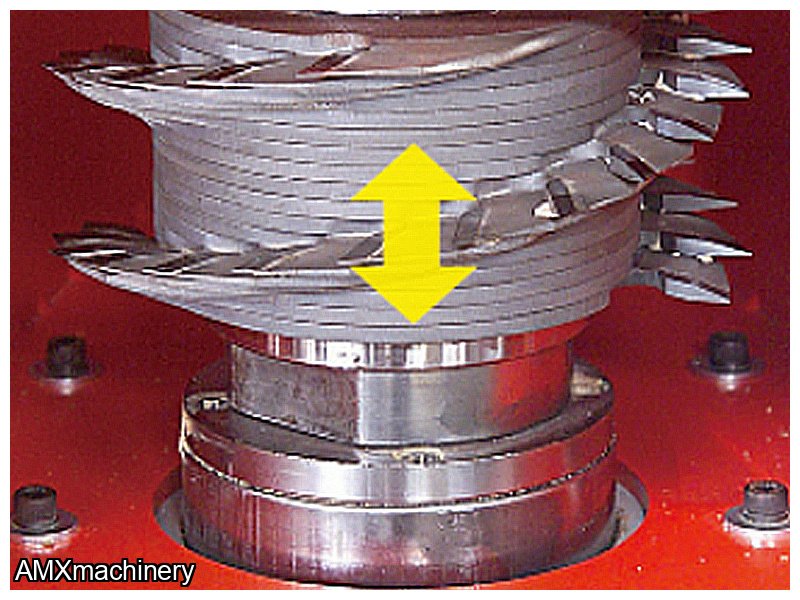

- Optional automatic adjustment of the scoring blades and shaper section for left & right profiles
- Presses available in various lengths to suit your production needs
- Applicable for machining extra short wood waste of 4” (100mm)
- Only two operators required for max production
- Hopper loader mounted for workpieces to automatically feed into the assembly press comes standard with the FL-24
- As standard we use PVAc glue, but we have optional gluing systems for PUR, MUF, EPI, etc. available upon request
- Synchronized jointing and length cutting is performed in a 2-step process within the F-A05 or A07 single stage automatic infeed finger assembler
Includes the following:
F-C03W01 Finger Shaper (Injection Glue System)
DESCRIPTION | |
Max. available width working table | 650 mm (25.6”) |
Range of workpiece length | 100~1000 mm (4.7~27.5”) |
Range of workpiece width | 20~60 mm (3.9~39.4”) |
Range of workpiece thickness | 30~160 mm (1.2~6.3”) |
Trimming saw speed | 2800/3400 RPM |
Finger cutter speed | 6000 RPM |
Finger cutter diameter (in/out) | ø70 / ø160 mm (ø2.8 / ø6.3) |
Dust out diameter | 6 x 2” |
Machine dimensions (L x W x H) | 4425 x 1815 x 1855 mm (175 x 72 x 73”) |
POWER REQUIRED | |
Table-drive motor (Infeed & Outfeed) | 1/2 HP x2 |
For conveyor motor | 1/2 HP x2 |
Scoring saw motor (Top & Bottom) | 2 HP |
Trimming saw motor | 5 HP |
Shaper cutter motor | 15 HP |
* 1: Injection type glue applicator – using PVAc glue only
* 2: Finger cutters – 10 pieces
* 3: Comes with saw blades
F-D06-1.4 Roller Table
DESCRIPTION | |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
PARTE: 3AM-H-330H - SIERRA CINTA PARA METAL - CONFIGURACION ALTA
PARTE: 3AM-H-330H - SIERRA CINTA PARA METAL - CONFIGURACION ALTASaw Band Tensioning Method: ManualCore Components: Gearbox, Gear, Bearing, Engine, MotorApplicable Industry: Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, OtherCore Selling Point: High-AccuracyBlade Tension: ManualVice Clamping: Hydraulic with ManualCutting Feed: Hydraulic steplessMain Motor(kw): 4Coolant Motor (kw): 0.75Max. Cutting Capacity(mm): R...
AMXmachinery1
SIERRA ESCUADRADORA - 10 PIES
PARTE: 2CK-P305Is built for the budget conscious user that still wants precision and accuracy. The machine has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (1 HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a ro...
AMXmachinery1
ASTILLADORA - VERTICAL - 15 X 4 PULGADAS
PARTE: 2TA-WG-1504V - ASTILLADORA - VERTICAL - 15 X 4 PULGADASFeatures:A specially designed, powerful crusher for different materials such as wood, MDF, particle board,plastic, rubber, corn cob, etc.Excellent wearing ability and impact-resistant for time & labor saving.Large busting capacity and easy feeding system.The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usageCutter head angle cutting design allows aggressive cutti...
AMXmachinery1

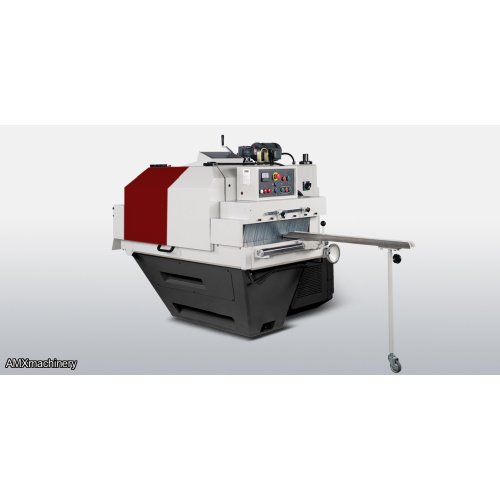

SIERRA MULTIPLE - 1 SIERRA - 12 PULGADAS
