Identificador: 2020 Abierta

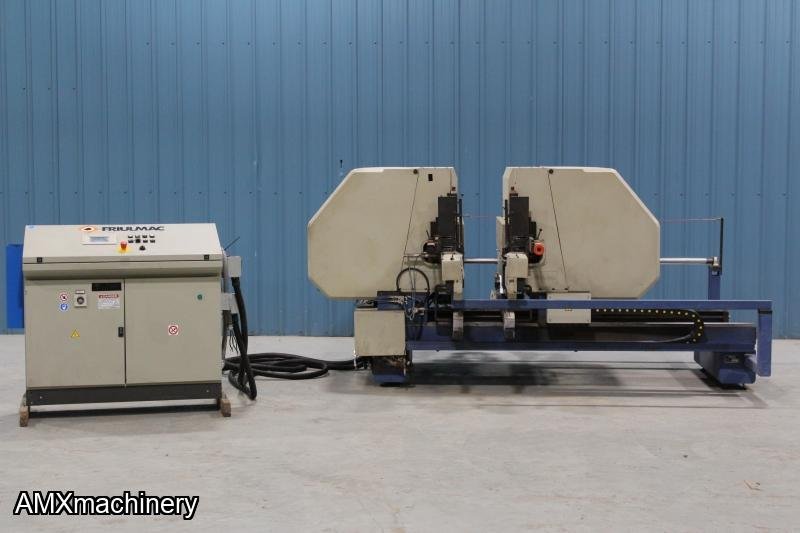

ESPIGADORA DOBLE DE CADENA - FRIULMAC

AMXmachinery

Contacte al Vendedor

Descripción

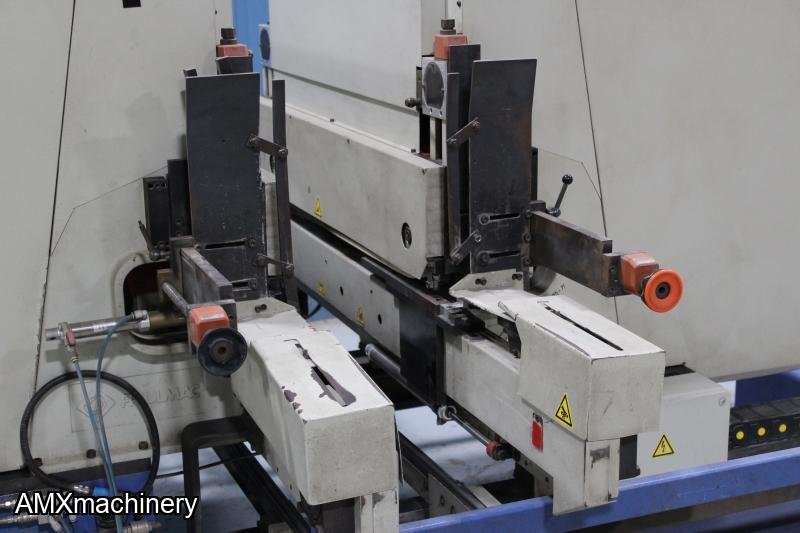

PARTE: 12416 – ESPIGADORA DOBLE DE CADENA - FRIULMAC

USADA - BUENAS CONDICIONES

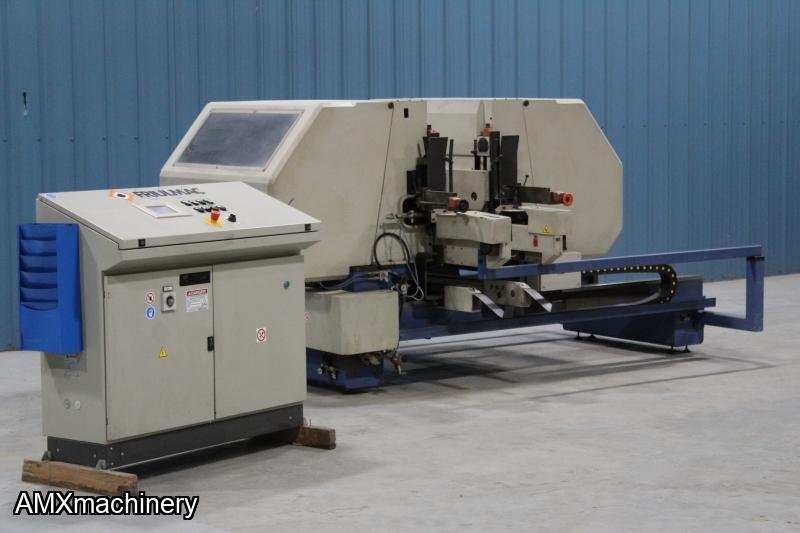

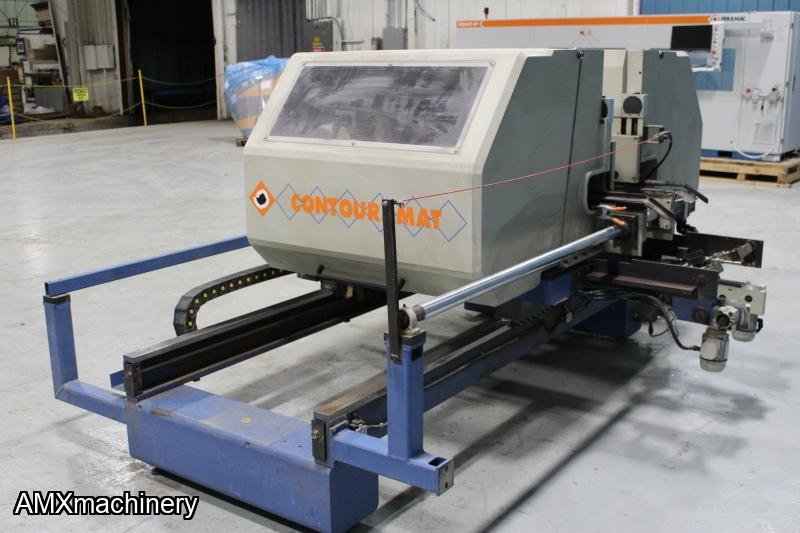

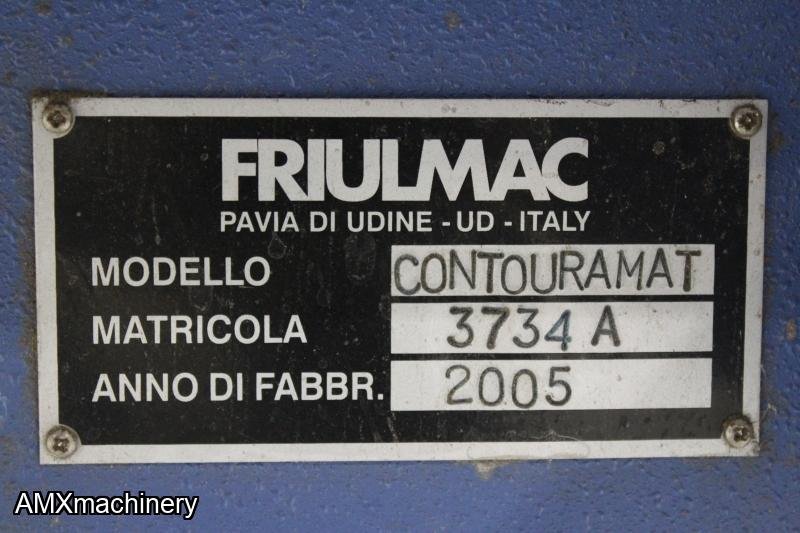

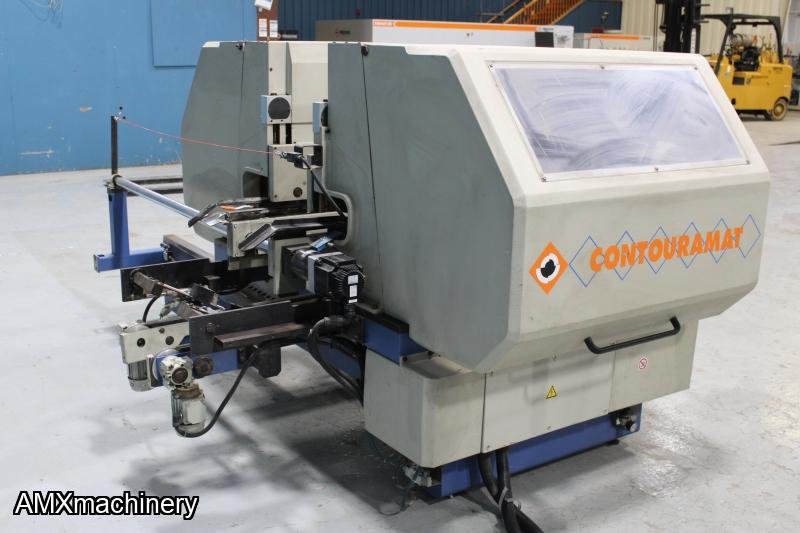

Model Contouramat

The ideal solution for double-end trimming and coping, with only one operator required!

Working Length: 115 - 1500mm (4.52" - 59")

Working Width: 30mm - 250mm (1.18" - 9.84")

Working Thickness: 12mm - 50mm (0.47" - 1.96")

Configuration: Double-End Trim & Double-End Cope/Profiling

Left & Right Trim Motors: 4 HP Each

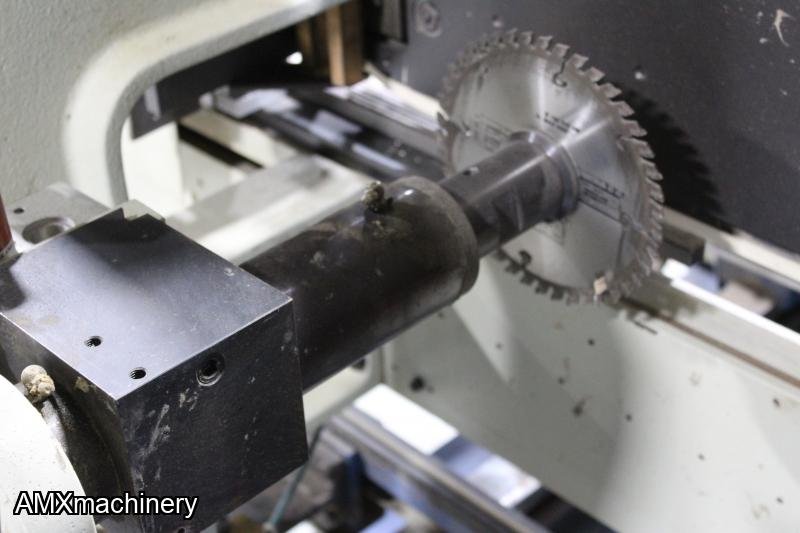

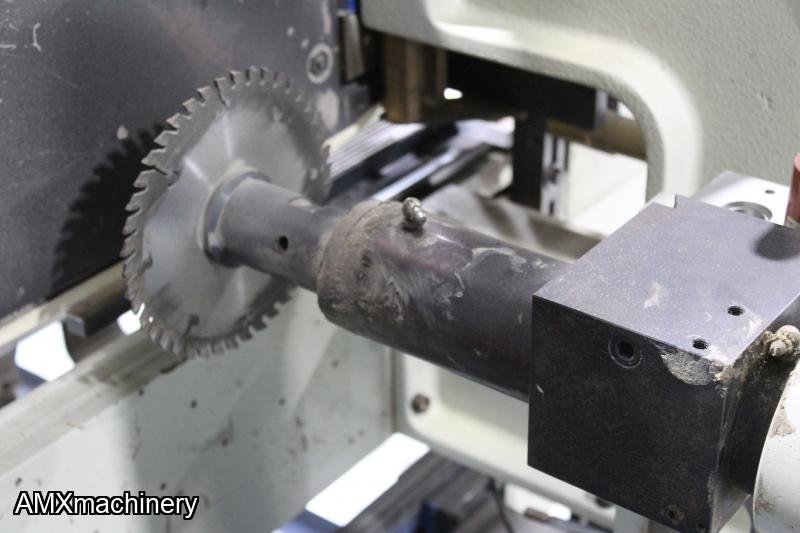

Trim Blade Diameter: 125mm - 180mm

Trim Blade Bore: 30mm

Left & Right Cope/Profiling Motors: 7.4 HP Each

Profiling Cutterhead Diameter: 160mm - 220mm

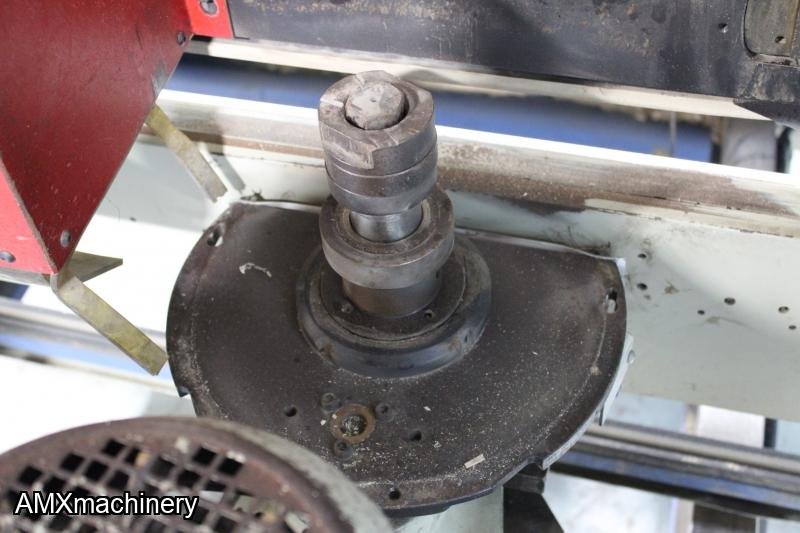

Cope/Profiling Spindle Diameter: 40mm

Cope/Profiling Spindle Speed: 6,800 RPM

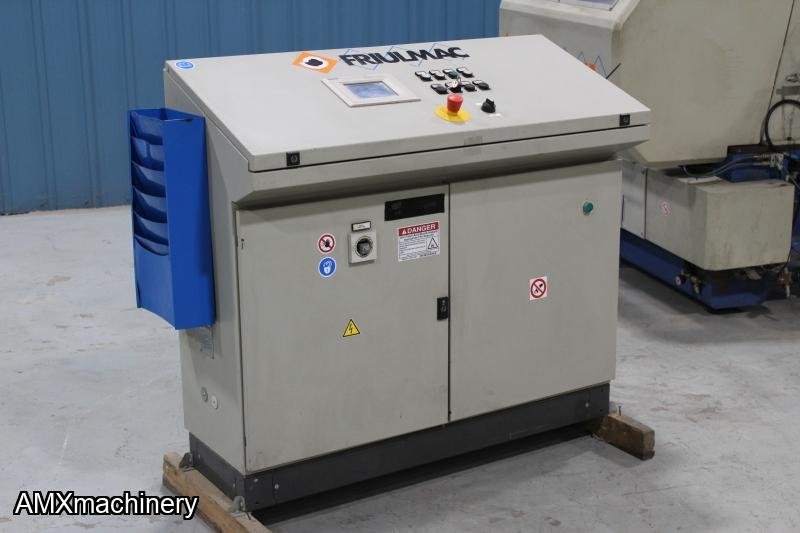

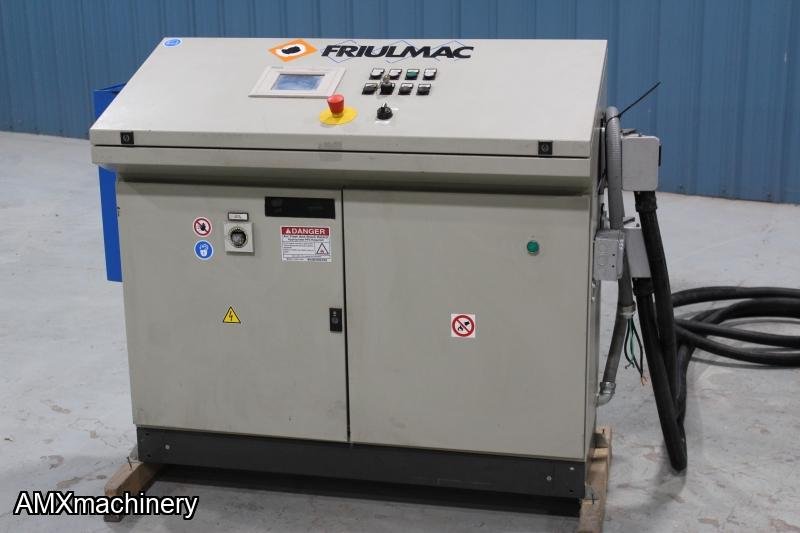

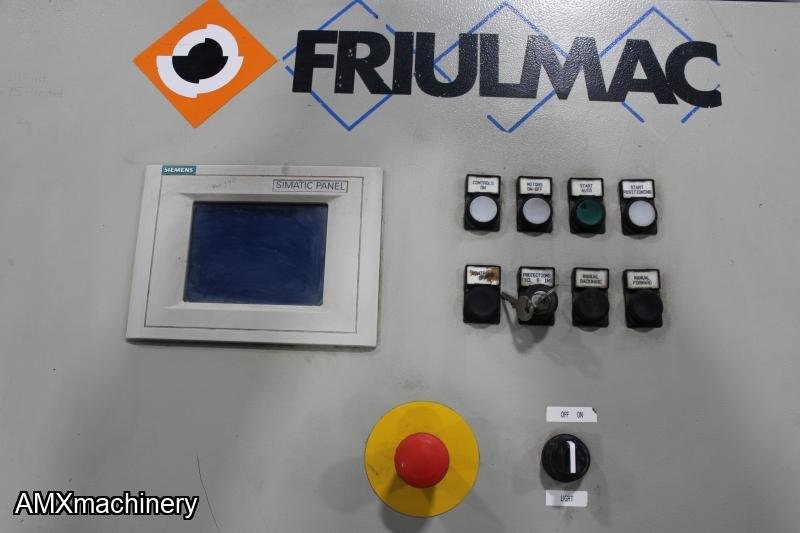

Motorized/Programmable Open/Close

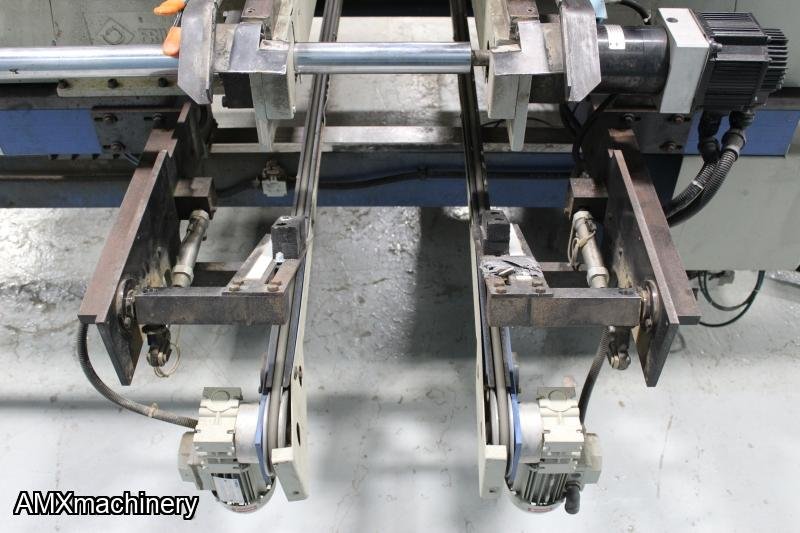

Dual Return Conveyor Belts

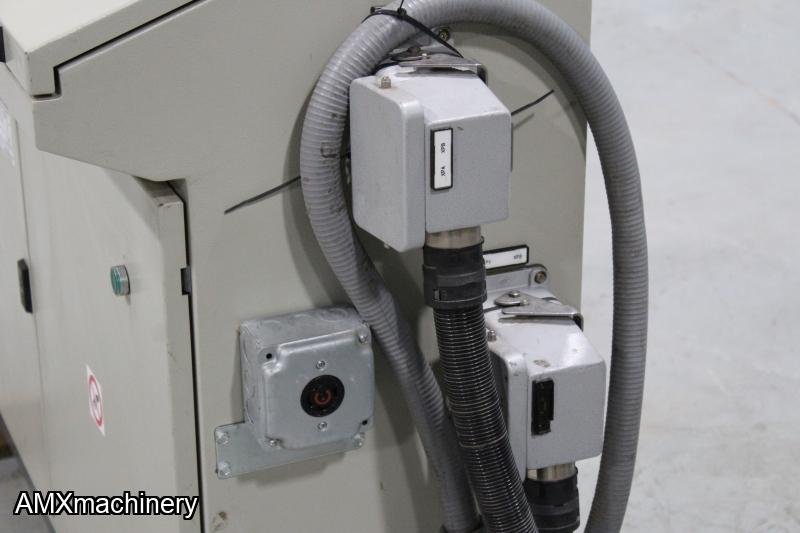

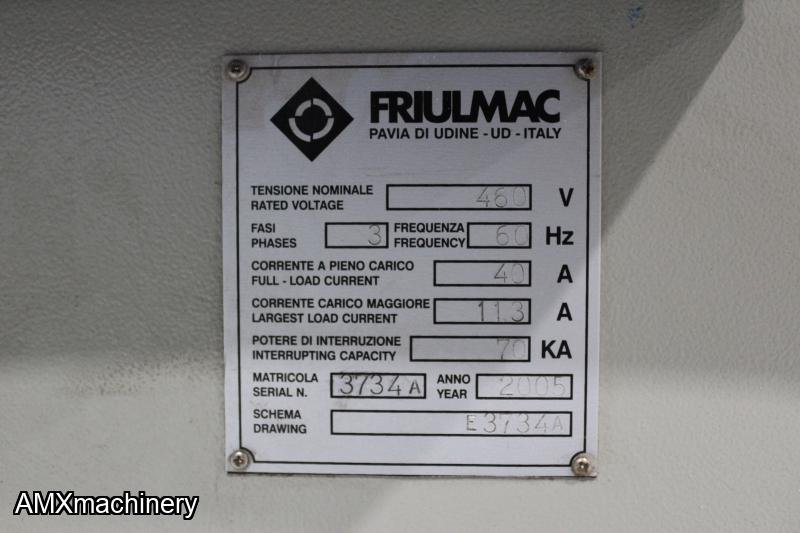

460v, 3ph

Year: 2005

Pago y Devoluciones

Forma de pago: Transferencia/Deposito Bancario
