Description

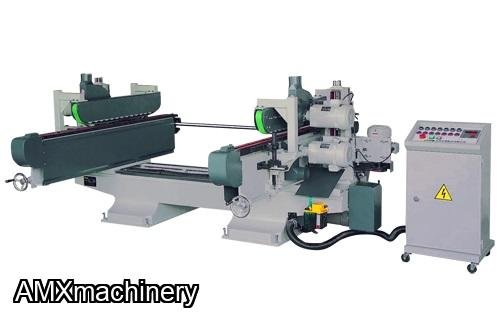

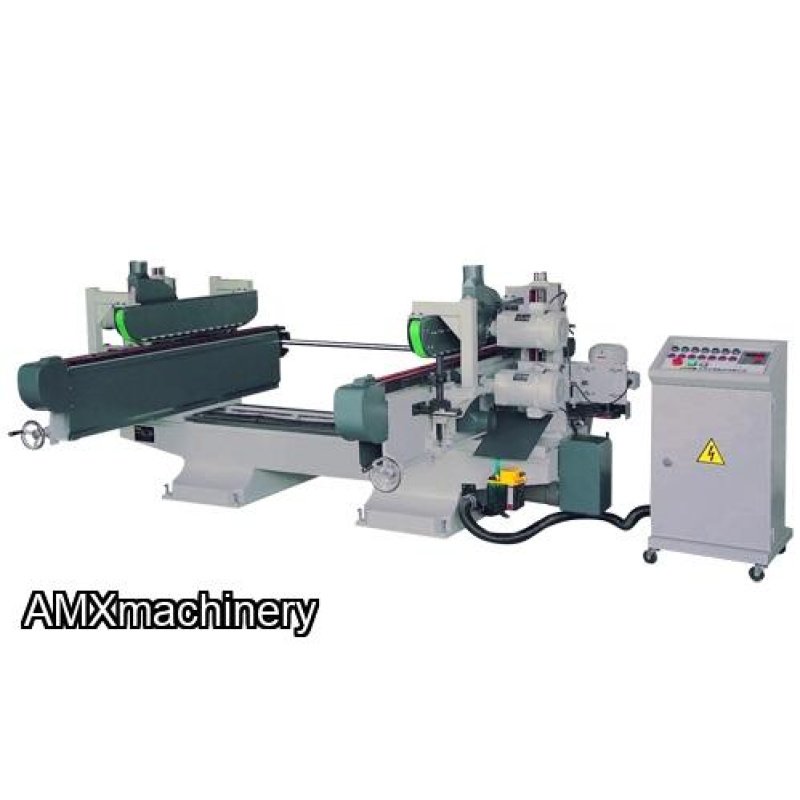

PARTE: 2TA-SET-46TS – ESPIGADORA DOBLE DE CADENA – 6 CABEZAS – 48” ANCHO
Nueva con garantia
The automatic high-speed through feed device allows for perfect finishing at speeds ranging from 12 ~ 52 FPM.
Suitable for mass production of wood working factory for processing of double end cutting, tenoning, grooving, moulding, and sanding.
It is a powerful machine great for heavy-duty production.
In addition to the double end cutting, all the settings and other processing can also be executed with high accuracy.
Since the machine is so versatile, it should be one of the most satisfactory equipments for bulk production lumber-processing factories.
The specially designed numeric controller allows quick setting of sizes, for the tolerance within 0.004”.
Variable speed, through feed, wide rubber pad, spring loaded dots conveyor for the best finish selections.
Heavy-duty pressure rolls at top of wide width conveyor to hold the material tight to prevent sliding during the cutting process.

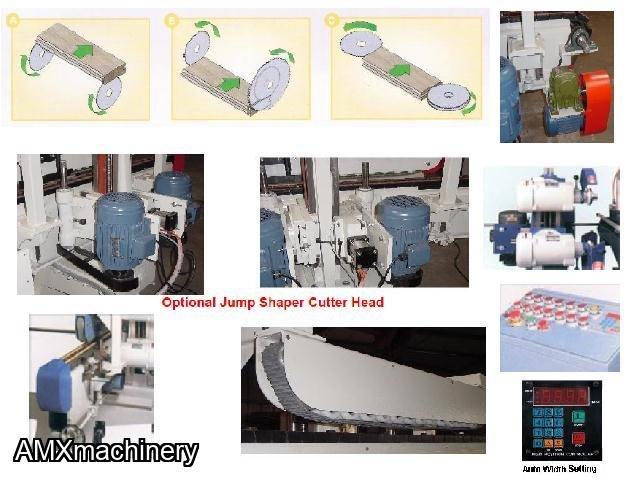

Shaper head can be moved up & down, forward & backward.
Equipped with industrial motor for full power cutting capacity.
Video: https://vimeo.com/639803360
|
SPECIFICATIONS |
SET-46TS |
SET-86DET |
SET-810NU |
|
Max. Working Size |
|
|
|
|
Thickness |
4" |
4" |
4" |
|
Length |
48" |
96" |
96" |
|
Miter Saw Blade |
10" x 1" Dia. |
12" x 1" Dia. |
12" x 1" Dia. |
|
Grooving Saw Blade |
10" x 1" Dia. |
8" x 1" Dia. |
8" x 1" Dia. |
|
Shaper Cutter |
6" ~ 8" x 1" Dia. |
6" ~ 10" x 1" Dia. |
6" ~ 10" x 1" Dia. |
|
Feed Speed |
12' ~ 52' Variable |
20' ~ 66' Variable |
20' ~ 66' Variable |
|
Motor |
3 PH, 220/440 V |
3 PH, 220/440 V |
3 PH, 220/440 V |
|
Trim Saw |
3 HP x 2 |
3 HP x 2 |
5 HP x 2 |
|
Grooving |
2 HP x 2 |
2 HP x 2 |
3 HP x 2 |
|
Vertical Shaper |
5 HP x 2 |
7-1/2 HP x 2 |
7-1/2 HP x 4 |
|
Sanding |
--- |
--- |
2 HP x 2 |
|
Feeding |
1 HP x 1 |
2 HP x 1 |
3 HP x 1 |
|
Width Setting |
½ HP x 1 |
½ HP x 1 |
½ HP x 1 |
|
Machine Size (L x W x L) |
8' x 8' x 6' |
14' x 9' x 5' |
14' x 14' x 5' |
|
N.W. |
2800 LBS |
9800 LBS |
16500 LBS |
|
G.W. |
3400 LBS |
11000 LBS |
19800 LBS |
