Identificador: 170
Abierta
Descripción
PARTE: 2TA-SET-100 - 3YC-YRT-115 - ESPIGADORA - 2 MESAS - AMX MACHINERY
Nueva con garantia
- Built with two working tables for high efficiency operations.
- Table longitudinal traverse is pneumatic operated for smooth cutting.
- Tenon’s width is easily adjustable by hand wheel.
- Convenient tenon depth adjustment from outside without removing covers.
- Table can be tilted to 20 degrees at each side for angular tenon.
- Cutter moving speed is infinitely adjustable to achive the best results.
- Pneumatic hold down clamps and pneumatic cutting movement for smooth finish.
- Fully automatic tenon produce cycles.
- Automatic lubrication system.
- Powerful industrial motor for maximum cutting capacity.
- Precision sealed long-life bearing.
- Heavy cast iron frames and table for durability usage.
SPECIFICATIONS | SET-100 | CM-100 |
Max. Width of Tenon (Mortise) | 4" | 4" |
Max. Depth of Tenon (Mortise) | 2" | 2-3/8" |
Oscillation Rate | 13 ~ 80 PCS/MIN. | 7 ~ 200 STROKE/MIN. |
Table Tilts | 20° | 20° |
Spindle Drive Motor | 3 HP | 3 HP |
Cutter Feed Motor | 1 HP | ½ HP |
Cutter Speed | 9500 RPM | 9500 RPM |
Table Vertical Adjustment | 3" | 3" |
Max. Thickness | 4" | 4" |
Max. Stoke Width | 5" | 4" |
Air Pressure | 80 PSI | 80 PSI |
Machine Size | 63" x 51" x 51" | 51" x 47" x 47" |
N.W. | 2200 LBS | 1540 LBS |
G.W. | 2640 LBS | 1880 LBS |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PRENSA DE MEMBRANA – 1 MESA – 4 X 8 PIES
PARTE:
2LB-PT-VAC481 – PRENSA DE MEMBRANA – 1 MESA – 4 X 8 PIES
Nueva con garantíaFeatures:Special design for using heating
and vacuum pressure to add form or film skin to a shaped, curved or uneven
surface material. Also, it can perform as print heat transfer.Suitable for wood veneers or PVC
sheets.Automatic controlled by PLC for
suitable and easy operation.Double-layer and fully sealed
heat preservation.Advance heating temperature
digital control by computer for the best adjus...
AMXmachinery
PARTE: 12321 - DOBLADORA DE CORTINA - 6'6" x 10 GA
PARTE: 12321 - DOBLADORA DE CORTINA
- 6'6" x 10 GA
USADA - BUENAS CONDICIONESModel no. QHD-6020Bending capacity:
6'6" x 10 ga. mild steelTonnage
capacity: 70
tonsOverall length of bed & ram: 80"Distance between housings: 61"Stroke:
6.3"Open
height:
12.2"Throat
depth:
13"Width of
bed:
4.9"Speeds
approx....
AMXmachinery

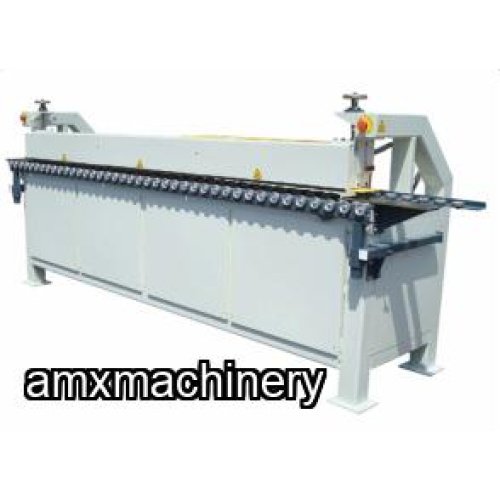

POSTFORMADORA CONTINUA 1 LADO
PARTE # 2EV-6000 - POSTFORMADORA CONTINUA 1 LADO - EVANS 6000220 Volt 1 phase, 220 volt 3 phaseStandard Features:Floating Laminate Trimmer (conventional router)Three phase machines require a separate 110 connection Quick-change 90 and 180 degree roller assembles.Infrared radiant panel heater (instant on / off)Foot print: 130”L X 36”W X 50”HMaximum Feed rate 15 feet per minute.Feed motor: 1/3 hp variable speed DC drive.Crated dimensions 125 x 40 x 60Created weight 1750 LBS....
AMXmachinery
PARTE: 1SL-DC-SE2500 - SIERRA ESCUADRADORA - 2500 MM
PARTE: 1SL-DC-SE2500 - SIERRA ESCUADRADORA - 2500 MMNUEVA CON GARANTIAMOTOR PRINCIPAL: 5 HP, 220V, 60 Hz, 3 FASEMOTOR DISCO INCISOR: 1 HP, 220V, 60 Hz, 3 FASESDIAMETRO DISCO PRINCIPAL: 12"DIAMETRO DISCO INCISOR: 4-3/4"DIAMETRO DEL EJE PRINCIPAL: 1-3/16"DIAMETRO DEL EJE INCISOR: 20 MMVELOCIDAD DEL DISCO PRINCIPAL: 2 VELOCODADES, 4,000 Y 6000 RPMVELOCIDAD DISCO INCISOR: 8000 RPMDIMENSIONES DE LA MESA CON EXTENSIONES: 62" X 63"ALTURA DE LA MESA: 36"DIMENSIONES DEL CARRO DESLIZABLE: 14" X 98-...
