Identificador: 1750
Abierta
Descripción

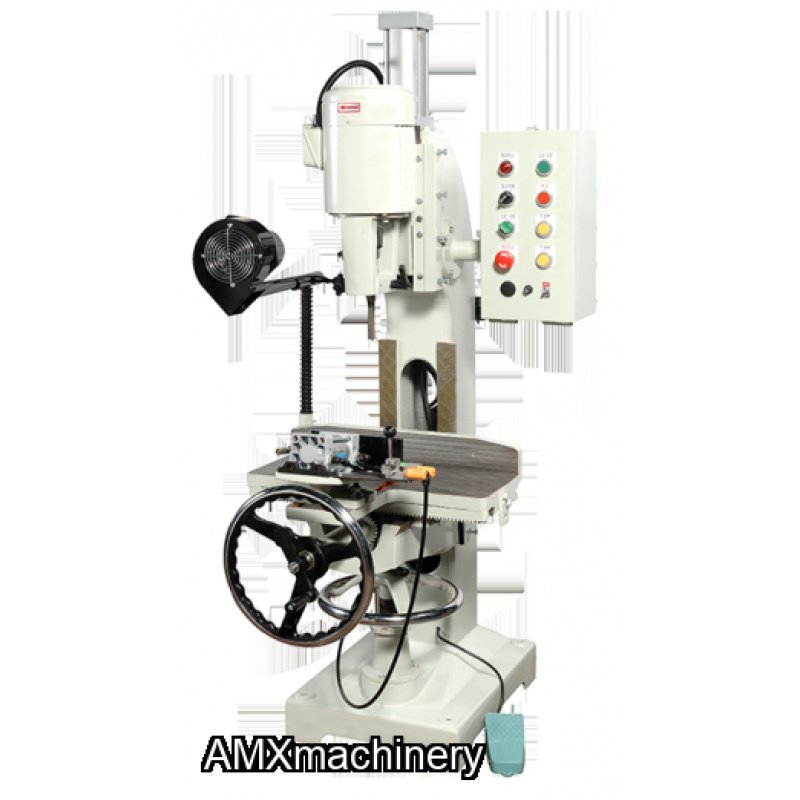

PARTE: 2CK-PCM120
- Power stroke of head permits easy, fast and accurate successive cuts.
- Separate fan blower to keep work clean and free from dust and chips.
- Manual adjustable table height and lateral position
- Heavy duty cast iron construction.
- Convenient centralized control panel
- Foot pedal actuated cycle.
- Pneumatic workpiece clamping by lever
|
Chisel range |
1/4″~3/4″ |
|
Motor |
2HP |
|
Spindle speed |
3400 RPM |
|
Table |
16-3/4″ x 21-1/4″ |
|
Table tilts |
30o |
|
Air pressure |
8KG |
|
Clamping cylinder |
2.5” (63mm) |
|
Head traveling cylinder |
3.15” (80mm) |
|
Table cross travel |
5” |
|
Table longitudinal travel |
18” |
|
Table vertical travel |
12” |
|
Max. stock width |
12” |
|
Max. mortising depth |
4” |
|
Machine weight |
572 lbs |
|
Shipping weight |
726 lbs |
|
Shipping dimension |
35” x 38” x 70” (880x960x1780mm) |
