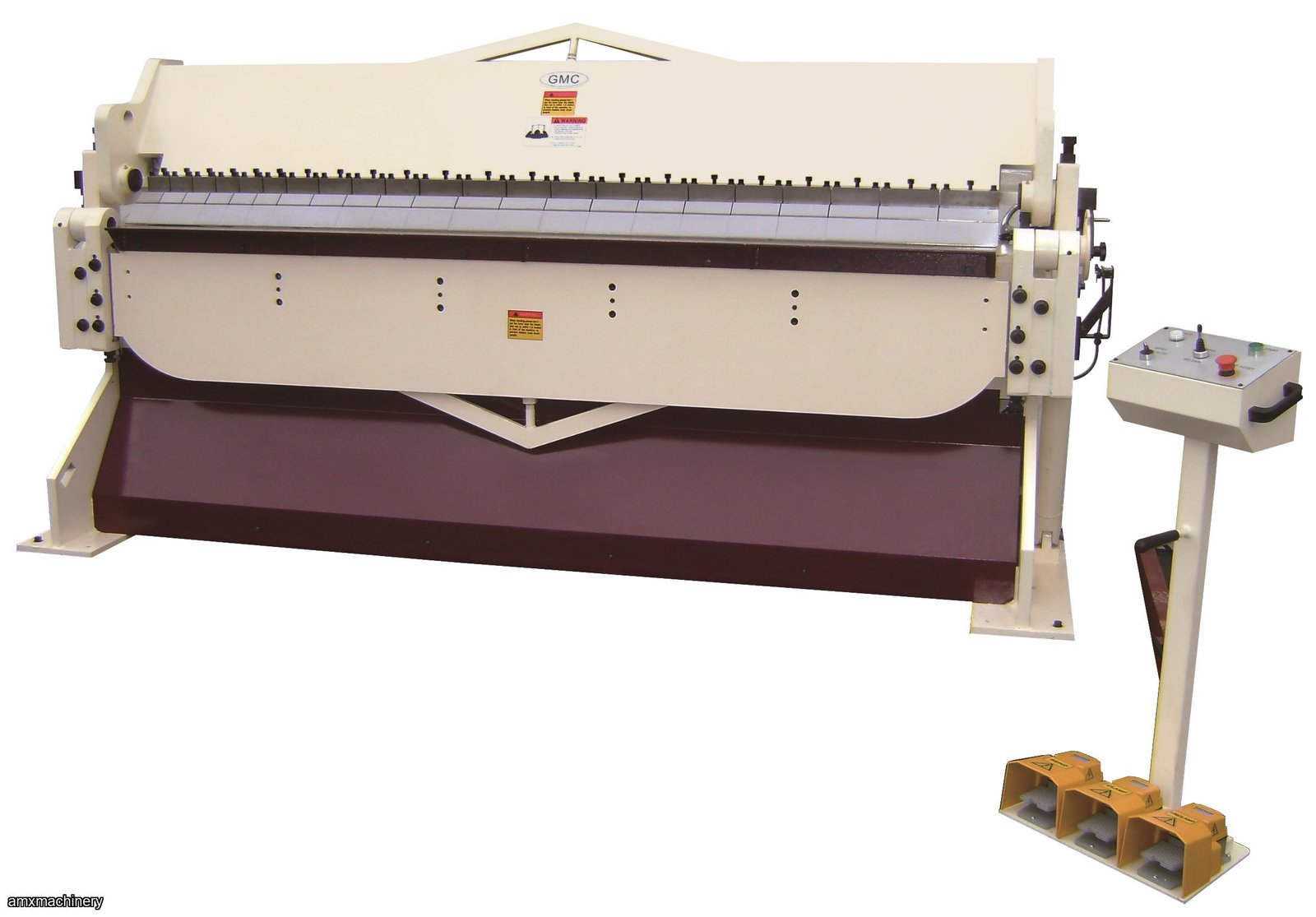

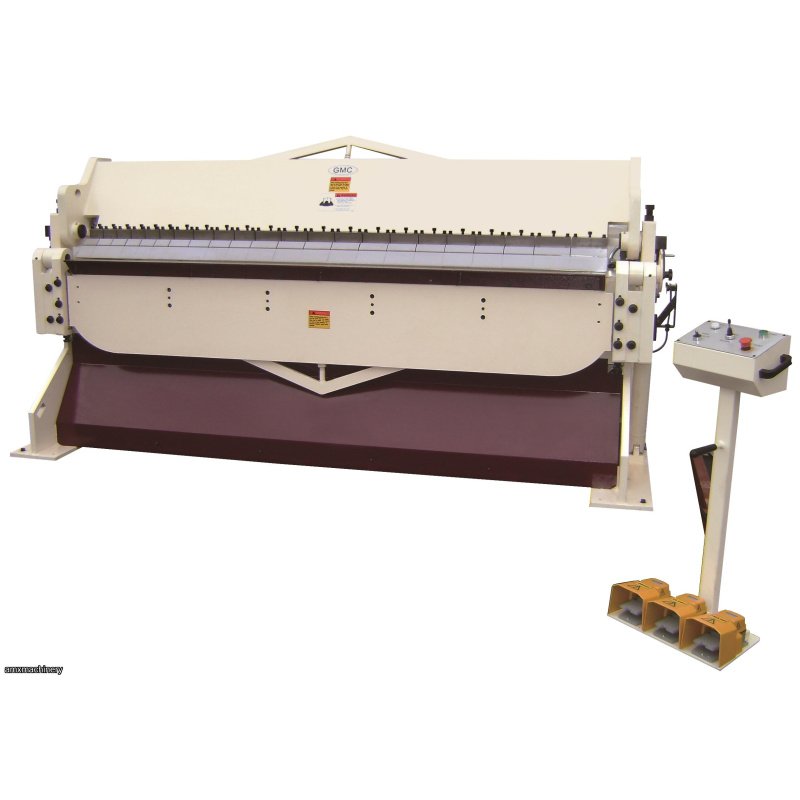

DOBLADORA HIDRAULICA

PARTE # 2MA-HBB-0412 - DOBLADORA HIDRAULICA - USO RUDO

Model # 2MA-HBB-0412, 4’ x 12 Ga

Model # 2MA-HBB-0410, 4’x 10 Ga

Model # 2MA-HBB-0612, 6’ x 12 Ga

Model # 2MA-HBB-0610 , 6’x 10 Ga

Model # 2MA-HBB-0812, 8’ x 12 Ga

Model # 2MA-HBB-0810 , 8’x 10 Ga

Model # 2MA-HBB-1014, 10’ x 14 Ga

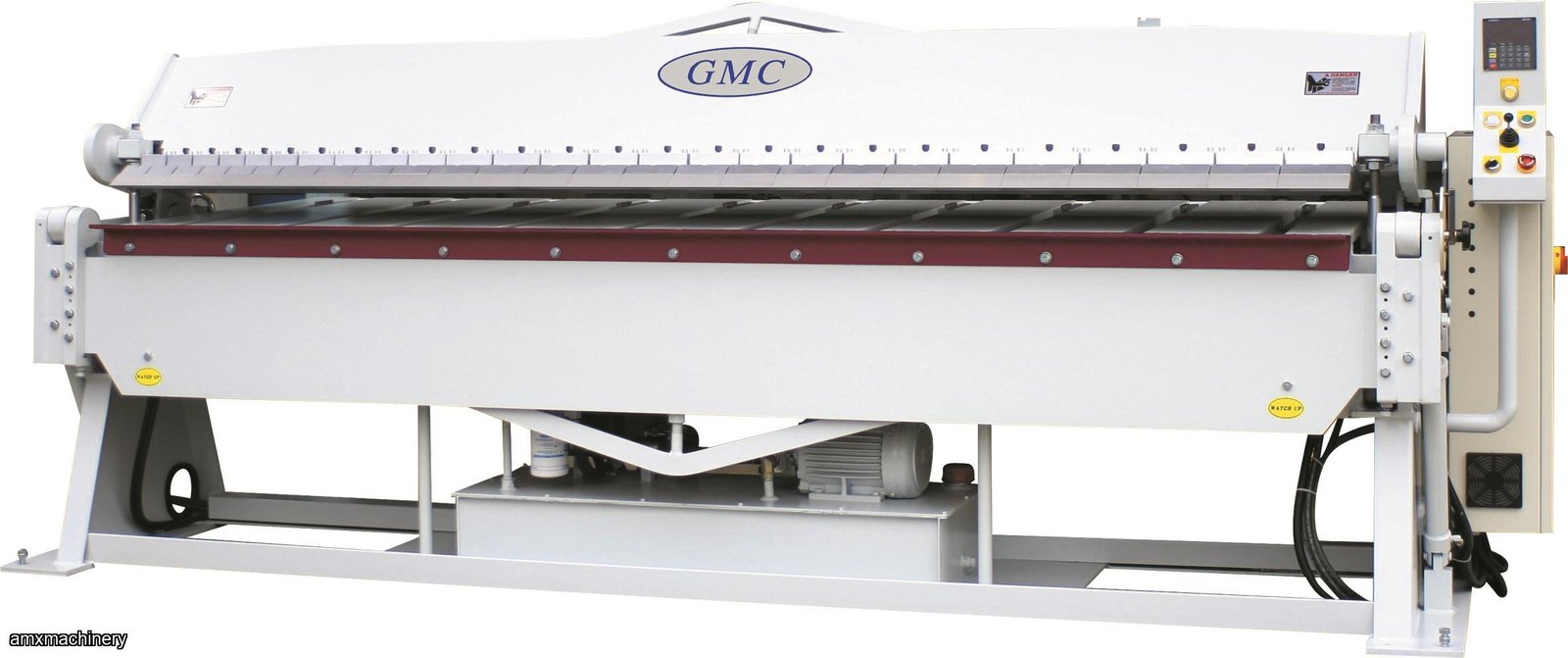

Model # 2MA-HBB-1010, 10’ x 10 Ga

Standard Features:

·         Taiwan Machines

·         ISO 9001 certified

·         Hydraulic adjustment for opening

·         Hydraulic power clamping for workpiece

·         26” manual back gauge

·         1” manual beam adjustment ( front and back )

·         Min. reverse bend is ¾” (20mm)

·         Heavy welded all steel construction for maximum rigidity

·         Hydraulic logic system centrally located and quiet

·         A wide guidebody ensures strong, stable, smooth & accurate movement

·         Total pieces fingers assortment:

·         HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc

·         HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs

·         HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs

·         HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs

·         Central control panels on each side for convenient operation

·         Jog and auto operation modes

·         Overload protection and disconnect switch

·         One year warranty for parts

Standard Equipment

·         Assorted fingers

·         26” manual back gauge

·         Angle set up dial

·         Hydraulic clamping system

·         Foot pedal control for hydraulic clamping & auto mode

Optional Equipment:

·         One-piece straight finger instead of assorted fingers , extra

·         Safety fence for enclosure of the front side of the machine

Specifications:
