Descripción

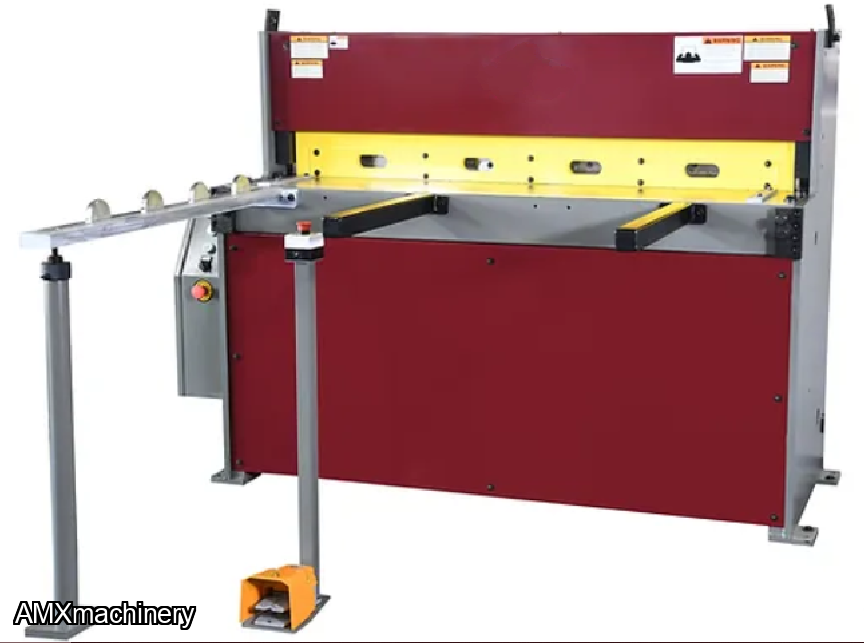

CORTADORA DE METAL HIDRAULICA 4' x 10 Ga PARTE: 2GM-HS-0410MD
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet Rexroth hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- 60” long squaring arm with inch / mm scale
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot pedal control
- One set of blades
Cutting Capacity: Mild Steel Stainless Steel Minimum Capacity |
4' x 10Ga. 4' x 14Ga. 24 Ga. |
| Blade Length | 52" |
| Strokes per minute adjustable | 16-20 |
