ID: 91
Open
Description

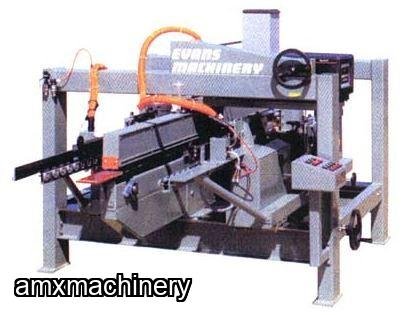

PARTE # 2EV-6600 - CORE BUILDER - EVANS 6600
Maquina para hacer el centro o la base de las cubiertas de cocina
The Evans machinery model 6600 core builder produces a quality core every time. Within one pass, this machine bonds the build up to both sides of the panel using hot melt adhesive applies T-Mold for no drip edges and shapes your core to the required profile. The model 6600 Core Builder operates at a feed rate of 20 FPM as it travels on a non-skid straight line feed system. The model 6600 Core Builder is a smart investment by helping you and your company save time and money.
MACHINE SPECIFICATIONS:
Machine Length | 158" |
Machine Width | 89" |
Machine Height | 72" |
Working Height | 36" |
Electrical | 220v 60 Hz 3 Ph |
Air Supply | 100 PSI |
Edge Shaper | 5 HP 5850 RPM 1.25 Spindle Diameter |
Hot Melt Unit | 20 lbs Capacity 1500 Watt Heater |
Feed Rate | 20 FPM |
Center Feed Drive | Non-Skid Pad |
Board Width | 16" Min. to 48" Max |
Board Thickness | 2" Maximum |
Build Up Width | 3/4" Min. to 1-1/2" Max. |
Build Up Thickness | 1-1/2" Maximum |
T-Mold Slotter | 1-1/2 HP 3600 RPM .875" Spindle diameter 8" Blade |
Groover | 1-1/2 HP 3600 RPM .875" Spindle diameter 8" Blade |
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
Post Message
Sign in to ask the seller a question.
AMXmachinery
LIJADORA DE 8 RODILLOS - QUICKWOOD
PARTE: 12299 - LIJADORA DE 8 RODILLOS
- QUICKWOOD
USADA -
BUENAS CONDICIONES
Technical
Specifications:
Throughfeed:
2-12 m/min.
(8)
spindles
300-1150
RPM spindle speed
3-16 RPM
rotation speed
540mm
spindle length
(6) dust
collection ducts 2100kg
Dimensions 2240 x 2630 x 2050 mm
AMXmachinery
PARTE: 12539 - TRITURADORA - BLOAPCO - MODELO 3CAXS3036BV - 40 HP
PARTE: 12539 - TRITURADORA - BLOAPCO - MODELO 3CAXS3036BV
- 40 HP
USADO - BUENAS CONDICIONES
(3) Rotores 36" ancho
Abertura alimentación superior 30" x 36"
Motor
Baldor Reliance 40 HP, 3/60/ 230-460 V, 1775 RPM
Descarga inferior aproximada 28" x 28
AMXmachinery
PARTE: 12478 - CEPILLO 1 CARA - 20” ANCHO - 5.5 HP - 220V, 3 FASES - JET
PARTE:
12478 - CEPILLO 1 CARA - 20” ANCHO - 5.5 HP - 220V, 3 FASES - JET
USADO - BUENAS CONDICIONES
AMXmachinery
LIJADORA 52"
PARTE # 2TA-WS-DA5275 - LIJADORA - CALIBRADORA - 52" ANCHOCabezales: 2 cabezasCapacidad: 52" ancho x 75" largoWith the two head wide belt sander, you can accurate heavy sanding your stock with the first drum head and with the second combinational head you can give the unlimited fine finish.Rugged heavy-duty sheet metal construction designed for durability usage.Full power industrial motors drive sanding and auto infeed smoothly.Infeed and outfeed are spring loaded hold down rollers to ensure pos...
