Identificador: 109
Abierta
Descripción

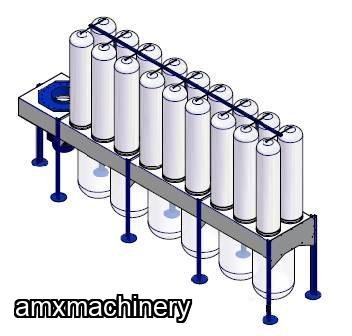

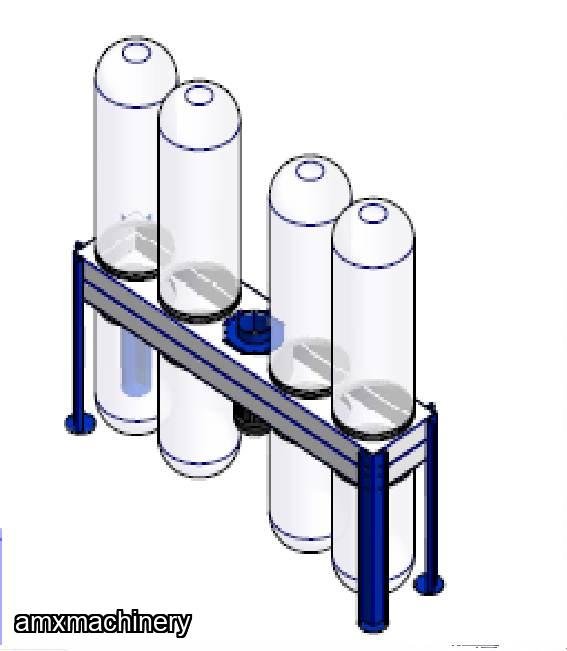

PARTE # 2TA-DC-9100 – COLECTOR DE ASERRIN – MOTOR 10 HP – 8900 CFM
PARTE # 2TA-DC-9200 – COLECTOR DE ASERRIN – MOTOR 20 HP – 12200 CFM
PARTE # 2TA-DC-9250 – COLECTOR DE ASERRIN – MOTOR 25 HP – 14600 CFM
Nuevo con garantia
- Heavy sheet metal frame and base.
- Extra large radial-fin type steel impeller for high efficiency air flow.
- Heavy duty, totally enclosed industrial motor for maximum air suction and extended service life.
- Low sound levels to keep the working area quiet.
SPECIFICATIONS | 2TA-DC-9100 | 2TA-DC-9200 | 2TA-DC-9250 |
Motor | 10 HP 3 PH | 20 HP 3 PH | 25 HP 3 PH |
Fan Diameter | 15" | 16" | 16" |
Static Pressure (INH2O) | 23 | 27 | 27 |
Air Capacity | 8900 | 12200 | 14600 |
Sound Rating (db) | 85 ~ 95 | 85 ~ 95 | 85 ~ 95 |
Connection Outlet Dia. | 10" | 15" | 16" |
Top Filter Bag Size (Dia x H) | 13.8" x 59" | 13.8" x 59" | 13.8" x 59" |
Top Filter Bag Quantity | 10 | 20 | 20 |
Bottom Collect Bag Size | 23.6" x 35.5" | 23.6" x 35.5" | 23.6" x 35.5" |
Bottom Collect Bag Quantity | 4 | 6 | 6 |
Machine Size | 138" x 39" x 120" | 181" x 47" x 120" | 181" x 47" x 120" |
N.W. | 1360 | 1770 | 1960 |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
TORNO COPIADOR IRREGULAR MULTIPLE CON LIJADOR
PARTE # 2TA-CL-1006S - TORNO COPIADOR IRREGULAR MULTIPLE CON LIJADORPARA FABRICAR 4 a 5 PIEZAS A LA VEZIDEAL PARA EL COPIADO MULTIPLE DE PIEZAS COMO PATAS PARA SILLAS PROVENZALES Y QUEEN ANNE, CABOS PARA PALA, ZAPAPICO, ETC.Features:Use the template to make easy duplicate copy performance.Specially designed for processing wood under the length of 39-1/2" and diameter of 8-1/4".Runs automatic continual cycles from feeding to finish.Variable cutting speed controls and uses hydraulic power to get ...
AMXmachinery
ESTUFA/SECANTE PARA MADERA AMERICAN WOOD DRYERS
PARTE # 10303 - ESTUFA/SECANTE PARA MADERA - AMERICAN WOOD DRYERSSON 2 CAMARAS JUNTAS1 CAMARA DE 43,200 PIES TABLA1 CAMARA DE 38,400 PIES TABLAAMBAS ESTAN DESARMADASSE COMPRARON FUNCIONANDO EN ESTADOS UNIDOS Y NUNCA SE INSTALARONNO INCLUYE LA CALDERATENEMOS 27 PLANOS EN PDF PARA FACILITAR EL ARMADO
AMXmachinery
CONVERTIDORES DE FASES - DE 220V 2 FASES A 220V 3 FASES
PARTE: 2PH-GPPL - CONVERTIDORES DE
FASES - DE 220V 2 FASES A 220V 3 FASES
NUEVOS CON GARANTIA
Rated
for any environment, indoor/outdoor.
Designed
to work for voltage-sensitive equipment.
INPUT:
208-250V - 50/60 hz Single Phase
OUTPUT
208-250V - 50/60 hz Three Phase
Includes
Start and Stop with a built-in contactor, and a Voltage Meter Display
TAMANOS:2
HP
3
HP
5
HP
7.5
HP
10
HP
15
HP
20
HP
30
HP
40
HP
50
HP
60
HP
75
HP
10...
AMXmachinery
SIERRA TRONZADORA – 7.5 HP - DISCO 14" - IZQUIERDA
PARTE: 12347 - SIERRA TRONZADORA – 7.5 HP - DISCO 14"
- IZQUIERDA
USADA
- BUENAS CONDICIONESMotor 7.5 HP, 220V, 3 phase4100 RPM arbor speedLeft Hand Model uses a 14” diameter saw blade with 1” boreCuts boards up to 1” x 10” or 2”x 9”, 3” x 8” at a rate of up to
95 strokes per minuteStandard full coverage safety guardTable size is 25” x 23-1/4” with a table height of 32-3/4”Requires 600 CFM air supply, and has a 4” diameter dust portMachine weighs 530 lbsOverall di...
