Description

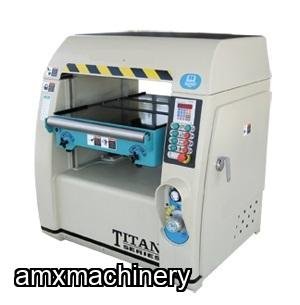

2EX-XP124T – CEPILLO 24” ANCHO – MOTOR 15 HP – TITAN – CABEZAL HELICOIDAL
2EX-XP124T – CEPILLO 26” ANCHO – MOTOR 20 HP – TITAN – CABEZAL HELICOIDAL
Nuevo con garantía
Cabezal Helicoidal VECTOR
Features:
VECTOR or straight knife cutter heads
11-3/4” thickness capacity
High Horsepowers: 20 HP & 15 HP
6000 RPM cutterhead
Powered top and bottom bed rollers
Motorized table elevation
Digital thickness controller
Solid cast-iron construction
Triple v-belts
Sectional chipbreakers
Externally adjustable front and rear bed rollers
Sound deadening enclosure
Available 208-230V or 460V
Powered top and bottom feed rollers
| 2EX-XP124T | 2EX-XP-126T |
Width | 24" | 26" |
Main HP | 15 HP | 20 HP |
Feed HP | 1 HP | 1 HP |
Elevation HP | 0.5 HP | 0.5 HP |
Max Thickness | 11.75" | 11.75" |
Min Thickness | 0.375" | 0.375" |
Max Cut | 0.375" | 0.375" |
Min Lenght | 10.5" | 10.5" |
Cutterhead RPM | 6000 | 6000 |
Feed Speed | 20-75 ft/min | 20-75 ft/min |
CFM Requirements | 1100 | 1100 |
Thickness Adjustment | PLC Controller | PLC Controller |
Bed Roller Adjustment | External | External |
Powered Bed Rollers | Top and Bottom | Top and Bottom |
Amps (230V / 460V) | 40A / 20A | 52A / 26A |
Weight | 2500 lbs | 2675 lbs |
