Description

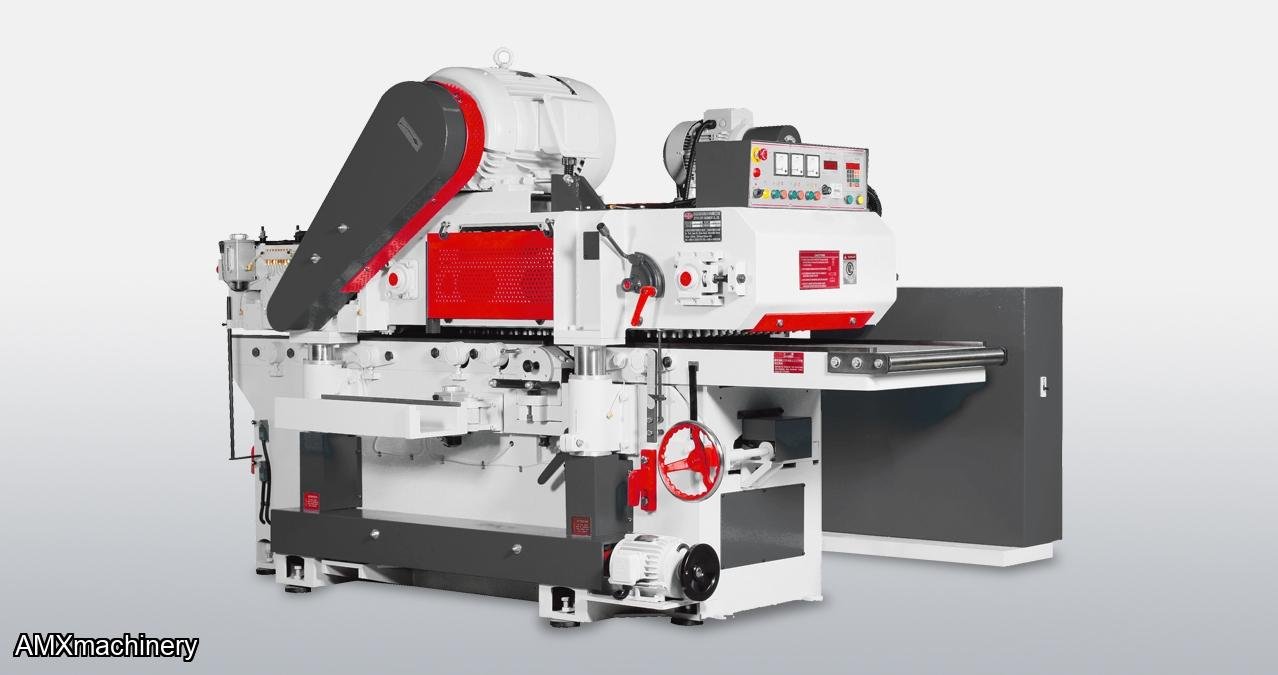

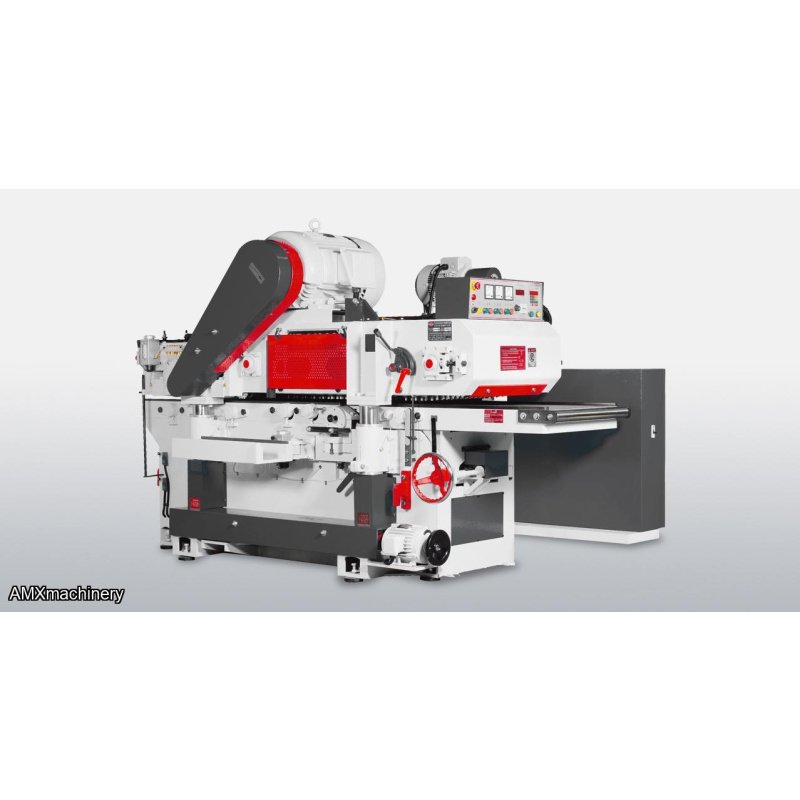

PARTE: 2CK-GT-HD
- Heavy-duty cardan shaft drive for the highest durability and increased feed speeds
- Available in 24”, 32”, 39”, and 52” wide models
- Solid cast-iron construction greatly reduces vibration resulting in improved output quality and machine durability
- Cast iron bed is precision machined and chrome plated to ensure longevity and precision
- Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
- Spiral insert knife cutterheads with 8 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality
- Additional idle and driven table rolls ensure consistent feeding of the workpiece
KEY ADVANTAGES
- Adjustable infeed bed by easily accessible handwheel to set desired stock removal on the bottom head
- Easy to access control panel with individual ammeters for load monitoring and hour meter to aid in maintenance planning
- Cutterheads are mounted in precision NSK class-7 ball bearings & precision housings
- Cutterhead starters are Y-Delta providing soft start to the heads for reduced power consumption on motor start-up
- Sectional serrated infeed roll before the top cutterhead
- Variable feed speed by frequency inverter (VFD) with digital display for the feed speed
- Digital thickness control for quickly and precisely setting the desired thickness with accuracy of +/- 0.002” (0.05mm)
- Upper assembly is adjusted for desired thickness by four large diameter cylindrical posts
- Automatic lubrication to the conveyor feed system
- High quality Schneider electrical components to CSA/UL standard
|
|
GT610SSHD |
GT820HD |
GT1000HD |
GT1320HD |
|
Maximum working width |
24″ |
32″ |
39″ |
52″ |
|
Maximum working thickness (standard) |
8″ |
8″ |
7″ |
7″ |
|
Minimum working thickness |
0.47″ |
0.47″ |
0.47″ |
0.47″ |
|
Feed speed (variable) |
32 ~ 130 FPM |
32 ~ 82 FPM |
32 ~ 82 FPM |
32 ~ 82 FPM |
|
Cutterhead diameter |
6″ |
6″ |
6.9″ |
6.9″ |
|
Cutterhead speed |
4200 RPM |
4200 RPM |
4200 RPM |
4200 RPM |
|
Bottom cutterhead motor |
30HP (40 opt.) |
40HP (50 opt.) |
40HP (50/60 opt.) |
50HP (60 opt.) |
|
Top cutterhead motor |
40HP (50 opt.) |
50HP (60 opt.) |
50HP (60/75 opt.) |
60HP (75 opt.) |
|
Feed drive motor |
7.5 HP |
10 HP |
15 HP |
15 HP |
|
Elevation motor |
2 HP |
2 HP |
2 HP |
2 HP |
|
Machine dimensions (LxWxH) |
118″ x 67″ x 67″ |
120″ x 77″ x 69″ |
120″ x 85″ x 67″ |
120″ x 97.2″ x 67″ |
|
Shipping dimensions (LxWxH) |
122″ x 73″ x 72″ |
124″ x 81″ x 77″ |
124″ x 91″ x 72″ |
124″ x 106″ x 72″ |
|
Machine weight |
13640 Lbs. |
18700 Lbs. |
20900 Lbs. |
23100 Lbs |
|
Shipping weight |
14080 Lbs. |
19140 Lbs. |
21340 Lbs. |
23980 Lbs. |
|
CFM dust requirement |
4200 CFM |
4750 CFM |
5200 CFM |
5800 CFM |
