Descripción

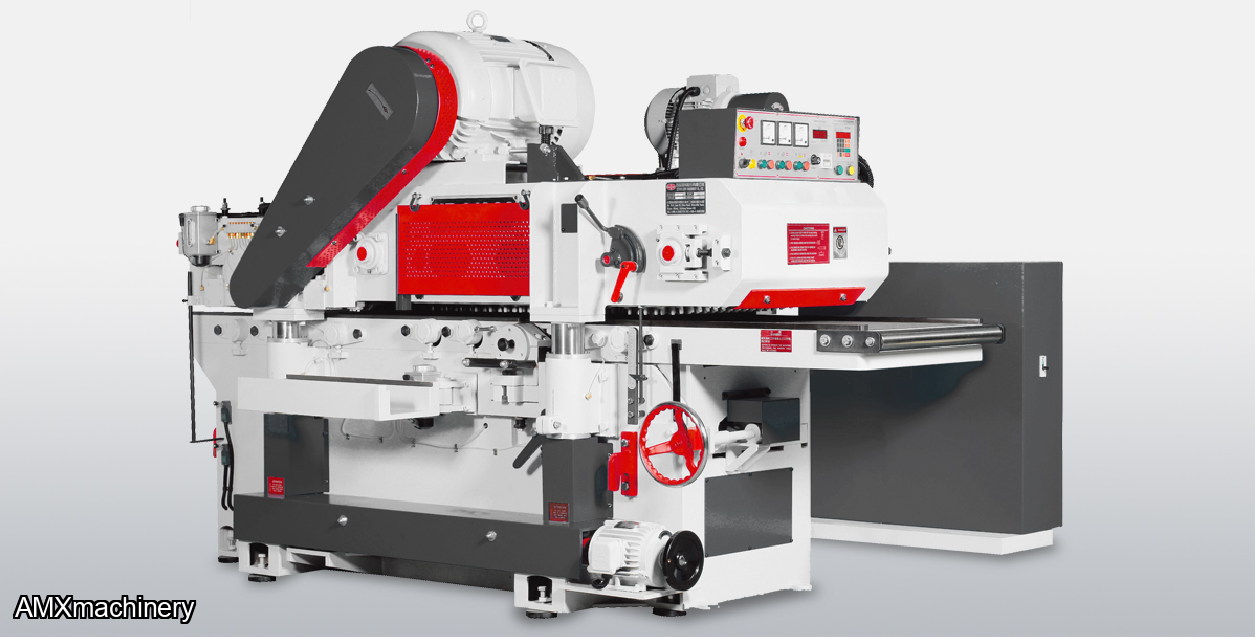

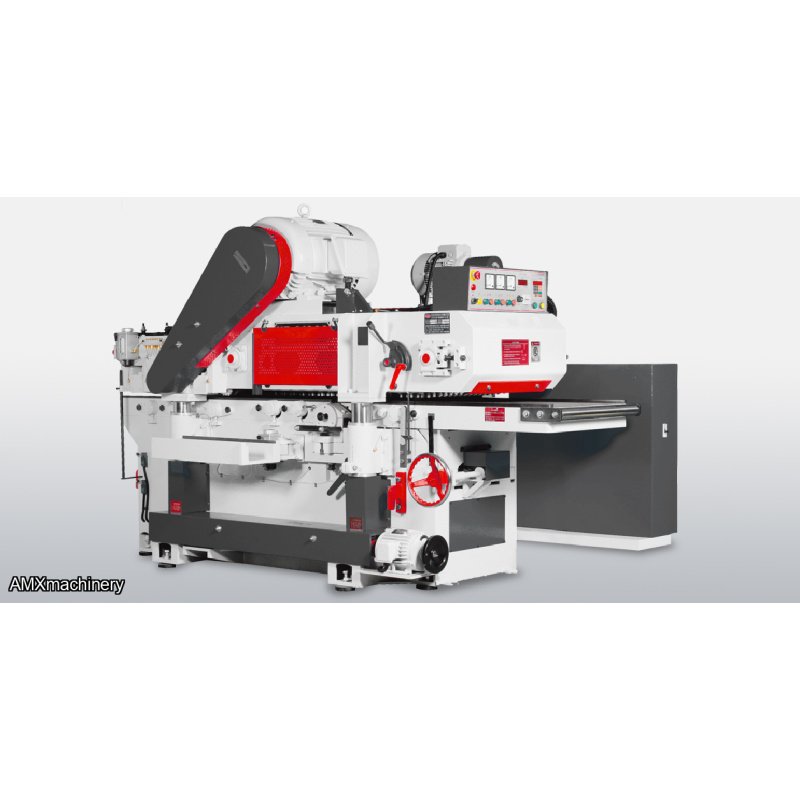

CEPILLO 2 CARAS EJE CARDAN 32" 2CK-GT820HD
Suitable for the most demanding planing applications. The HD series are capable of high feed speeds with maximum stock removal capabilities. They feature a robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.
- Heavy-duty cardan shaft drive for the highest durability and increased feed speeds
- Available in 24”, 32”, 39”, and 52” wide models
- Solid cast-iron construction greatly reduces vibration resulting in improved output quality and machine durability
- Cast iron bed is precision machined and chrome plated to ensure longevity and precision
- Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
- Spiral insert knife cutterheads with 8 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality
- Additional idle and driven table rolls ensure consistent feeding of the workpiece
- Adjustable infeed bed by easily accessible handwheel to set desired stock removal on the bottom head
- Easy to access control panel with individual ammeters for load monitoring and hour meter to aid in maintenance planning
- Cutterheads are mounted in precision NSK class-7 ball bearings & precision housings
- Cutterhead starters are Y-Delta providing soft start to the heads for reduced power consumption on motor start-up
- Sectional serrated infeed roll before the top cutterhead
- Variable feed speed by frequency inverter (VFD) with digital display for the feed speed
- Digital thickness control for quickly and precisely setting the desired thickness with accuracy of +/- 0.002” (0.05mm)
- Upper assembly is adjusted for desired thickness by four large diameter cylindrical posts
- Automatic lubrication to the conveyor feed system
- High quality Schneider electrical components to CSA/UL standard
|
|
GT610SSHD
|
GT820HD
|
GT1000HD
|
GT1320HD
|
|
Maximum working width
|
24″
|
32″
|
39″
|
52″
|
|
Maximum working thickness (standard)
|
8″
|
8″
|
7″
|
7″
|
|
Minimum working thickness
|
0.47″
|
0.47″
|
0.47″
|
0.47″
|
|
Feed speed (variable)
|
32 ~ 130 FPM
|
32 ~ 82 FPM
|
32 ~ 82 FPM
|
32 ~ 82 FPM
|
|
Cutterhead diameter
|
6″
|
6″
|
6.9″
|
6.9″
|
|
Cutterhead speed
|
4200 RPM
|
4200 RPM
|
4200 RPM
|
4200 RPM
|
|
Bottom cutterhead motor
|
30HP (40 opt.)
|
40HP (50 opt.)
|
40HP (50/60 opt.)
|
50HP (60 opt.)
|
|
Top cutterhead motor
|
40HP (50 opt.)
|
50HP (60 opt.)
|
50HP (60/75 opt.)
|
60HP (75 opt.)
|
|
Feed drive motor
|
7.5 HP
|
10 HP
|
15 HP
|
15 HP
|
|
Elevation motor
|
2 HP
|
2 HP
|
2 HP
|
2 HP
|
|
Machine dimensions (LxWxH)
|
118″ x 67″ x 67″
|
120″ x 77″ x 69″
|
120″ x 85″ x 67″
|
120″ x 97.2″ x 67″
|
|
Shipping dimensions (LxWxH) |
122″ x 73″ x 72″
|
124″ x 81″ x 77″
|
124″ x 91″ x 72″
|
124″ x 106″ x 72″
|
|
Machine weight
|
13640 Lbs.
|
18700 Lbs.
|
20900 Lbs.
|
23100 Lbs |
|
CFM dust requirement
|
4200 CFM
|
4750 CFM
|
5200 CFM
|
5800 CFM |
|
Shipping weight
|
14080 Lbs.
|
19140 Lbs.
|
21340 Lbs.
|
23980 Lbs.
|
