Descripción

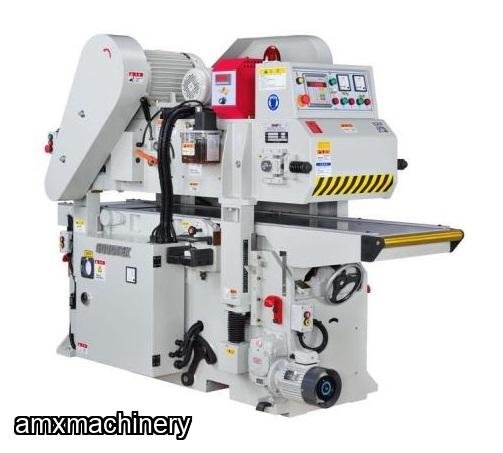

PARTE # 3GO-GT-400B - CEPILLO 2 CARAS – CAPACIDAD 16" ANCHO – MOTOR 10, 7.5, 2, ½ 10 HP
PARTE # 3GO-GT-610B - CEPILLO 2 CARAS – CAPACIDAD 24” ANCHO – MOTOR 15, 10, 2, ½ HP
PARTE # 3GO-GT-610A - CEPILLO 2 CARAS – CAPACIDAD 24" ANCHO – MOTOR 20, 15, 3, ½ HP
ESPECIFICACIONES
PARTE # 3GO-GT-400B - CEPILLO 2 CARAS – CAPACIDAD 16" ANCHO – MOTOR 10, 7.5, 2, ½ 10 HP
Motor: 10hp,7.5hp,2hp,1/2hp
Maximum width of cut: 405MM
Minimum thickness of cut: 8MM
Cutter-head speed: 4000RPM
Maximum thickness of cut: 200MM
Minimum length of cut: 250MM
Dust hood outlet diameter : 5" x 2
Machine Dimensions (L*W*H): 2300*980*1800MM-PALLET
Net Weight/Gross Weight : 1800/1900 kgs

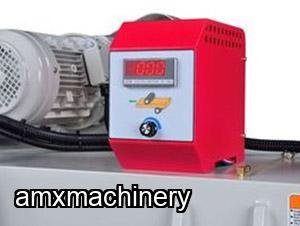

Variable feed speed: 7-24m/min-inverter

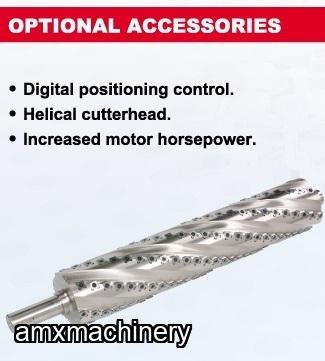

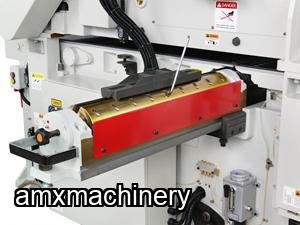

Standard cutterhead (HSS knife size:405*3*30mm) Q'TY on each cutterhead :4 PCS
PARTE # 3GO-GT-610B - CEPILLO 2 CARAS – CAPACIDAD 24” ANCHO – MOTOR 15, 10, 2, ½ HP
Motor: 15hp,10hp,2hp,1/2hp
Maximum width of cut: 610MM
Minimum thickness of cut: 8MM
Cutter-head speed: 4000RPM
Maximum thickness of cut: 200MM
Minimum length of cut: 250MM
Dust hood outlet diameter : 5" x 2
Machine Dimensions (L*W*H): 2300*1160*1800MM-PALLET
Net Weight/Gross Weight : 2200/2350 kgs
Variable feed speed: 7-24m/min-inverter
Standard cutterhead (HSS knife size:610*3*30mm) Q'TY on each cutterhead :4 PCS
PARTE # 3GO-GT-610A - CEPILLO 2 CARAS – CAPACIDAD 24" ANCHO – MOTOR 20, 15, 3, ½ HP
Motor: 20hp,15hp,3hp,1/2hp
Maximum width of cut: 610MM
Minimum thickness of cut: 10MM
Cutter-head speed: 4000RPM
Maximum thickness of cut: 200MM
Minimum length of cut: 310MM
Dust hood outlet diameter : 6" x 2
Machine Dimensions (L*W*H): 2700*1160*1800MM-PALLET
Net Weight/Gross Weight : 2880/3000 kgs
Variable feed speed: 7-24m/min-inverter
Standard cutterhead (HSS knife size:610*6*38mm) Q'TY on each cutterhead :4 PCS
