Descripción

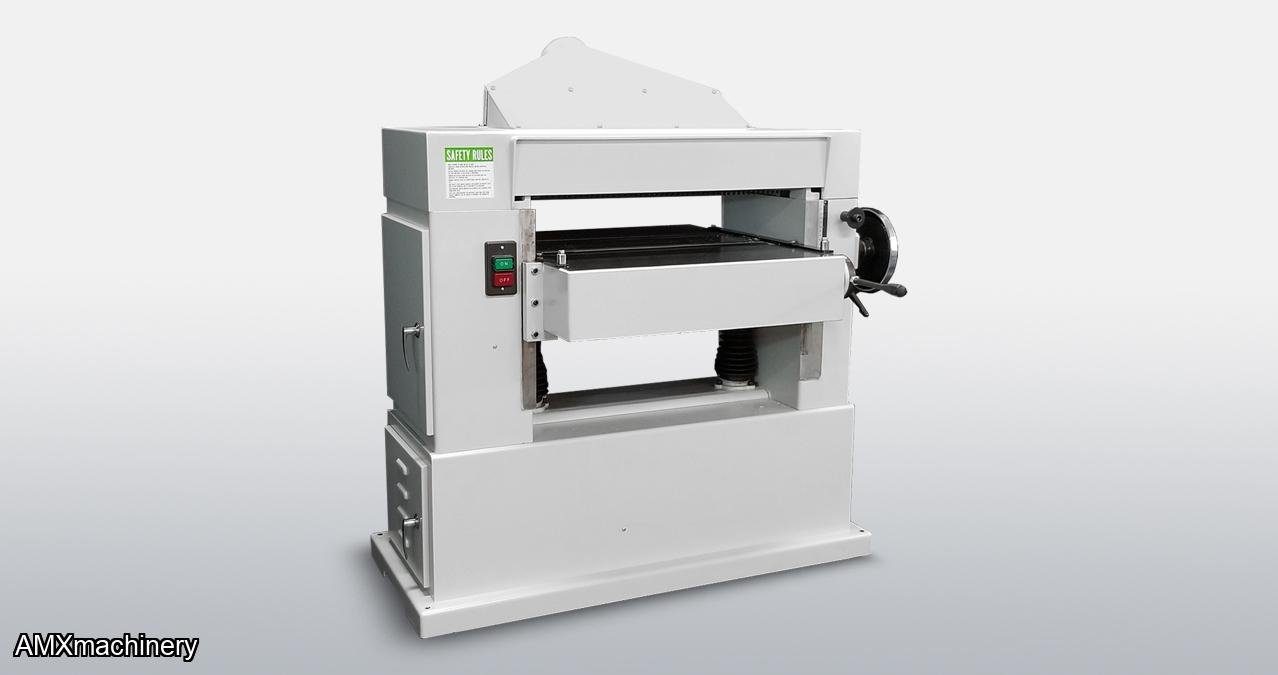

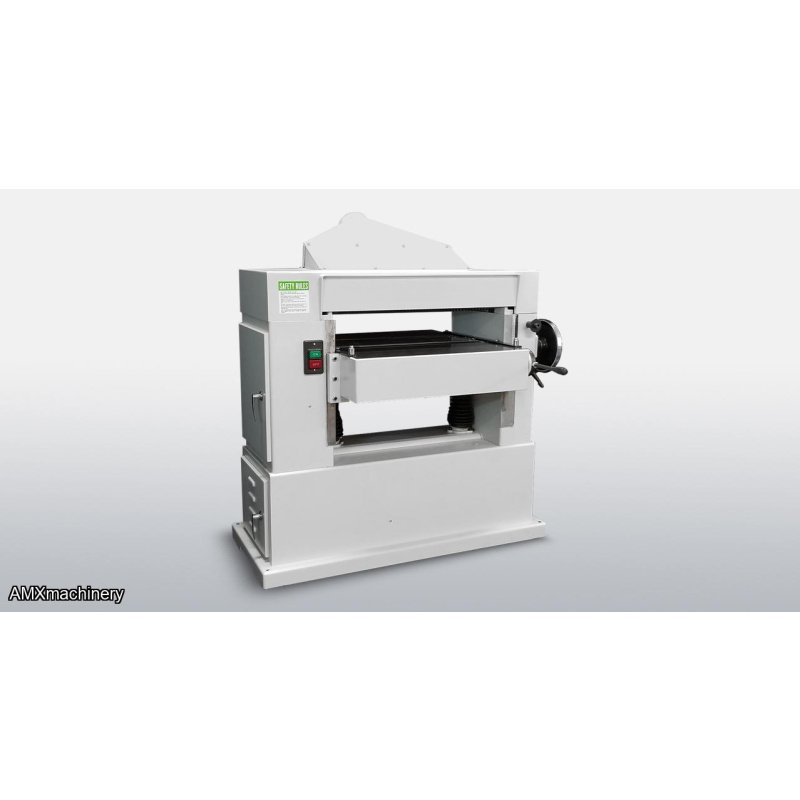

PARTE: 2CK-P24HV

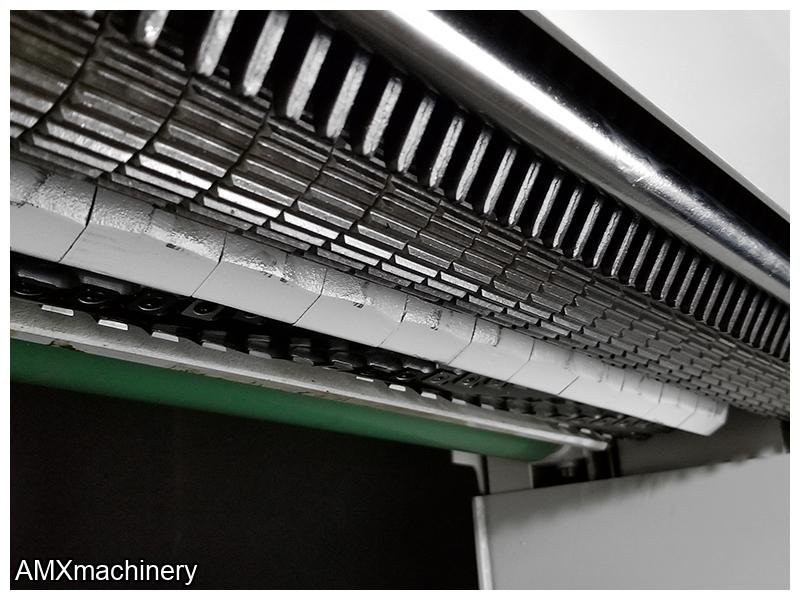

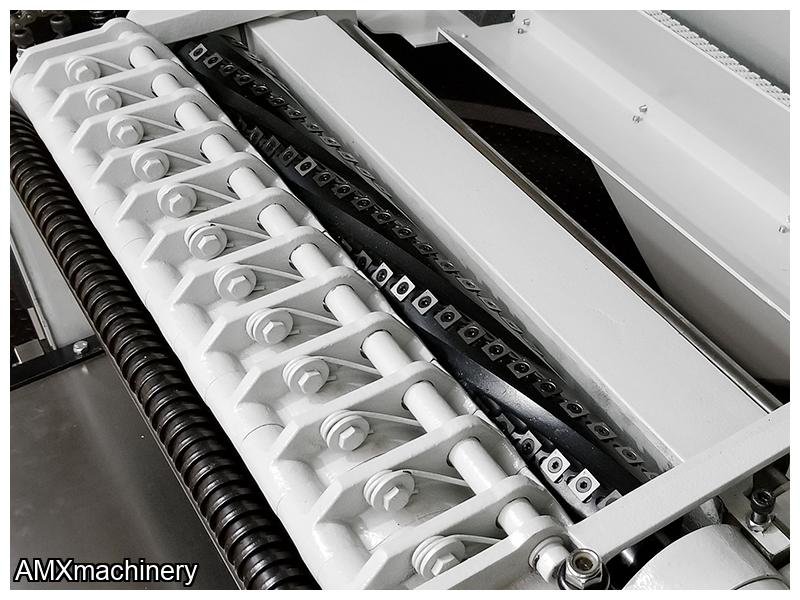

- Spiral Insert Knife Cutterhead with replaceable carbide insert knives for long life and smooth cutting action (132 inserts, 14mmx14mmx2mm)
- Sectional chip breakers
- Serrated sectional infeed roll conforms to material which is not yet flat
- Anti-kickback fingers for safe operation
KEY ADVANTAGES
- 2-feed speeds

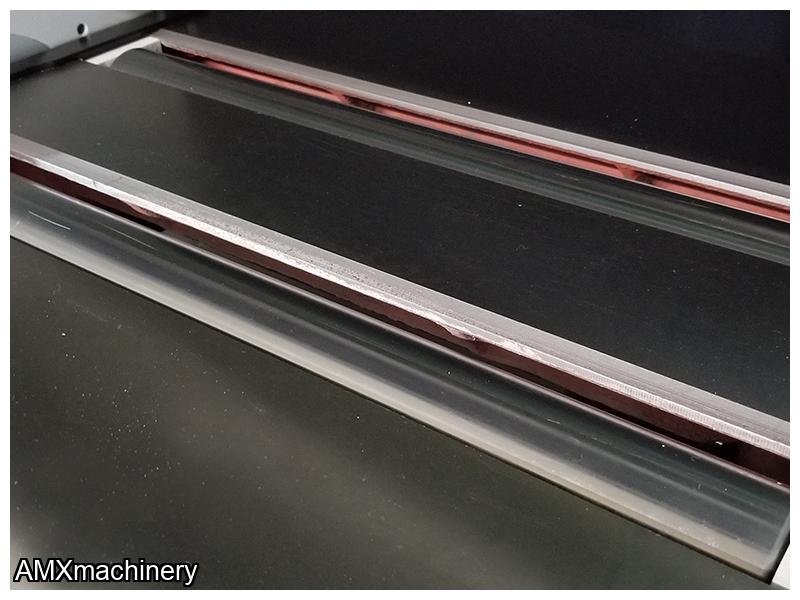

- Double bed rolls which are conveniently adjusted from the front of the machine to assist with planing difficult to feed material

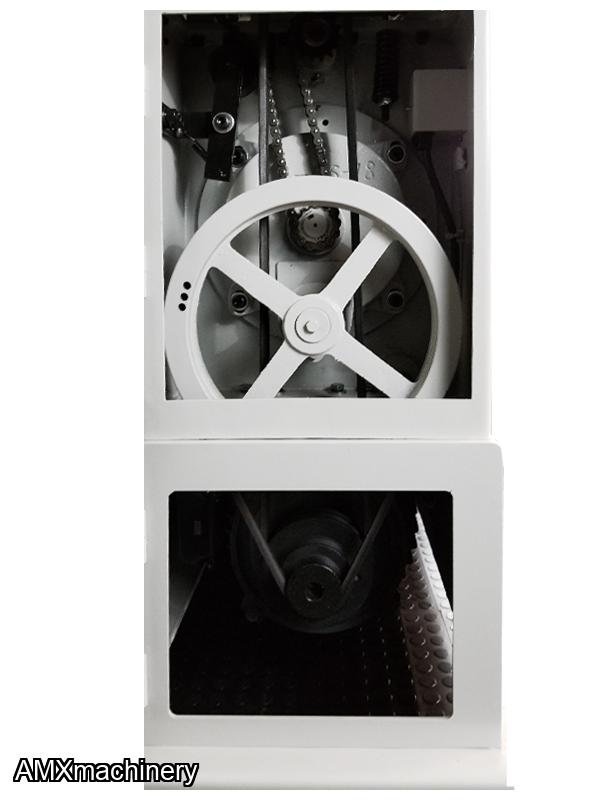

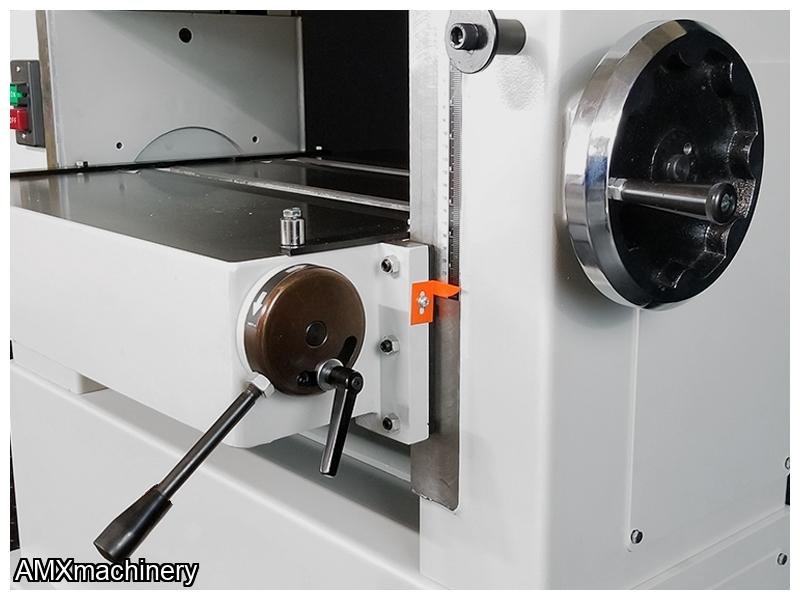

- Side handwheel with linear scale for table adjustment
- Polyurethane outfeed roll which will not mark your material after it has been planed
- Flip open top lid with limit switch for safe & convenient changing of the insert knives
|
Maximum planing width |
24″ |
|
Maximum planing thickness |
8″ |
|
Feed speeds (2) |
20 & 30 FPM |
|
Main motor |
7.5 HP |
|
Cutterhead diameter |
3-1/16″ |
|
Min. length |
8″ |
|
Table rise & fall |
Manual |
|
Dust port (1) |
6” |
|
Net weight |
950 lbs. |
|
Machine dimensions (LxWxH) |
48” x 36” x 50” |
