Identificador: 243
Abierta
Descripción

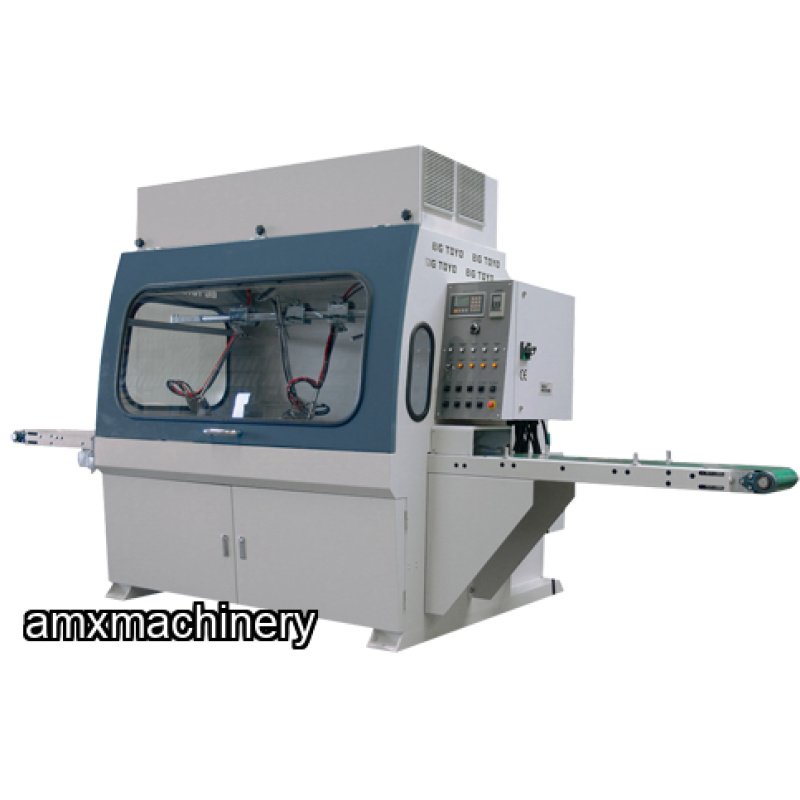

PART # 2TA-TS-12ATSP – CASETA DE PINTURA CONTINUA PARA MOLDURAS
Nueva con garantía
Features:
PLC control for easy operator and variability setup.
Fast spraying processing for profiles strips and two edges together or four edges at panels by one pass.
The spray guns are controlled by photocell sensor for auto spray time and saving the spray material.
Individual painting volume adjustment control for each spray gun.
Variable feed speed control for the best finish result.
Two trays to collect unused paints for re-used.
Powerful collection fan for air purifies by filter and totals enclose cabinet to achieve no pollution.
Heavy sheet metal total enclosure frames and see-through cabinet window.
Standard equipment with one pneumatic paint pump and four spray guns.
Extra spray guns are optional.
SPECIFICATIONS | TS-12ATSP | TS-24ATSP | TS-24ATAM | TS-36ATSP |
Max. Working Width | 12" | 24" | 24" | 36" |
Max. Working Thickness | 3-1/2" | 3-1/2" | 3-1/2" | 3-1/2" |
Max. Working Length | Infinite | Infinite | Infinite | Infinite |
Min. Working Length | 19" | 21-1/2" | 21-1/2" | 35" |
Feed Speed (Variable) | 32 ~ 96 FPM | 33 ~ 96 FPM | 34 ~ 96 FPM | 34 ~ 96 FPM |
Air Spray Gun | 4 PCS | 6 PCS | 4 PCS | 9 PCS |
Paint Pump | 1 Set | 1 Set | 1 Set | 3 Set |
Air Mix Spray Gun | - | - | 2 PCS | - |
Piston Pump | - | - | 1 Set | 3 Set |
Exhaust Fan Motor | 3 HP | 5 HP | 5 HP | 5 HP |
Machine Size (L x W x H) | 138" x 62" x 99" | 138" x 73" x 78" | 138" x 73" x 78" | 236" x 102" x 88" |
Net Weight | 3200 LBS | 3960 LBS | 3980 LBS | 5260 LBS |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12448 - MESA DE TIJERA - HIDRAULICA - 1.22 x 1.22 METROS - 5000 LBS
PARTE: 12448 - MESA DE TIJERA - HIDRAULICA -
1.22
x 1.22 METROS - 5000 LBS
USADA - BUENAS CONDICIONES
AMXmachinery
PART: 12534-E - DOUBLE TABLE SLOT MORTISER - BALESTRINI
PART:
12534-E - DOUBLE TABLE SLOT MORTISER - BALESTRINI
USED
- CHECKED AND CLEANED440V, 3 PHASE
AMXmachinery
PUNZONADORA - HIDRAULICA - 40 TONS
PARTE: 12325 - PUNZONADORA - HIDRAULICA - 40
TONS
USADA - BUENAS CONDICIONES
Brand: Greenerd
Size: Length: 70 in.
Width: 44 in. Height: 96 in.
Country of
Manufacture: N/A
Weight (lbs, oz): 5934,
Tested and runs PLC
Lost its program
Safety's were
bypassed to test machine
Open height is
18-5/8"
Closed height is
6"
230/460V 3 Phase
Table Size
36"x16"
AMXmachinery
ROUTER PIN INVERTIDO - CR ONSRUD 36210
PARTE: 12127 - ROUTER PIN INVERTIDO - CR ONSRUD 36210
USADO – EN BUENAS
CONDICIONES – LIMPIADO Y REVISADO
230V, 3 PH, 60 CY
10 HP motor, belt driven to spindle
25,000 RPM spindle speed
Pneumatic spindle and guide pin movement via foot
pedal
3" spindle travel
43" x 31" acrylic topped table
36" throat depth
3-Position adjustable depth stop, infinitely
adjustable
Maximum workpiece/template height is 4"
3/4" max. Chucking capacity
Magnetic starter with over...
