Descripción
CANTEADORA PARTE: 2CK-MX370P
Is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, corner rounding, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
- Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
- Quick change glue pot allows you to change glue colours in minutes.
- Premilling ensures a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint.
- The corner rounding function finishes the ends of cabinet doors and more with a radius edge, eliminating any manual rework of the panel.
- Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed.
- Conveyor chain feed system for reliable results.
- Teflon-coated hot-melt glue pot.
- Heated infeed fence for pre-heating the panel for optimum glue penetration.

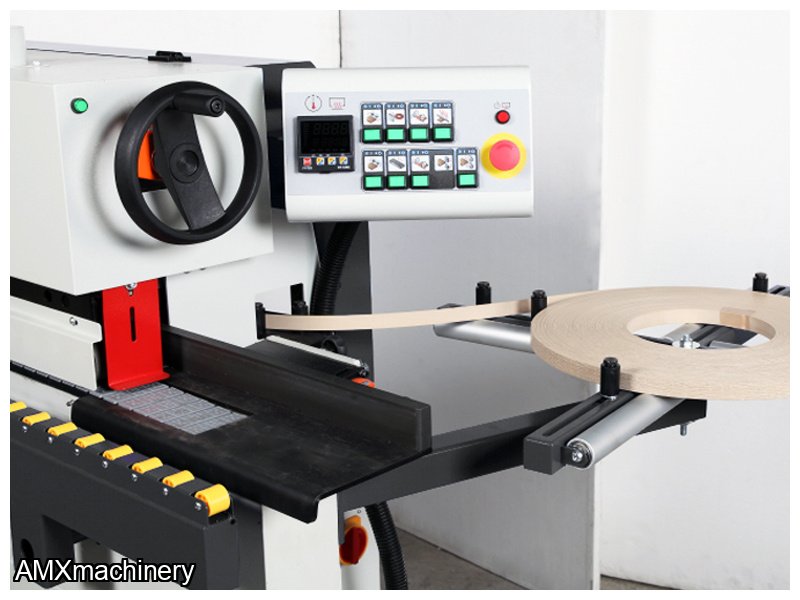

- PLC control system with LED display and keypad.
- Workpiece is fed by chain.
- Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS.
- Spring-loaded pressure unit with (2) pressure rollers.
- Heavy-duty pressure beam with extendable workpiece support.
PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.
END TRIM
High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades.
TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.
CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.
RADIUS SCRAPING
Radius scraper with 2mm radius.
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.
Feeding speed | 29 FPM | 9 meters/min. |
Panel thickness | 0.315”~1.77” | 8~45 mm |
Edge thickness | 0.0158”~0.118” | 0.4 ~ 3 mm |
Min. panel width | 3 ¾” | 95 mm |
Min. panel length | 6.7” | 170 mm |
Working table height | 38” | 960 mm |
Extension support width | 22” | 560 mm |
Dust collection outlet | Ø 5” x3 | Ø 127 mm x3 |
Electrical consumption | 10.9 HP | 6.7 KW |
Electrical | 230/3/60 | 26 Full load amps |
Machine weight | 2024 lbs | 910 kgs |
MOTOR SPECIFICATIONS
