Descripción

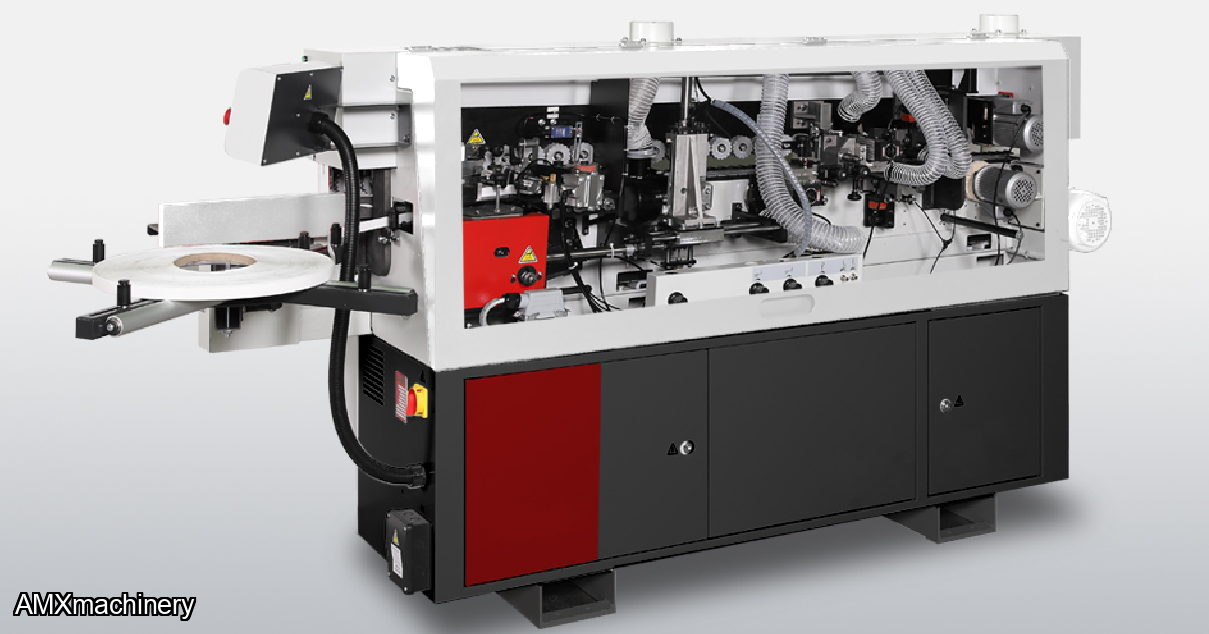

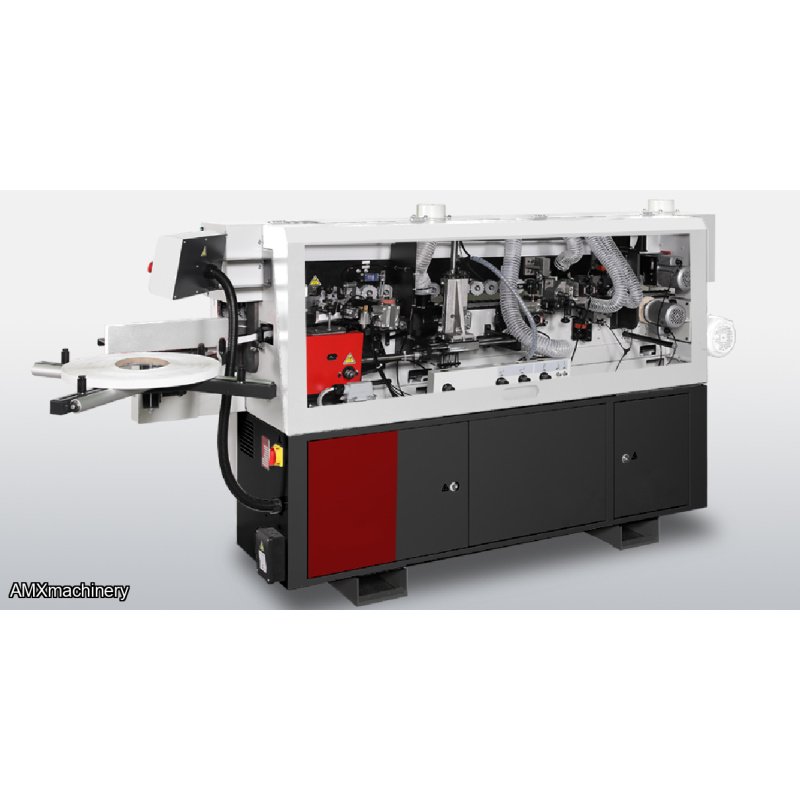

CANTEADORA AUTOMATICA PARTE: 2CK-MX350
- Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
- Quick change glue pot allows you to change glue colours in minutes.
- Couter rotating diamond premilling cutters produce optimum panel edge for superior edgebanding results
- High frequency end trim & flush trim motors produce fine edge finishing results
- Multi-function trimmers allows for flush or radius trimming on edge banding
- Radius scraping removes any knife marks on radius edges
- Buffing unit polishes the edge
- Powerful chain feed system ensure work piece stability during application and processing of edge banding resulting in a high quality finish

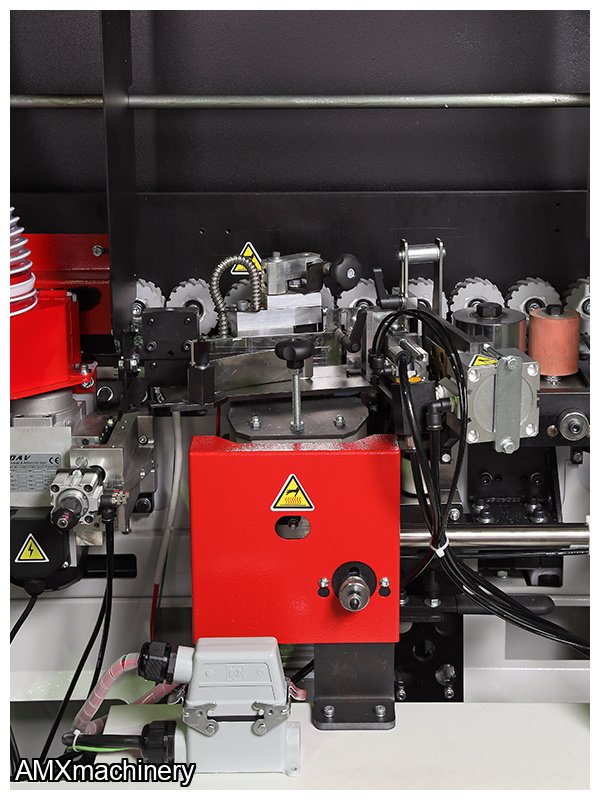

- Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.
- Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed
- Conveyor chain feed system for reliable results
- Heated infeed fence for pre-heating the panel for optimum glue penetration
- PLC control system with LED display and keypad
- Workpiece is fed by chain
- Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS
- Spring-loaded pressure unit with (2) pressure rollers
- Heavy-duty pressure beam with extendable workpiece support
- PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels
(2) counter-rotating diamond cutterheads for optimum results and longevity - END TRIM
High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades - TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming - RADIUS SCRAPING

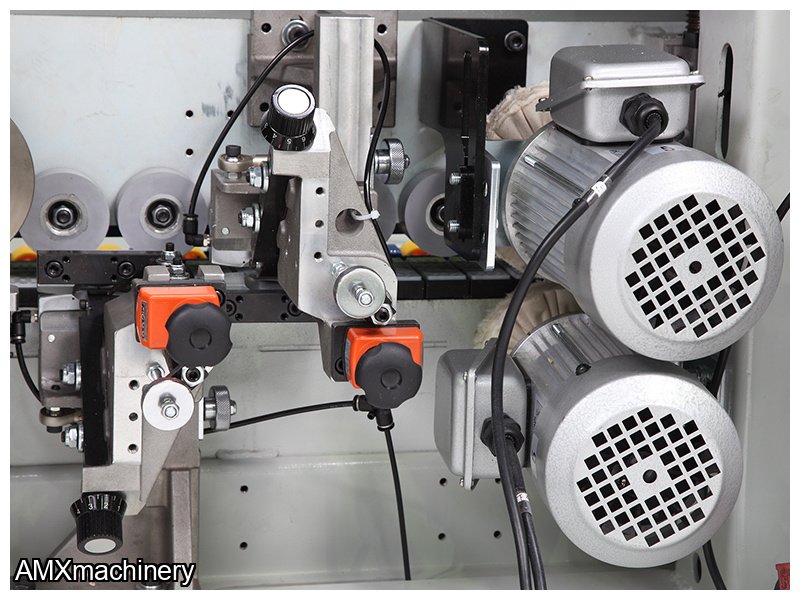

Radius scraper with 2mm radius - BUFFING
3000 RPM top & bottom buffing units to polish the machined edge
INCH | METRIC | |
Feeding speed | 29 FPM | 9 meters/min. |
Panel thickness | 0.315”~1.77” | 8~45 mm |
Max. pre-milling thickness | 1.77” | 45mm |
Edge thickness | 0.0158”~0.118” | 0.4 ~ 3 mm |
Min. panel width | 4” | 100 mm |
Min. panel length | 6.7” | 170 mm |
Working table height | 33.5” | 850 mm |
Dust collection outlet | Ø 5” x 3 | Ø 127 mm x 3 |
Total connected power | 10 HP | 7.5 kW |
Machine dimensions (LxWxH) | 147” x 52” x 54” | 3700 x 1310 x 1380mm |
Machine weight | 1452 lbs | 660 kgs |
Shipping dimensions (LxWxH) | 91” x 29” x 54” | 2290 x 720 x 1370mm |
Shipping weight | 1558 lbs | 708 kgs |
Electrical requirement | 230/3/60: 40 amps | |
