Descripción

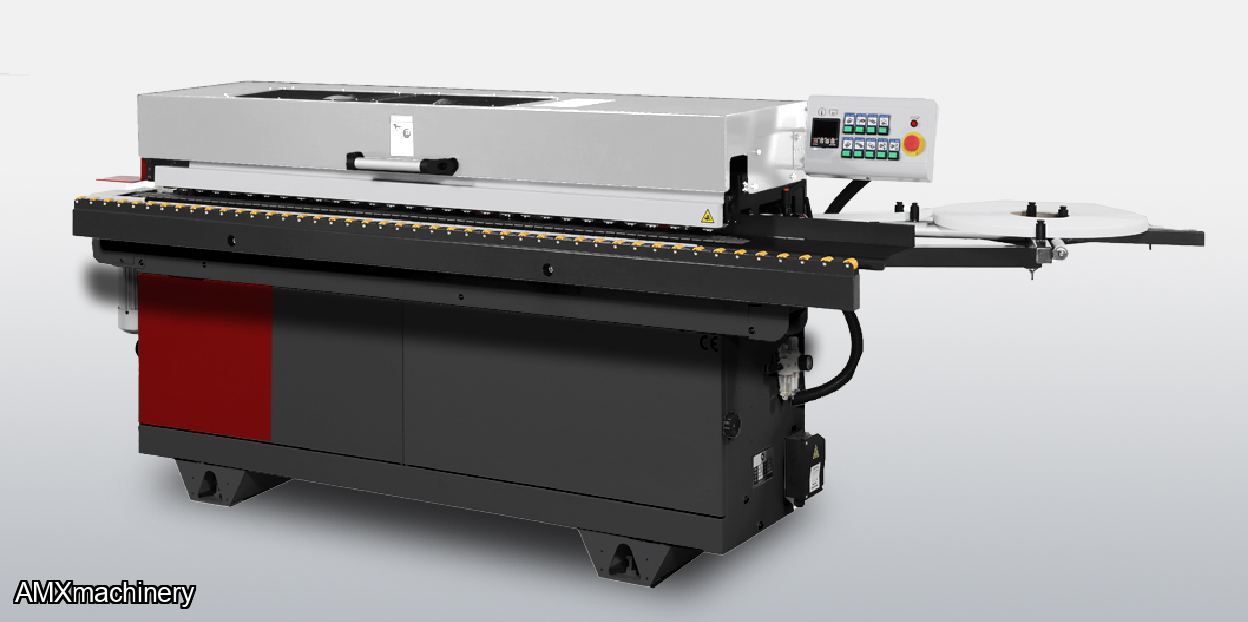

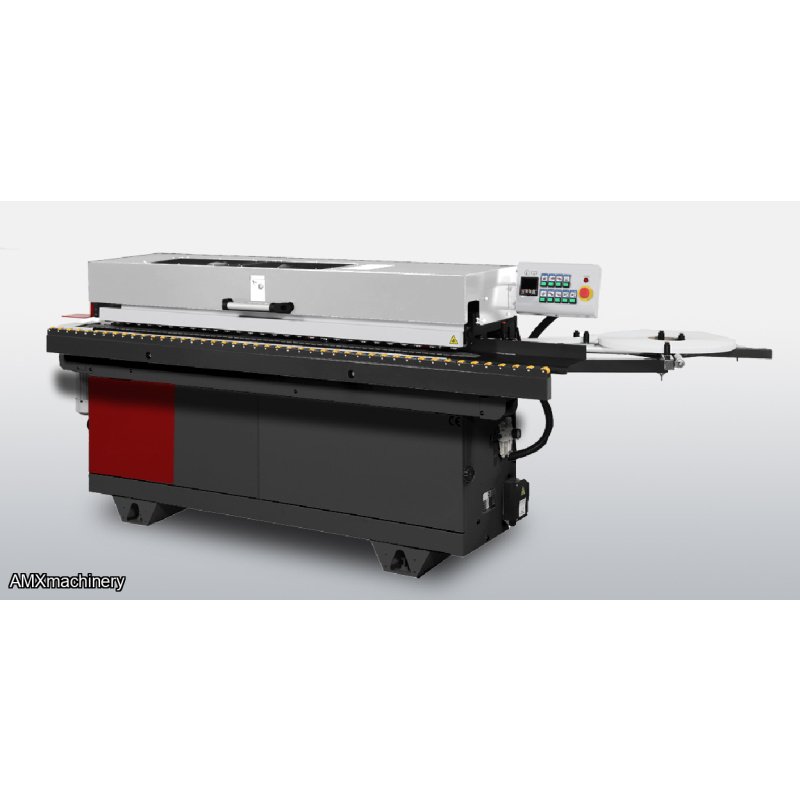

CANTEADORA AUTOMATICA PARTE: 2CK-MX350M
- Compact design makes it the ideal edgebanding solution for small workshops
- Pre-milling the panel ensures optimum edge quality prior to edgebanding
- Precise adjustments for optimum edge quality
- Chain feed system ensures consistent feeding of material for consistent results
- Available in 230V 1 or 3 phase

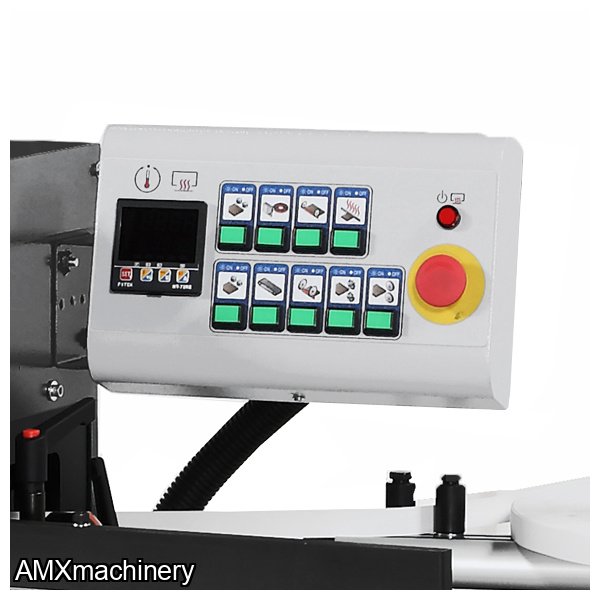

- PLC control system with LED display and keypad
- Workpiece is fed by chain
- Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
- Automatic edge feeding with a thickness capacity of 0.4-3 mm;
- Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
- 1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot

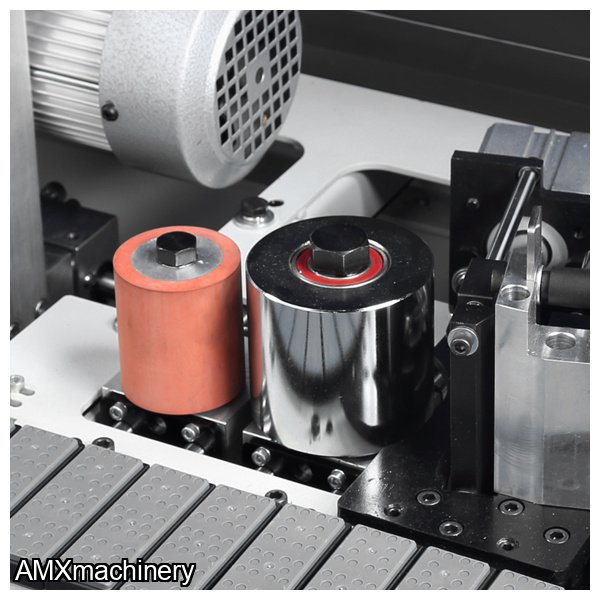

- Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
- Heavy duty pressure beam with extendable work-piece support
- Heated infeed fence for pre-heating the panel for optimum glue penetration
- Mechanical digital readouts for convenient and quick adjustment to the working units & thickness
- PRE-MILLING
Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality. - END TRIM
8800 RPM dual saw blade (80mm / 3.15″) end trimming unit - TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming - RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required - BUFFING
2800 RPM top & bottom buffing units to polish the machined edge
Feeding speed | 23 FPM | 7 m/min. |
Panel thickness | 0.472~1.77″ | 12~45 mm |
Edge thickness | 0.0158”~0.118” | 0.4 ~ 3 mm |
Minimum panel width | 3.54″ | 90mm |
Minimum panel length | 8 3/4″ | 220mm |
Working table height | 33.7″ | 856mm |
Extraction connection | 3 x 4” | 3 x 100mm |
Air consumption | 8.83 CFM | 250 liters/min |
Premilling spindle speed | 9000 RPM | |
Top & bottom trimmer RPM | 10500 RPM | |
Max. machine dimensions (LxWXH) | 126” x 47 ¼” x 47 ¼” | 3200 x 1200 x 1200mm |
Machine weight | 1162 lbs | 528 kgs |
Shipping dimensions (LxWxH) | ||
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1

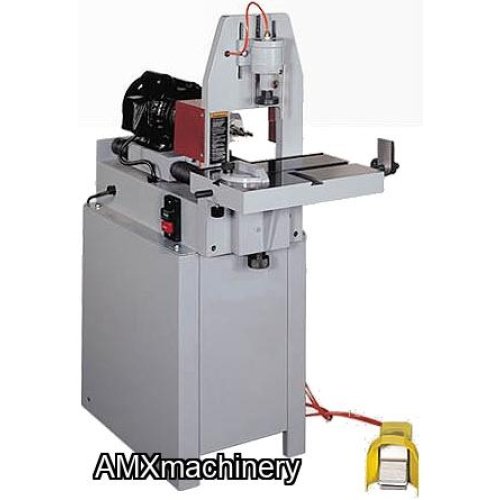

TALADRO MULTIPLE - HORIZONTAL
PARTE: 2CK-BM-301FEATURES:Motor and drilling head mounted on carriage, sliding on parallel bars with pneumatic movement.Come with adjustable two spindle drill head.Pneumatic work clamp to firmly hold workpieces.Machine operation activated by shrouded foot pedal.Cast iron work table with miter gauge for angled holes.Screw rise and fall adjustment of work table for varying timber thicknesses.Enclosed sheet steel floor stand supporting the machine.
Table size
400 x 2...
-500x500.png)
AMXmachinery1

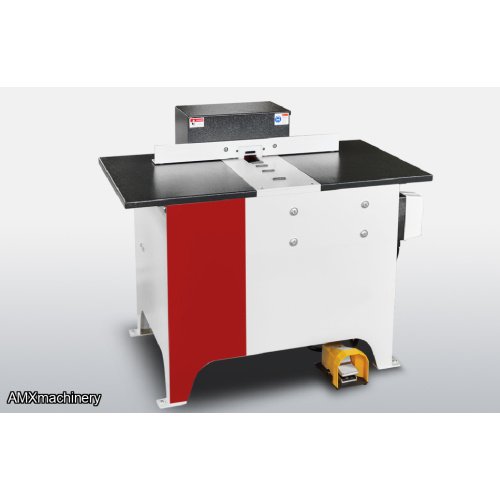

ARMADORA DE CAJONES
ARMADORA DE CAJONES PARTE: 2CK-JEN60Is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching. With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.High production capacity of up to 220 drawers machin...
AMXmachinery1
SIERRA ESCUADRADORA - 5 PIES
PARTE: 2CK-P30Is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The machine has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displa...
AMXmachinery1

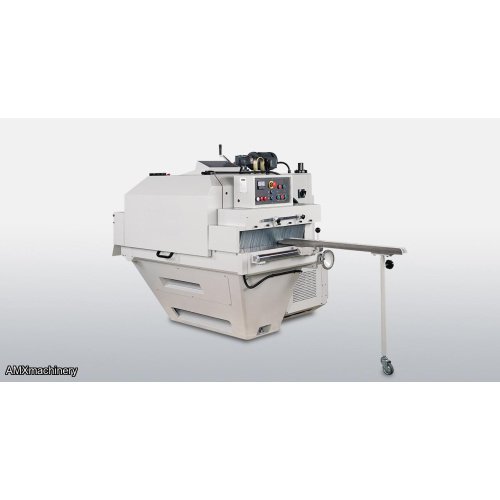

SIERRA MULTIPLE - 12 PULGADAS
