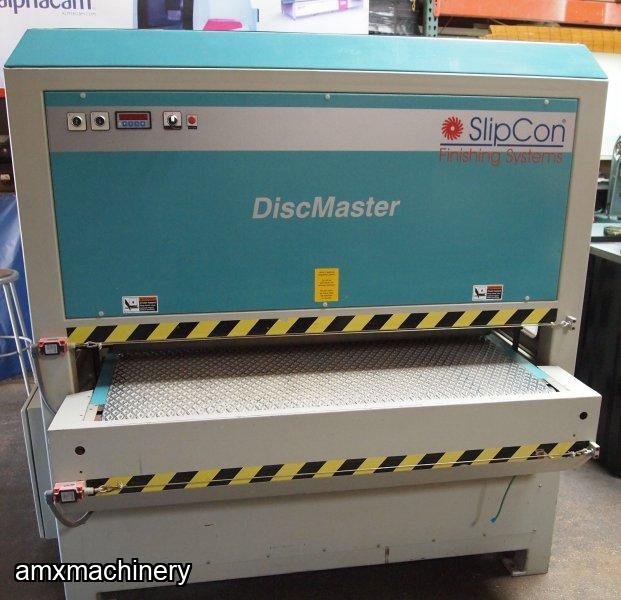

CALIBRADORA DISCOS Y CEPILLOS 52" ANCHO

PARTE # 11780 - LIJADORA DE DISCOS Y CEPILLOS - SLIPCON

EN MUY BUENAS CONDICIONES

MODELO: DBB-1350

Specifications

·         Working width: 1350mm

·         Maximum thickness of work-piece: 100mm

·         Minimum thickness of work-piece: 1mm

·         Motor disc-station: 1.5 kW with 50-300rpm

·         Oscillation: 0.37 kW, 10-40rpm, 100mm

·         Motor (each sanding roller): 2.2 kW, 14-300rpm (400mm)

·         Diameter sanding roller: 300/400mm

·         Speed of feed belt: 3-15 m/min

·         230v, 60Hz 3ph

Standard Features

·         Automatic, pneumatically-controlled centering of feed belt

·         Motorized height adjustment of sanding unit (constant height of through-feed)

·         Easy pull-out of disc-station on left and right for speedy changing of sanding strips

·         Separate height adjustment of disc-station from sanding rollers

·         Motorized height adjustment of disc-station

·         Electronic digital display of work-piece height

·         Blowing device for cleaning work-piece

·         Antistatic device

Extras

·         Vacuum bed/device for holding down smaller work-pieces
