Descripción

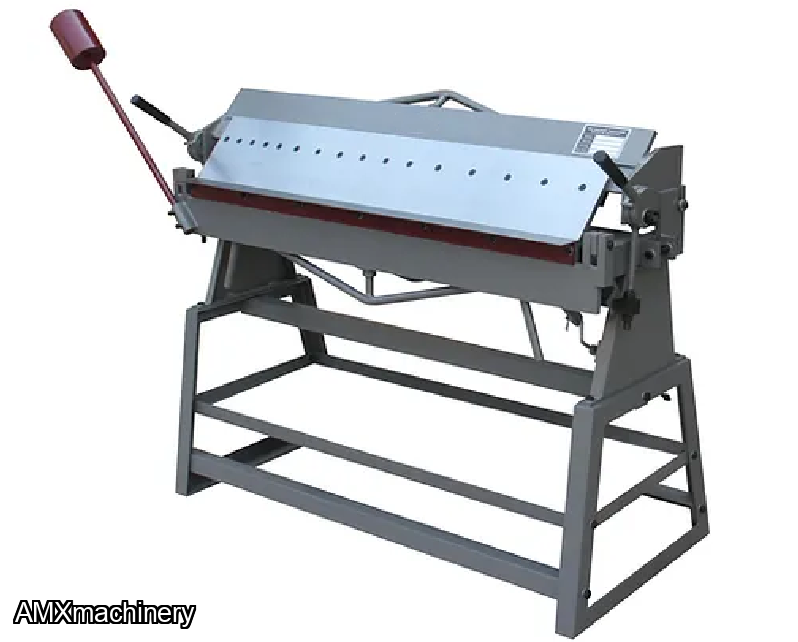

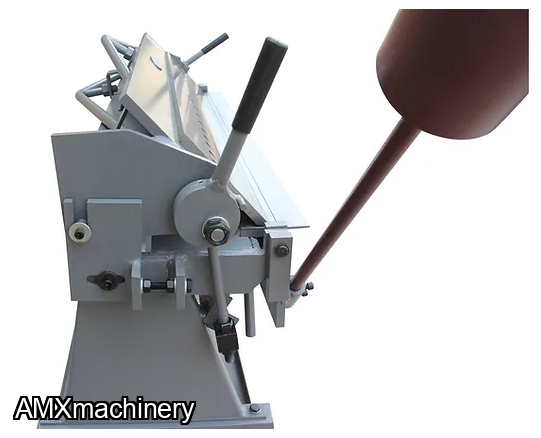

CAJA MANUAL Y FRENO PARTE: 2GM-BB-4816H
48" Manual Box and Pan Brake, crafted to excel in the realm of fabrication. Engineered for precision, it effortlessly shapes 16-gauge mild steel into sleek angles of up to 135°. With its arsenal of 16 removable fingers, this brake is finely tuned for box forming and a spectrum of specialized bending operations. Embrace its versatility as you navigate the intricacies of your fabrication projects, whether employing the fingers individually or collectively for unparalleled flexibility and finesse.
- ISO 9002 certified
- Large 1-9/16” beam opening, adjustable
- 3/8” beam adjustment ( front and back )
- Very thick and long fingers to make max. 4” depth of box & pan.
- Total pieces fingers assortment:
- 2”/5pcs, 3”/6pcs, 4”/5pcs
- Stop rods for repeat bends
- Comes with one counter weight
- Comes with a tall floor stand, assembly required
- Comes a tray for holding removable fingers and tools
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- One year warranty for parts
Bending capacity in mild steel Bending capacity in stainless steel Max. hemming thickness in mild steel | 16gauge 20 gauge 28 gauge |
Max. box depth | 4” |
Bending length capacity | 48”=4’ |
Bending angle , degree | 0-135 |
Beam adjustment, front and back | 3/8” |
Minimum reverse bend | 1/2” |
Manual clamping | standard |
Beam opening | 1-9/16” |
Machine Net weight, LBS Shipping Weight, LBS | 567 LBS 617 LBS |
Machine Dimensions, inch Shipping Dimensions, inch | 71x26x56” 73x24x28” |
