BRIQUETEADORA - ENTRADA 55” X 55” X 37” - REDONDO 50 MM

PARTE: 2WE-TH514 - BRIQUETEADORA - ENTRADA 55” X 55” X 37” - REDONDO 50 MM

NUEVA CON GARANTIA

Capacidad: 80-120 lbs/hr

- Hopper Dimensions: 55.1 x 55.1" x 37" (1,400 x 1,400 x 950 mm)

- Hopper Configuration: 4 Sides straight

- Hopper Volume: 2.4 yds³ (1.85 m³)

- Hydraulic Motor: 12 hp (9 kW)

- Hydraulic Oil Volume: 42.3 gal (160 liters)

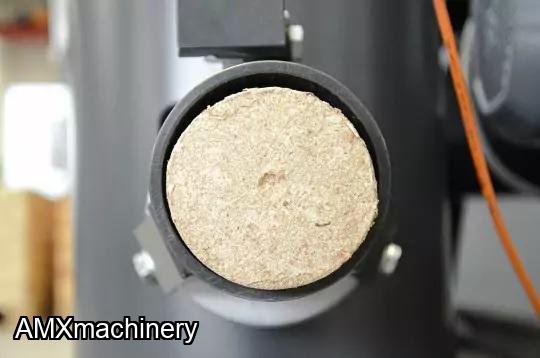

- Briquette Diameter: 2" (50 mm)

- Weight: App 2,645 lbs (1,200 kg)

* Image may not depict actual equipment offered. *

Power: 460 V / 60 Hz / 3 Phase

** Output: 80-120 lbs/hr**

*** Outputs must be confirmed with a test trial with prospect's material stream.***

INCLUDED with Briquette Press:

- Hydraulic System

- Hopper Mounted on Frame

- Chrome Plated Clamp

- Automatic Briquette Length Adjustment

- Oil Level Switch

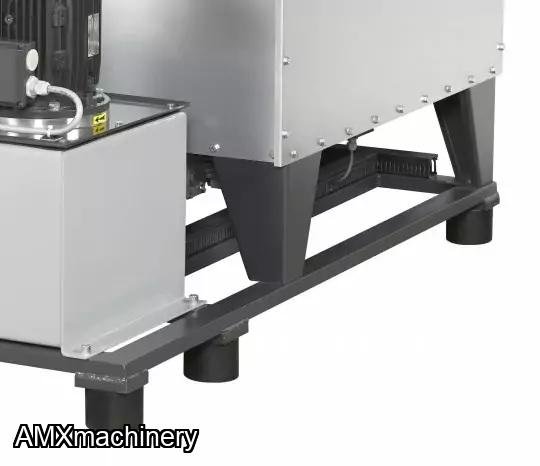

- Anti Vibration Feet

- Control Panel Mounted on Hopper

- Allen Bradley PLC w/ Touch Screen HMI

- Overheating Protection for Hydraulic Oil

- Auto On/Off

- Cone On Agitator and Blocked Corners in Hopper

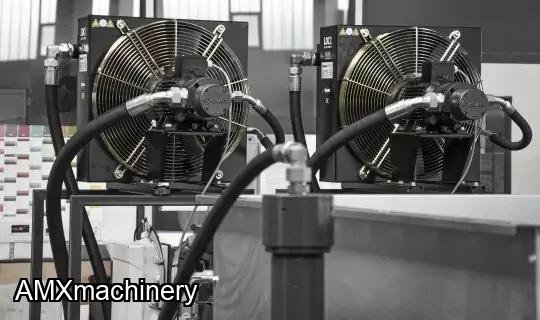

- Hydraulic Oil Cooling

- Dust Connection at Pressing Unit

ADDITIONAL Options:

- Auger Cover Plate

- Bridge Breakers

- Protective Cover for Touch Screen Panel

- Discharge Pipe for Conveying 50mm Briquettes (3 Sections - 1x 45°, 1x 90°, 1x Straight)
