Description
PARTE: 2TA-WG-2535V - ASTILLADORA - VERTICAL - 25 X 35 PULGADAS
Features:
- A specially designed with the push ram, powerful crusher for different materials such as wood, MDF, particle board,plastic, rubber, corn cob, etc.
- Excellent wearing ability and impact-resistant for time & labor saving.
- Large busting capacity and easy feeding system.
- The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usage
- Cutter head angle cutting design allows aggressive cutting rates & high speed shredding of waste with maximum durability.
- Movable screen for changing the size of chips and easy to clean-up.
- Enery efficient & quiet running industrial motor.
|
SPECIFICATIONS |
WG-1504V |
WG-2535V |
WG-4751V |
|
Entrance Capacity (L x W) |
15-3/8" x 4" |
25" X 35" |
47" x 51" |
|
Rotary Cutter (Sets) |
18 |
30 |
96 |
|
Stationary Cutter (Sets) |
4 |
4 |
6 |
|
Cutter Speed (RPM) |
680 |
85 |
85 |
|
Standard Finish Size or Option |
1/2" |
1/2" |
1/2" |
|
Cutter Head Motor |
20 HP |
30 HP |
60 HP |
|
Feed Motor |
-- |
-- |
1 HP x 2 |
|
Dust Hood |
8” x 1 |
8” x 1 |
8” x 1 |
|
Machine Size (L x W x H) |
56" x 50” x 32" |
87" x 52” x 75" |
106" x 75" x 83" |
Payments & Returns
- Payment Methods
- N/A
Post Message
Sign in to ask the seller a question.
AMXmachinery1
CEPILLO 2 CARAS - SUPER HEAVY DUTY CON TRANSMISION
PARTE: 2CK-GT-HDAre suitable for the most demanding planing applications. The HD series are capable of high feed speeds with maximum stock removal capabilities. They feature a robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The spring loaded feed system passes the material over the bott...
AMXmachinery1
SIERRA ESCUADRADORA - 8 PIES
PARTE: 2CK-D405M-8Is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops who need a precision saw but have limited floorspace. The machine combines a heavy-duty construction with cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily...
-500x500.png)
AMXmachinery1
CORTADORA MECANICA 8' x 10 Ga
CORTADORA MECANICA 8' x 10 Ga PARTE: 2GM-EPS-0810MISO 9001 certifiedAmerican design and Taiwan quality machineHD all steel construction for maximum rigidityPrecision driven gearboxFull length 30 strokes per minute60” long squaring arm with inch / mm scalespring hold-downs high grade carbon/chrome alloy steel blades and hardened to 62 hrc,2-edge indexable upper blade and 4-edge indexable bottom bladeFull length with full view finger guardFront supports ...
AMXmachinery1

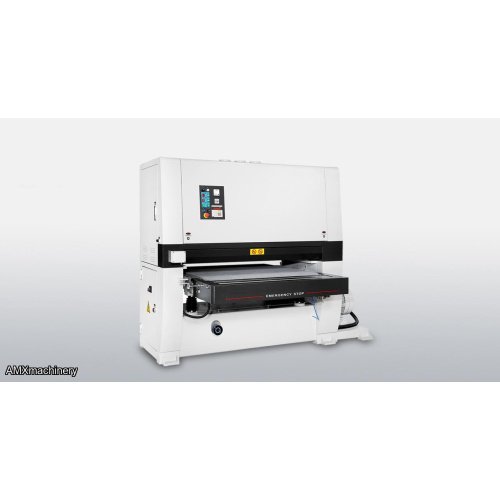

LIJADORA DE BANDA ANCHA CON CEPILLO
