Identificador: 1935
Abierta
Descripción

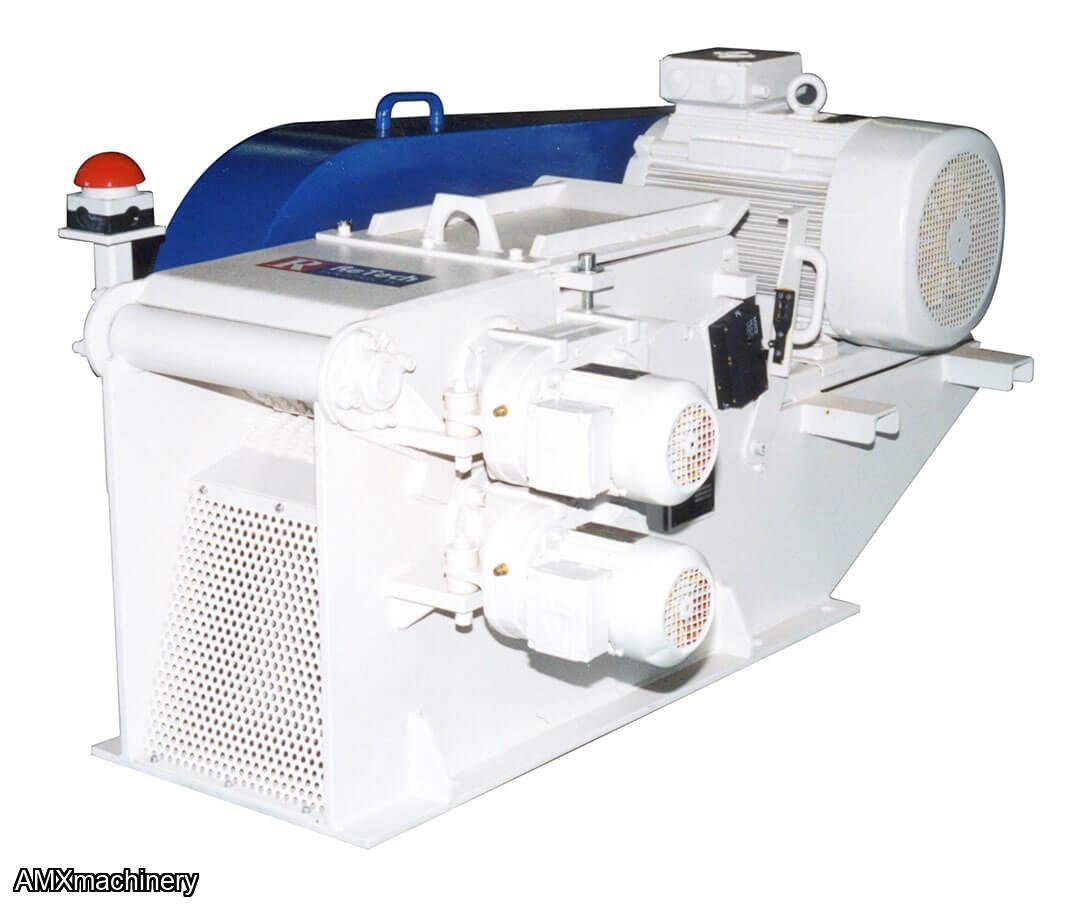

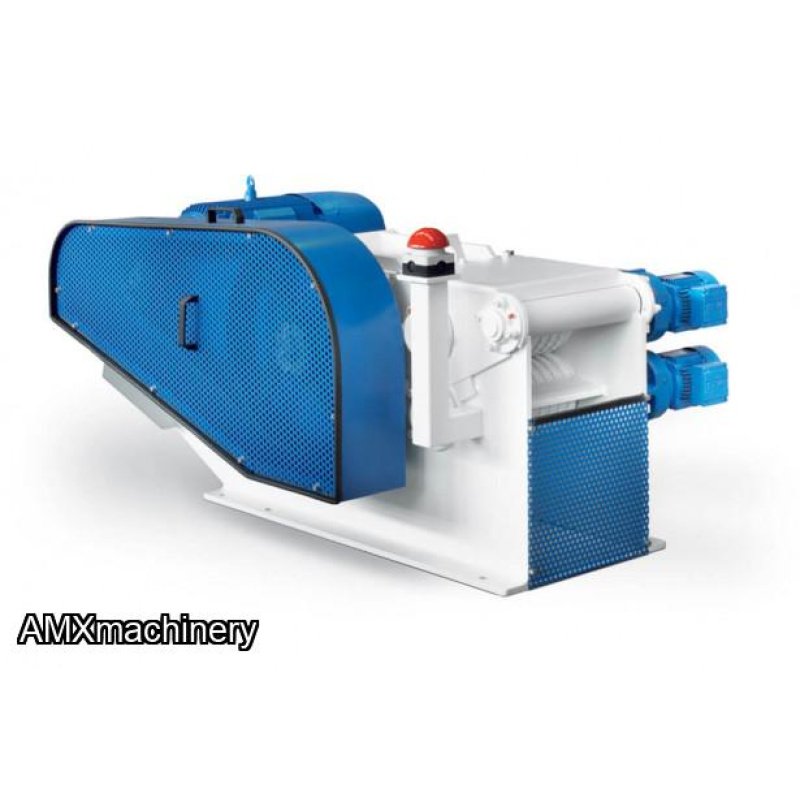

PARTE: 2VE-VTH-35/8/2VU - ASTILLADORA PARA MADERA - HORIZONTAL - 40 HP
TRANSPORTADOR VTBRATORIO 16” LARGO
NUEVA CON GARANTIA
Application Description:
Type of material to be ground: Wood – Pine, kiln dried
Form of material to be ground: Rips from gang-rip, waste wood from cut-offs
Typical size of material to be ground: < 5” x 18” x 16’
Required volume of material to be ground: 1,000 lbs/hr
Desired screen or particle size: 3/4”
Use of ground product: Not Specified
SPECIFICATIONS
Machine Infeed Opening: 3.5” H x 14” W

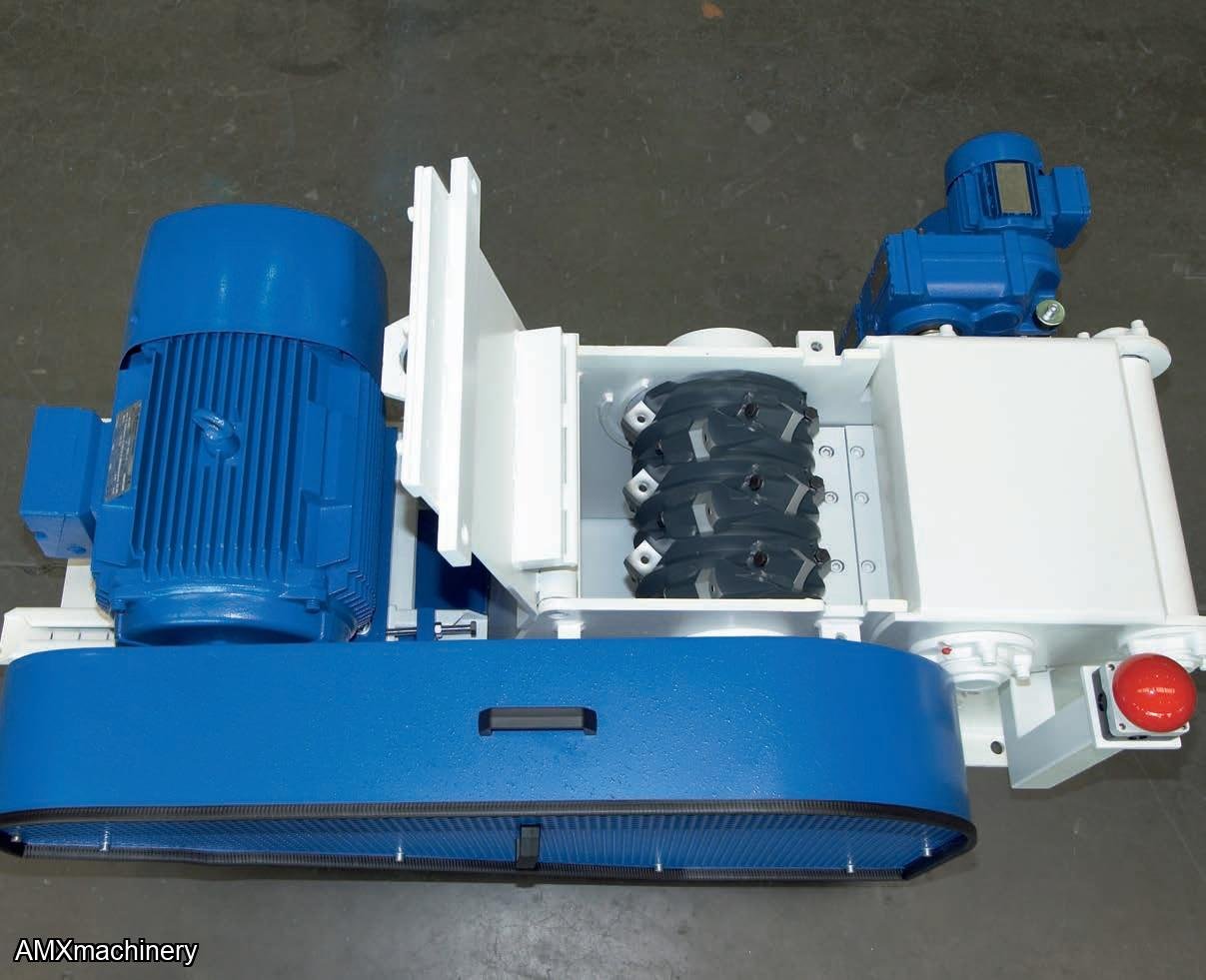

Rotor Length: 14”
Rotor Diameter: 12”
Number Of Cutters: 18 (40 mm x 40 mm)
Rotor Speed: 390 rpm

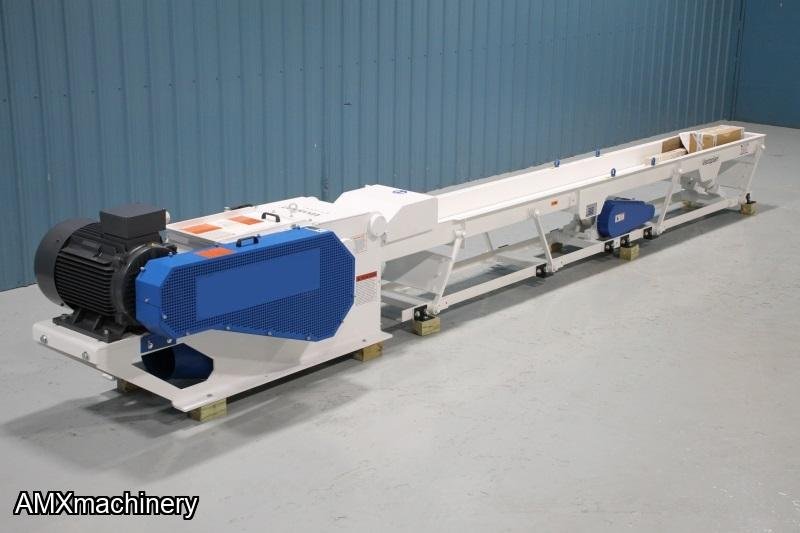

Infeed Conveyor: 16’ Vibratory Conveyor
Drive Motor HP: 40
Voltage: 460V/3ph/60Hz
NOTE: A throughput rate in excess of 1,000 lbs/hr through a 3/4” screen is achievable dependent on the type of material, form of material, screen size and method of feeding.
Throughput estimates are based on maximum obtainable rates and may vary according to material types and screen sizes.
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM ALTO
PARTE:
3HP-HP-11P - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM
ALTO
Con sistema de control hidráulico
Nueva con garantía
Specifications:
1.With digital readout
2.Max. workpiece size: 300mm(W) x 250mm(H)
3.Distance from blade to conveyor Table: 3-125mm
4.Conveyor belt size: 285mm x 5470mm
5.Saw wheel dimension: Φ28" x
1"(Thickness)
6.Max. infeed speed: 16M/min OPTIONAL: 25M/min.
7.Saw blade size: 168" x 1"
8.Saw wheel motor: 20HP
...
AMXmachinery
BASTONERA 1/2" - 2"
PARTE # 1N-BTA-002 - BASTONERA - CAPACIDAD DE 1/2" - 2" DIAMETRONueva con garantiaCapacidad de 1/2" a 2" diametroMotor principal: 5 HP, 220V, 60 Hz, 3 fasesMotor alimentador: 1/2 HP, 220V, 60 Hz, 3 fases, A 4,500 RPMVelocidad alimentación: Variable, hasta 12 metros por minutoLa maquina incluye cabezal para 7/8” con cuchillas de acero rápidoLa maquina es nueva e incluye garantía de 6 meses en partes mecánicasLos dados para las diferentes medidas se venden por separadoMedidas totales: 120 ...
AMXmachinery
PART: 1AM-3010-E – ROLLER STAND - INFEED - OUTFEED - 120 CM (47”) LENGTH
PART:
1AM-3010-E – ROLLER STAND - INFEED - OUTFEED - 120 CM (47”) LENGTH
SIDE
ROLLER TABLES Use
with saws, planers, edgebanders, jointers, etc.120
cm (47”) length x 39 cm (15.35”) widthVariable
height 83 - 87 cm (32.5 - 34.25”)Support
large and heavy wood pieces and wood panelsAdjustable
heigh to pair with your current machines
7
galvanized steel ball bearing rollersOptional:
- Custom lengths
AMXmachinery
HORNO PARA CERAMICA, VIDRIO, METALES - EXTRA HEAVY DUTY - 118 LITROS
PARTE:
2PG-IGUANA - HORNO PARA CERAMICA, VIDRIO, METALES - EXTRA HEAVY DUTY - 118
LITROS240V, 1 Fase, 10,800 Watts, 45 AmpsMedidas interiores: 457 mm ancho x 457 mm fondo x 457 mm altoVolumen interior: 118.93 litrosMax. Temperatura: 1287 grados centígradosNuevo con garantíaPowered with reliable extra heavy-duty elements. This results in long element life, because the elements do not “struggle” to reach high temperatures. 10,800 watts heat the 18” wide, 18” deep, 22 ½” high interio...
