Descripción
PARTE: 2SB-FGZ-240-40 - ASTILLADORA PARA MADERA – DOBLE - DUAL - 75 & 60 HP
- MEJOR CALIDAD, PARA USO RUDO INDUSTRIAL CONTINUO
- MOTORES TEFC, 3/60/460/1800 CONECCION DIRECTA

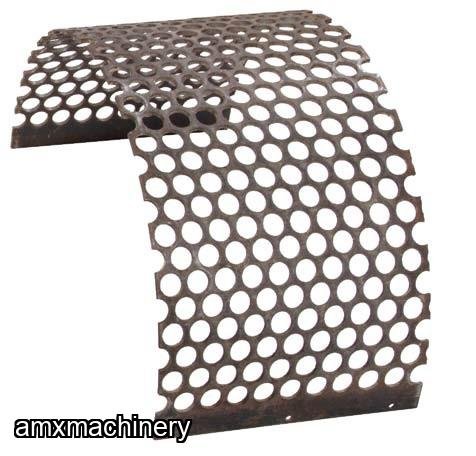

- 2 SCREENS INCLUIDAS
- ROTOR DE USO RUDO Y BALANCEADO
MATERIAL A PROCESAR:

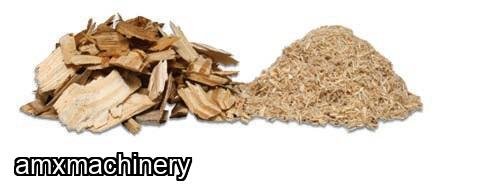

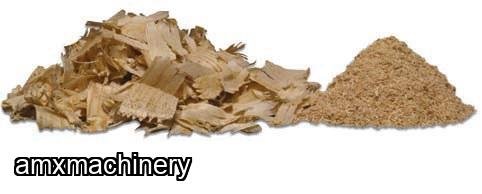

- DESPERDICIO DE CEPILLOS, ASTILLAS, ASERRADEROS, TROCERIA, ETC.
PRODUCTO FINAL:
- PELLETS, BRIQUETTES, COMBUSTIBLE PARA BOILERS, BIODIESEL, ESTABLOS PARA ANIMALES, ETC.
- DISPONIBLE CON UNA VARIEDAD DE TAMANOS DE SCREENS DESDE .020" A 3"
- VARIEDAD DE EXTRACTORES PARA MAXIMIZAR RESULTADOS
OPCIONALES:
- PAQUETE DE SEGURIDAD
- ARRANCADOR SUAVE DE MOTOR
- TRANSPORTADOR/ALIMENTADOR CON VIBRACION CON BASE DE SOPORTE
LA ASTILLADORA DUAL PRODUCE ASERRIN FINO Y EXTRAFINO EN 1 SOLA PASADA.
LA ASTILALDORA DUAL AHORRA ESPACIO Y MOVIMEINTOS
Model |
| Housing | Shaft Diameter | Rotor Width | Rotor Diameter | Bearings | Integral Fan System | Screen Area | Shaft Speed | Tip Speed |
240Z-80 | Upper Unit Lower Unit | 3/4” (20mm) 1/ 2” (12mm) | 3 1/4” (80mm) 3 1/4” (80mm) | 17 1/2” (440mm) 24” (610mm) | 24” (610mm) 24” (610mm) | 2 15/16” (70mm) 2 15/16” (70mm) | N/A 5000 CFM | 442 sq inches (2850 sq cm) 912 sq inches (5880 sq cm) | 3600 RPM 3600 RPM | 22600 22600 |
280Z-90 | Upper Unit Lower Unit | 3/4” (20mm) 3/ 4” (20mm) | 3 1/4” (80mm) 5” (130mm) | 24” (610mm) 36” (900mm) | 24” (610mm) 24” (610mm) | 2 15/16” (70mm) 3 7/16” (90mm) | N/A C/F | 624 sq inches (4140 sq cm) 1368 sq inches (8825 sq cm) | 3600 RPM 3600 RPM | 22600 22600 |
290Z-100 | Upper Unit Lower Unit | 1” (25mm) 1 ” (25mm) | 5” (130mm) 6 3/8” (160mm) | 36” (900mm) 48” (1220mm) | 24” (610mm) 24” (610mm) | 3 7/16” (90mm) 3 7/16” (90mm) | N/A C/F | 936 sq inches (6040 sq cm) 1824 sq inches (11780 sq cm) | 3600 RPM 3600 RPM | 22600 22600 |
