Descripción

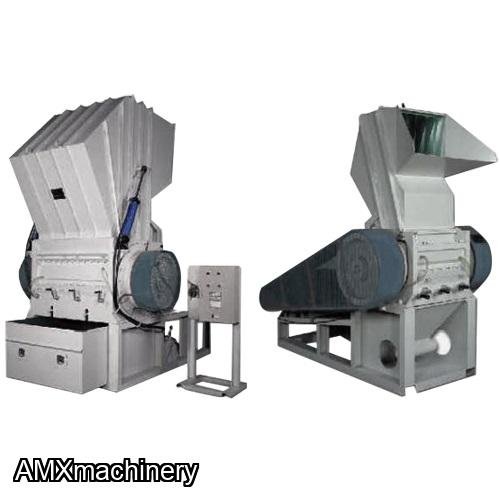

PARTE: 2TA-WG-4150 - ASTILLADORA - 41 PULGADAS
Features:
- A specially designed, powerful crusher for different materials such as wood, plastic, rubber, corn cobs, etc.
- Excellent wearing ability and impact-resistant for time & labor saving.
- Large busting capacity and easy feeding system.
- The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usage.
- Cutter head angle cutting design allows aggressive cutting rates & high speed shredding of waste.
- Movable screen for changing the size of chips and easy to clean-up.
- Energy efficient & quiet running industrial motor.
|
SPECIFICATIONS |
WG-2630 |
WG-4150 |
|
Entrance Capacity (L x W) |
26" x 12" |
41" x 12" |
|
Rotary Cutter |
6 sets |
12 sets |
|
Stationary Cutter |
4 sets |
|
|
Busting Capacity at 1/2" Chips |
1300 ~ 2600 (LBS/ Hour) |
1300 ~ 4000 (LBS/ Hour) |
|
Finish Chip Size |
3/4" (or other size) |
|
|
Main Motor |
30 HP |
50 HP |
|
Machine Sizes (L x W x H) |
82" x 52" x 79" |
90" x 70" x 98" |
|
N.W. |
3800 LBS |
6600 LBS |
