Descripción

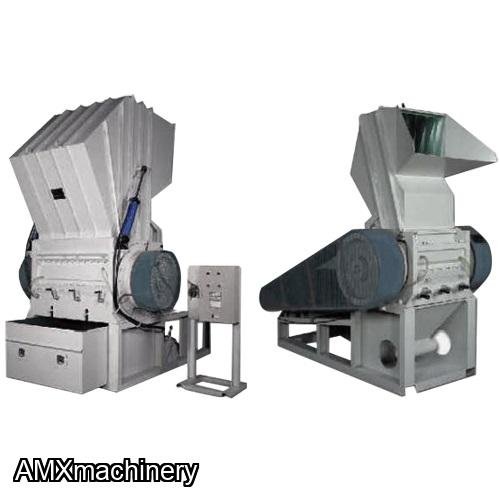

PARTE: 2TA-WG-1620 - ASTILLADORA - 16 PULGADAS
Features:
- A specially designed, powerful crusher for different materials such as wood, plastic, rubber, corn cob, etc.
- Excellent wearing ability and impact-resistant for time & labor saving.
- Large busting capacity and easy feeding system.
- The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usage.
- Cutter head angle cutting design allows aggressive cutting rates & high speed shredding of waste.
- Movable screen for changing the size of chips and easy to clean-up.
- Energy efficient & quiet running industrial motor.
|
SPECIFICATIONS |
WG-1620 |
|
Entrance Capacity (L x W) |
16" x 12" |
|
Rotary Cutter |
6 sets |
|
Stationary Cutter |
4 sets |
|
Busting Capacity at 1/2" Chips |
900 ~ 1500 LBS/ Hour |
|
Finish Chip Size (Custom Size with Order) |
3/4" |
|
Main Motor |
20 HP |
|
Machine Sizes (L x W x H) |
64" x 24" x 68" |
|
N.W. |
2700 LBS |
