Descripción

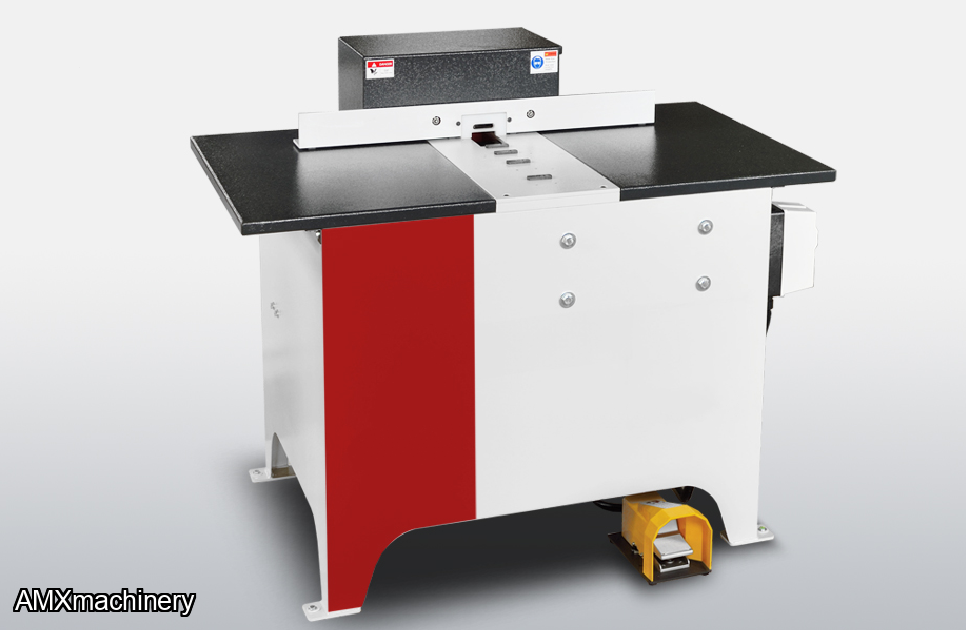

ARMADORA DE CAJONES PARTE: 2CK-JEN60
Is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching. With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.
- High production capacity of up to 220 drawers machined per hour.
- 57mm (2 ¼”) wide cutter head allows you to machine notches for a wide range of undermount drawer slides without needing to change heads or machine the component twice.

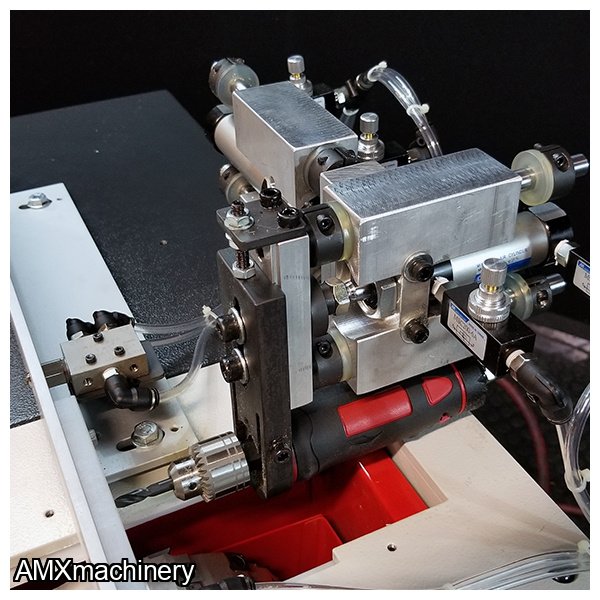

- Self-indexing drill unit for left or right drawer notching.
- Convenient foot pedal operation lets operator efficiently load and unload drawers for higher output.
- Pneumatic cutter & drill stroke by foot pedal operation.
- Cutter stroke and drill speed are adjustable for optimum finish results
- Drill will automatically position for both left and right drawer notches by activating a switch in the fence

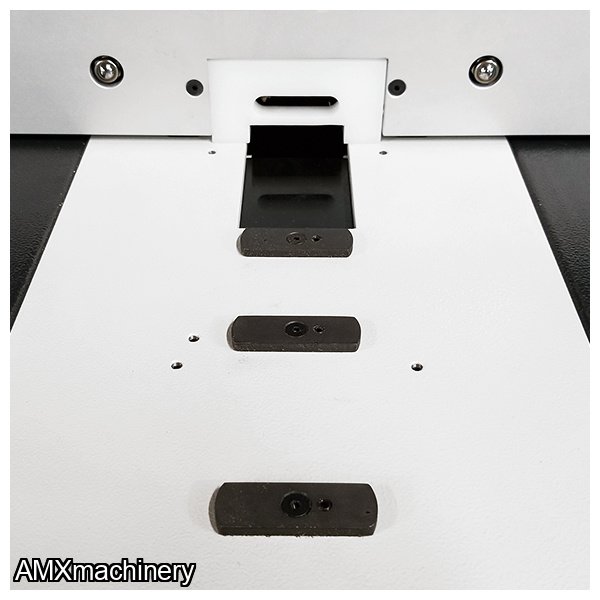

- Machine will not cycle unless a drawer is up against the switch for safe operation
- Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
- 2 ¼” (57mm) wide cutter allows for a wide range of undermount slides
- Comes with insert cutterhead with inserts and ¼” (6.3mm) solid carbide drill bit.
- Capable of notching up to 220 drawer boxes (both left and right) per hour.
Main cutter motor | 3 HP (230/3/60 or 460/3/60) | 2HP (230/1/60) | |
Notch dimensions | 2 ¼” (57mm) x 0.5” high | |
Cutterhead diameter | 10″ | |
Drill diameter | ¼” | |
Table size | 49″ x 22″ | |
Table height from floor | 32″ | |
Dust port | 2 x 4″ (1,340 CFM requirement) | |
Compressed air required | 90 – 100 PSI | |
Machine dimensions | 48” x 37 ¾” x 39 ¾” | |
Machine weight | 506 lbs. | |
Shipping dimensions | 53″ x 42″ x 44″ | |
Shipping weight | 612 lbs. | |
Electrical requirements | 230/3/60 = 9 amps | 230/1/60 = 10 amps 575/3/60 = 3.9 amps |
