PARTE: 2CK-DS400

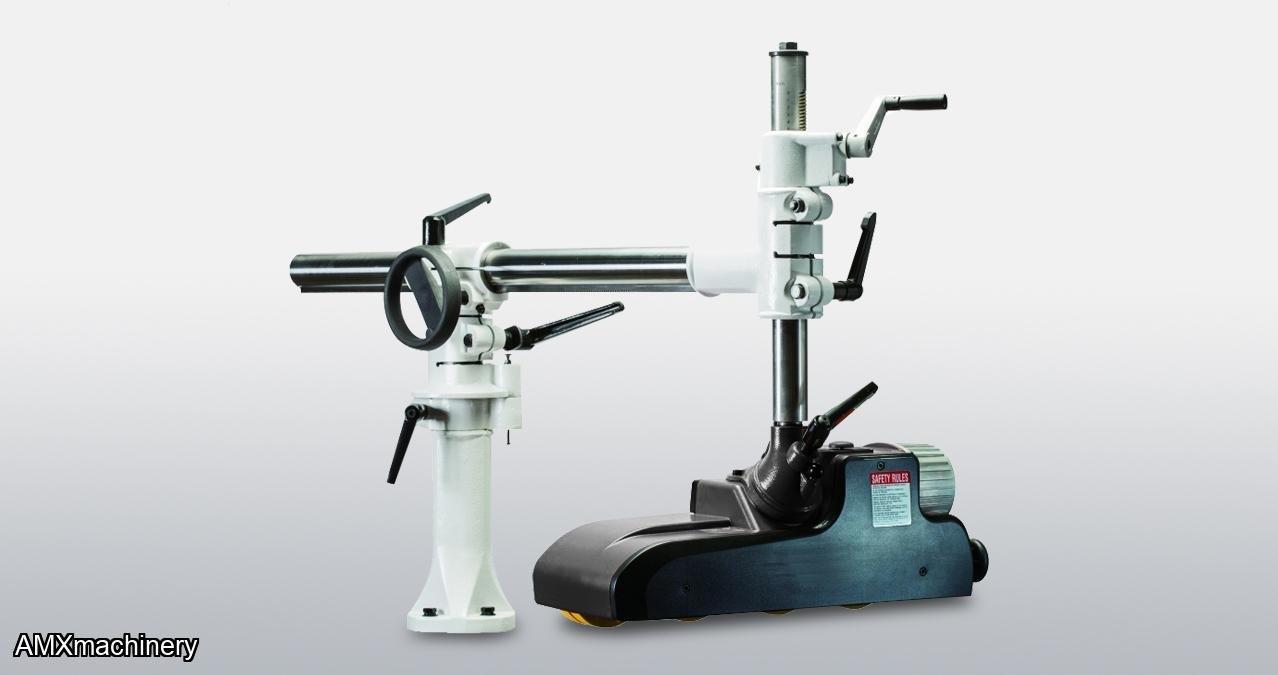

Is safe on consistent feeding unit for shaper, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a constant speed to produce flawlessly finished pieces. The brushless servo motor with electronic variable speed adjustment allows the operator full control for setting the optimum feed speed according to the specific job, Includes the SS03 Heavy Duty Smart Stand which features an extra-long support column and extension arm which allows for use of this mount and stand on larger woodworking machinery. The horizontal rotation also has a clutch and memory-lock, making quick cutter blade switches a safer and quicker task.
- High efficiency DC brushless servo motor
- High efficiency = more power, more torque!
- Saves +50% power output over other feeders of the same size
- Electronic variable feed speed adjustment for optimum cut quality

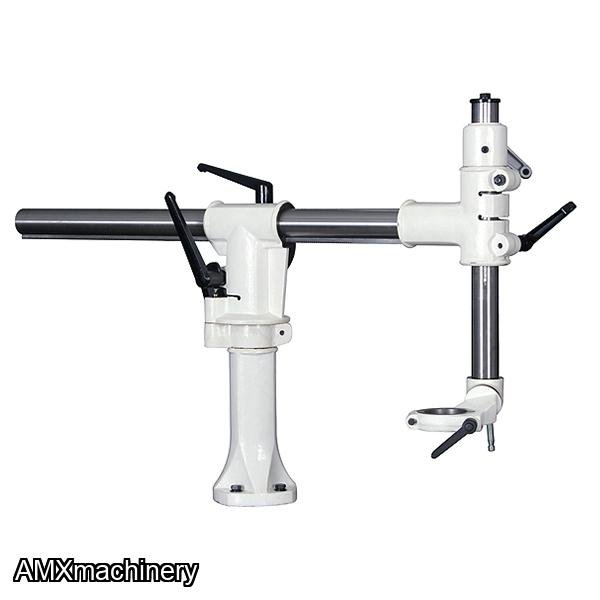

- Includes SS03 Heavy Duty Smart Stand with the following features
- 42” horizontal adjustment arm for even greater reach
- Front mounted vertical adjustment for added operator convenience
- Memo-locking allows for quick and accurate relocation of the feeder unit after adjusting it out of position
KEY ADVANTAGES

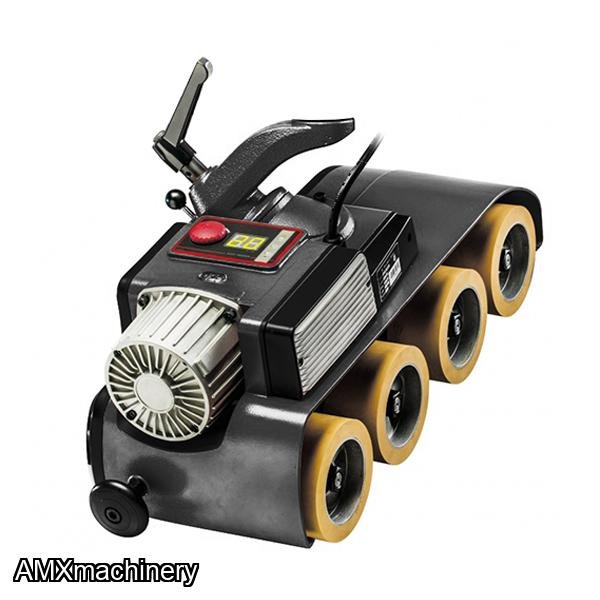

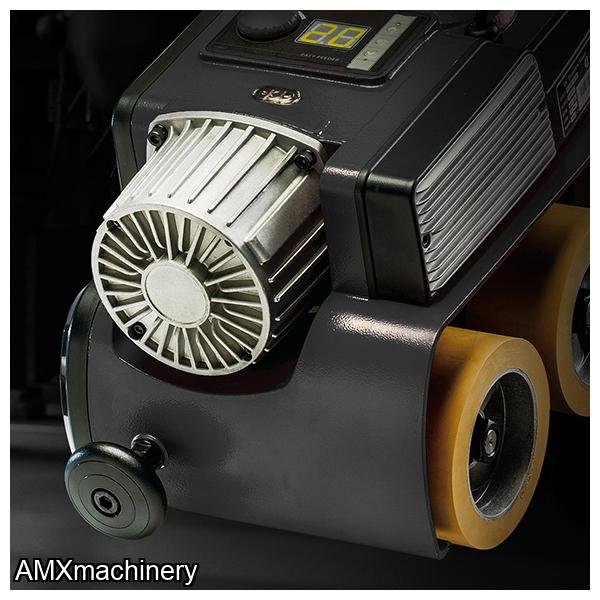

- 1/2 HP DC Brushless Servo Motor with electronic speed display

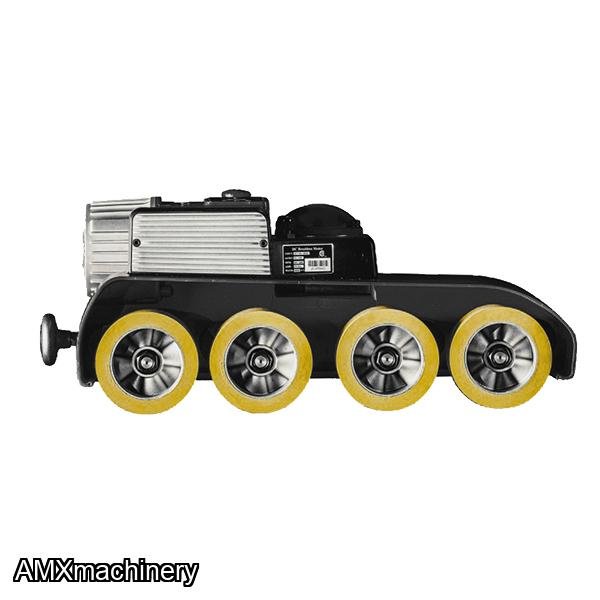

- (4) rubber feed rollers
- Variable speed 2-22 M/min (7-72 FPM)
- Forward/reverse feed

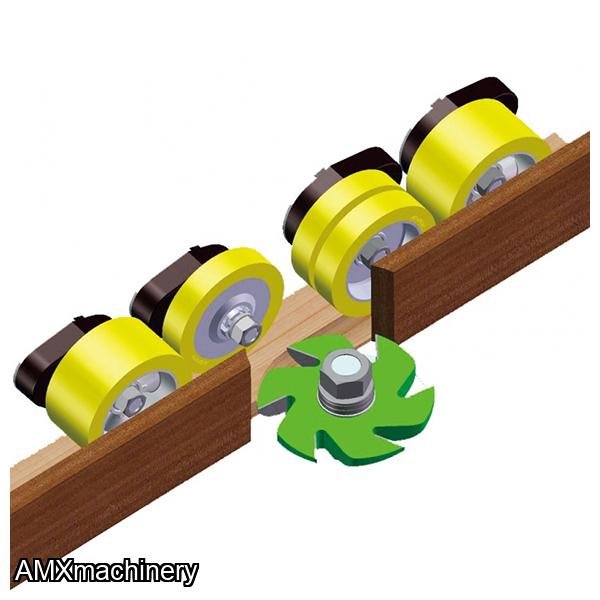

- Optional Dual Rollers for saw or cutter clearance
|
Horsepower / Rotation |
0.5HP(0.4KW),1 or 3PH; Forward/Reverse |
|
Range of Speeds (50Hz) (60Hz) |
2-22 M/Min (7-72 FPM) |
|
Rollers (Belts) |
Φ120 x 25 mm X 6 pcs |
|
(Φ4.8″ x 1″ x 6 pcs) / PC |
|
|
Roller Suspension |
18mm (3/4″) |
|
Net Weight |
23 + 41 + 10 Kg (51 + 91 + 22 Lb) |
|
Gross Weight |
25 + 43 + 11 Kg (55 + 95 + 24 Lb) |
|
Carton for Body |
686 × 326 × 316 mm (27″ × 12-3/4″ × 12-3/8″) |
|
Carton for Stand |
770 x 320 x 290 mm (30-3/8″ x 12-5/8″ x 11-1/2″) |
|
Carton for Overarm |
1080 x 60 x 60 mm (42-1/8″ x 2-3/8″ x 2-3/8″) |
